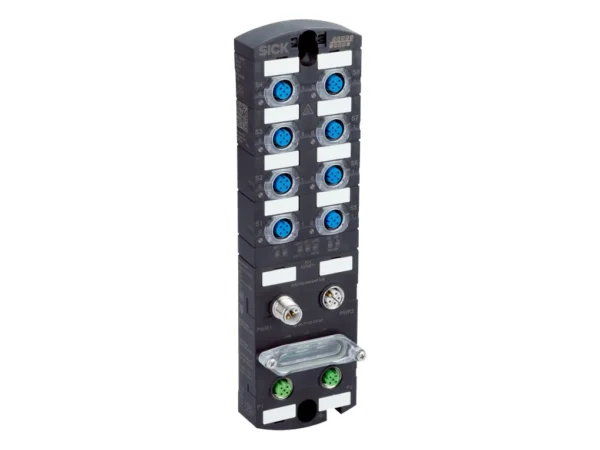

Home PLC & I/O SIG350-0004AP100 – 6076871 🔍 SIG350-0004AP100 – 6076871 ✉ Teklif Al Teklif Al Stok kodu: 6076871 Kategoriler: PLC & I/O Marka: SICK Açıklama Tecnichal data Features Product category IO-Link Master Supported products IO-Link Devices Binary switching sensors Binary actuators Further functions Web server integrated IIoT interface available (dual talk) Items supplied SIG350-0004AP100, Marking labels, quickstart Mechanics/electronics Connections IO-Link 8 x M12, 5-pin female connector, A-coded Power 1 x M12, 5-pin male connector, L-coded1 x M12, 5-pin female connector, L-coded Ethernet 2 x M12, 4-pin female connector, D-coded Power voltage supply Supply voltage 18 V DC … 30 V DC Current carrying capacity (PWR1, PWR2) max. ≤ 16 A, US ≤ 16 A, UA Current consumption ≤ 180 mA Voltage supply US (sensors) Total current (S1 … S8) ≤ 10 A Voltage supply (pin 1) 2 A Output current (DO) (pin 2 + pin 4) 2 A Current carrying capacity per port max. 4 A Voltage supply UA (actuators) Total current (S1 … S8) ≤ 10 A Voltage supply (pin 2) 2 A Current carrying capacity per port max. 4 A Digital inputs Number 16, configurable Input characteristics EN 61131-2 type 1 and type 3 Type PNP Filter time 0 ms … 15 ms Delay time at signal change 2 ms … 5 ms Circuit protection Short-circuit protected (MOSFET with current measurement) Digital outputs Number 16, configurable Type PNP Switching frequency ≤ 50 Hz Circuit protection Short-circuit protected (MOSFET with current measurement) Optical indicators 8 LED green/yellow/red (Communication pin 4) 8 LED yellow/red (Communication pin 2) 1 LED green/red (device status) 1 LED green/yellow (Network status) 1 LED green (PLC operational status) 1 LED red (PLC configuration) 3 LED green (PLC communication) 2 LED green/red (power supply) Enclosure rating IP67 (In fastened condition) Protection class III Contamination rating 2 Housing material Plastic (Valox 553) Housing color Dark gray Weight 486 g Dimensions (L x W x H) 225 mm x 63 mm x 37.4 mm UL File No. E238799 Communication interface IO-Link ✔ , V1.1 Number of ports 8 Port Class A/B Data transmission rate COM1, COM2, COM3 Additional features Data Storage Ethernet ✔ PROFINET ✔ Number of ports 2 Specification V2.3 (RT, IRT forwarding) Conformity class C Network load class III Data transmission rate 10/100 MBit/s Cycle time ≥ 1 ms Addressing DCP, rotary switch Factory setting Static IP address Additional features Fast start up (FSU) REST API ✔ Specification JSON integration for IO-Link version (V1.0.0) MQTT ✔ Specification JSON integration for IO-Link version (V1.0.0) OPC UA ✔ Specification IO-Link Companion Specification Version (V1.0) Operator interfaces Web server integrated Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Electromagnetic compatibility (EMC) EN 61000-6-2:2016 EN 61000-6-4:2020 Shock load EN 60068-2-27 Classifications eCl@ss 5.0 27242208 eCl@ss 5.1.4 27242608 eCl@ss 6.0 27242608 eCl@ss 6.2 27242608 eCl@ss 7.0 27242608 eCl@ss 8.0 27242608 eCl@ss 8.1 27242608 eCl@ss 9.0 27242608 eCl@ss 10.0 27242608 eCl@ss 11.0 27242608 eCl@ss 12.0 27242608 ETIM 5.0 EC001604 ETIM 6.0 EC001604 ETIM 7.0 EC001604 ETIM 8.0 EC001604 UNSPSC 16.0901 32151705 İlgili ürünler POINT I/O Profibus-DP Network Adapter – 1734-APBALLEN BRADLEYPLC & I/O ₺8.500,00 Ürüne Git MicroLogix 1400 32 Point Controller – 1766-L32BXBAALLEN BRADLEYPLC & I/O ₺8.500,00 Ürüne Git MicroLogix 8 Point Digital Input Module – 1762-IQ8ALLEN BRADLEYPLC & I/O ₺8.500,00 Ürüne Git ControlLogix 3 Axis SERCOS Servo Module – 1756-M03SEALLEN BRADLEYPLC & I/O ₺8.500,00 Ürüne Git
Tecnichal data Features Product category IO-Link Master Supported products IO-Link Devices Binary switching sensors Binary actuators Further functions Web server integrated IIoT interface available (dual talk) Items supplied SIG350-0004AP100, Marking labels, quickstart Mechanics/electronics Connections IO-Link 8 x M12, 5-pin female connector, A-coded Power 1 x M12, 5-pin male connector, L-coded1 x M12, 5-pin female connector, L-coded Ethernet 2 x M12, 4-pin female connector, D-coded Power voltage supply Supply voltage 18 V DC … 30 V DC Current carrying capacity (PWR1, PWR2) max. ≤ 16 A, US ≤ 16 A, UA Current consumption ≤ 180 mA Voltage supply US (sensors) Total current (S1 … S8) ≤ 10 A Voltage supply (pin 1) 2 A Output current (DO) (pin 2 + pin 4) 2 A Current carrying capacity per port max. 4 A Voltage supply UA (actuators) Total current (S1 … S8) ≤ 10 A Voltage supply (pin 2) 2 A Current carrying capacity per port max. 4 A Digital inputs Number 16, configurable Input characteristics EN 61131-2 type 1 and type 3 Type PNP Filter time 0 ms … 15 ms Delay time at signal change 2 ms … 5 ms Circuit protection Short-circuit protected (MOSFET with current measurement) Digital outputs Number 16, configurable Type PNP Switching frequency ≤ 50 Hz Circuit protection Short-circuit protected (MOSFET with current measurement) Optical indicators 8 LED green/yellow/red (Communication pin 4) 8 LED yellow/red (Communication pin 2) 1 LED green/red (device status) 1 LED green/yellow (Network status) 1 LED green (PLC operational status) 1 LED red (PLC configuration) 3 LED green (PLC communication) 2 LED green/red (power supply) Enclosure rating IP67 (In fastened condition) Protection class III Contamination rating 2 Housing material Plastic (Valox 553) Housing color Dark gray Weight 486 g Dimensions (L x W x H) 225 mm x 63 mm x 37.4 mm UL File No. E238799 Communication interface IO-Link ✔ , V1.1 Number of ports 8 Port Class A/B Data transmission rate COM1, COM2, COM3 Additional features Data Storage Ethernet ✔ PROFINET ✔ Number of ports 2 Specification V2.3 (RT, IRT forwarding) Conformity class C Network load class III Data transmission rate 10/100 MBit/s Cycle time ≥ 1 ms Addressing DCP, rotary switch Factory setting Static IP address Additional features Fast start up (FSU) REST API ✔ Specification JSON integration for IO-Link version (V1.0.0) MQTT ✔ Specification JSON integration for IO-Link version (V1.0.0) OPC UA ✔ Specification IO-Link Companion Specification Version (V1.0) Operator interfaces Web server integrated Ambient data Ambient operating temperature –25 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Electromagnetic compatibility (EMC) EN 61000-6-2:2016 EN 61000-6-4:2020 Shock load EN 60068-2-27 Classifications eCl@ss 5.0 27242208 eCl@ss 5.1.4 27242608 eCl@ss 6.0 27242608 eCl@ss 6.2 27242608 eCl@ss 7.0 27242608 eCl@ss 8.0 27242608 eCl@ss 8.1 27242608 eCl@ss 9.0 27242608 eCl@ss 10.0 27242608 eCl@ss 11.0 27242608 eCl@ss 12.0 27242608 ETIM 5.0 EC001604 ETIM 6.0 EC001604 ETIM 7.0 EC001604 ETIM 8.0 EC001604 UNSPSC 16.0901 32151705
