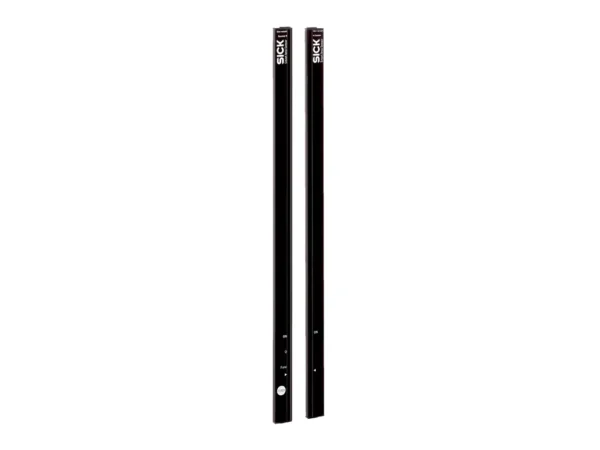

Home Işık Perdeleri SGS4-S060N7PS2W01 – 1209875 🔍 SGS4-S060N7PS2W01 – 1209875 ✉ Teklif Al Teklif Al Stok kodu: 1209875 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Sensor principle Sender/receiver Minimum detectable object (MDO) Cross beam, 25 mm Beam separation 40 mm Optical light exit Slim Number of beams 16 Detection height 600 mm Parameterization None Cross beam/parallel beam Cross beam active Output 1 Output 1 active, if light beam interrupted Automatic teach Automatic teach inactive Alignment aid Without alignment aid Muting function Muting function deactivated Mechanics/electronics Light source Infrared light Wave length 950 nm Supply voltage Vs DC24 V, ± 20 % Power consumption receiver ≤ 70 mA Ripple < 5 Vpp Output current Imax. 100 mA Output load, capacitive 100 nF Output load, Inductive 1 H Initialization time 1 s Switching output NPN Inputs Teach-in input (receiver) Test input (sender) HIGH = 10 V … 30 V / LOW = < 5 V Dimensions (W x H x D) 36.5 mm x 672.4 mm x 12.4 mm Connection type Cable with M8 male connector, 4-pin Housing material PMMA Indication LED Synchronization Optical Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 80 g Pulse frequency 500 kHz Aluminum stabilizer With stabilizer Performance Maximum range 10 m Minimum range Cross beam: ≥ 0.3 m Operating range 7 m Response time Cross beam, 57 ms Ambient data Shock resistance 10 g / DIN EN 60068-2-29 / 16 ms Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 68-2-6) EMC EN 60947-5-2 Ambient light immunity Direct: 100,000 lx Indirect: 150,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528 İlgili ürünler Mounting brackets, Safety Light Curtain, two clamps for one stick, side and backside mounting – 450L-AM-SMALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1350 – 14mm, Product line E, Type4/Cat.4, 14mm Finger resolution, Protective height: 1350 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4FL1350YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Corner Mirror, Glass, Range 4m, Height 600mm – 440L-AM0750600ALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1050 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1050 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1050YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Sensor principle Sender/receiver Minimum detectable object (MDO) Cross beam, 25 mm Beam separation 40 mm Optical light exit Slim Number of beams 16 Detection height 600 mm Parameterization None Cross beam/parallel beam Cross beam active Output 1 Output 1 active, if light beam interrupted Automatic teach Automatic teach inactive Alignment aid Without alignment aid Muting function Muting function deactivated Mechanics/electronics Light source Infrared light Wave length 950 nm Supply voltage Vs DC24 V, ± 20 % Power consumption receiver ≤ 70 mA Ripple < 5 Vpp Output current Imax. 100 mA Output load, capacitive 100 nF Output load, Inductive 1 H Initialization time 1 s Switching output NPN Inputs Teach-in input (receiver) Test input (sender) HIGH = 10 V … 30 V / LOW = < 5 V Dimensions (W x H x D) 36.5 mm x 672.4 mm x 12.4 mm Connection type Cable with M8 male connector, 4-pin Housing material PMMA Indication LED Synchronization Optical Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 80 g Pulse frequency 500 kHz Aluminum stabilizer With stabilizer Performance Maximum range 10 m Minimum range Cross beam: ≥ 0.3 m Operating range 7 m Response time Cross beam, 57 ms Ambient data Shock resistance 10 g / DIN EN 60068-2-29 / 16 ms Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 68-2-6) EMC EN 60947-5-2 Ambient light immunity Direct: 100,000 lx Indirect: 150,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528
