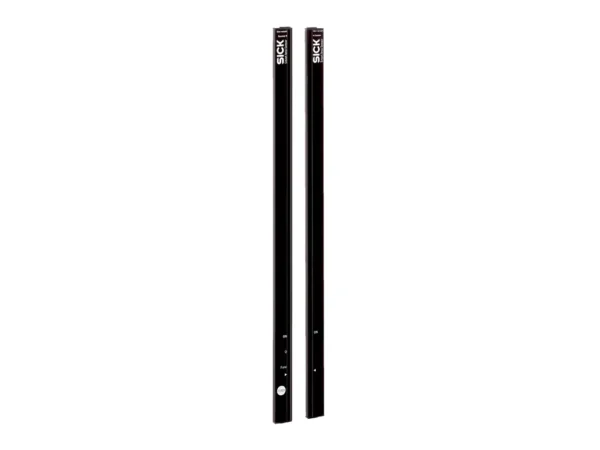

Home Işık Perdeleri SGS4-F060P3TS1W01 – 1219158 🔍 SGS4-F060P3TS1W01 – 1219158 ✉ Teklif Al Teklif Al Stok kodu: 1219158 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Sensor principle Sender/receiver Minimum detectable object (MDO) Cross beam, 25 mm Beam separation 40 mm Optical light exit Flat Number of beams 16 Detection height 600 mm Parameterization None Cross beam/parallel beam Cross beam active Output 1 Output 1 active, if light beam interrupted Automatic teach Automatic teach inactive Alignment aid Without alignment aid Muting function Muting function deactivated Mechanics/electronics Light source Infrared light Wave length 950 nm Supply voltage Vs DC24 V, ± 20 % Power consumption receiver ≤ 70 mA Output current Imax. 100 mA Output load, capacitive 100 nF Output load, Inductive 1 H Initialization time 1 s Switching output PNP Inputs Teach-in input (receiver) Test input (sender) HIGH = 10 V … 30 V / LOW = < 5 V Dimensions (W x H x D) 25 mm x 672.4 mm x 8.2 mm Connection type Cable with M12 male connector, 4-pin Housing material PMMA Indication LED Synchronization Optical Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 80 g Pulse frequency 500 kHz Aluminum stabilizer Without stabilizer Performance Maximum range 4 m Minimum range Cross beam: ≥ 0.3 m Operating range 3 m Response time Cross beam, 57 ms Ambient data Shock resistance 10 g / DIN EN 60068-2-29 / 16 ms Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 68-2-6) EMC EN 60947-5-2 Ambient light immunity Direct: 100,000 lx Indirect: 150,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528 İlgili ürünler Corner Mirror, Glass, Range 4m, Height 600mm – 440L-AM0750600ALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Mounting brackets, Safety Light Curtain, two clamps for one stick, top and bottom mounting – 450L-AM-TBMALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git GuardShield LineE 1800 – 14mm Transceiver – 450L-E4FL1800YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Mounting Stand, Cantilever, 500mm – 445L-AMSTDMUTALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Sensor principle Sender/receiver Minimum detectable object (MDO) Cross beam, 25 mm Beam separation 40 mm Optical light exit Flat Number of beams 16 Detection height 600 mm Parameterization None Cross beam/parallel beam Cross beam active Output 1 Output 1 active, if light beam interrupted Automatic teach Automatic teach inactive Alignment aid Without alignment aid Muting function Muting function deactivated Mechanics/electronics Light source Infrared light Wave length 950 nm Supply voltage Vs DC24 V, ± 20 % Power consumption receiver ≤ 70 mA Output current Imax. 100 mA Output load, capacitive 100 nF Output load, Inductive 1 H Initialization time 1 s Switching output PNP Inputs Teach-in input (receiver) Test input (sender) HIGH = 10 V … 30 V / LOW = < 5 V Dimensions (W x H x D) 25 mm x 672.4 mm x 8.2 mm Connection type Cable with M12 male connector, 4-pin Housing material PMMA Indication LED Synchronization Optical Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 80 g Pulse frequency 500 kHz Aluminum stabilizer Without stabilizer Performance Maximum range 4 m Minimum range Cross beam: ≥ 0.3 m Operating range 3 m Response time Cross beam, 57 ms Ambient data Shock resistance 10 g / DIN EN 60068-2-29 / 16 ms Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 68-2-6) EMC EN 60947-5-2 Ambient light immunity Direct: 100,000 lx Indirect: 150,000 lx Ambient operating temperature –25 °C … +55 °C Ambient temperature, storage –25 °C … +70 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528
