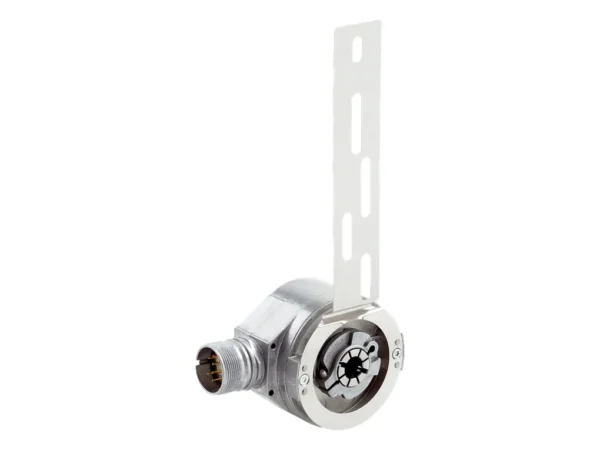

Home Enkoderler SFM60-HNAT2K02 – 1073085 🔍 SFM60-HNAT2K02 – 1073085 ✉ Teklif Al Teklif Al Stok kodu: 1073085 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Sine/cosine periods per revolution 1,024 Number of the absolute ascertainable revolutions 4,096 Total number of steps 134,217,728 Measuring step 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling Differential non-linearity ± 7 ″, Non-linearity within a sine/cosine period Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced Available memory area 1,792 Byte System accuracy ± 52 ″ Interfaces Type of code for the absolute value Binary Code sequence Rising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Current consumption < 80 mA (without load) Output frequency for sine/cosine signals ≤ 200 kHz MTTF: mean time to dangerous failure 230 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Shaft diameter 1/2″ Shaft material Stainless steel Flange material Zinc diecast Housing material Aluminum die cast Flange type / stator coupling Stator coupling Dimensions See dimensional drawing Weight ≤ 0.25 kg Moment of inertia of the rotor 40 gcm² Operating speed ≤ 9,000 min⁻¹ Angular acceleration ≤ 500,000 rad/s² Operating torque 0.6 Ncm (+20 °C) Start up torque + 0.8 Ncm (+20 °C) Permissible movement static ± 0.3 mm, ± 0.5 mm radial, axial Permissible movement dynamic ± 0.1 mm radial ± 0.2 mm axial Life of ball bearings 3.6 x 109 revolutions Ambient data Operating temperature range –40 °C … +115 °C Storage temperature range –40 °C … +115 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, with mating connector inserted (IEC 60529) Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Sine/cosine periods per revolution 1,024 Number of the absolute ascertainable revolutions 4,096 Total number of steps 134,217,728 Measuring step 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling Differential non-linearity ± 7 ″, Non-linearity within a sine/cosine period Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced Available memory area 1,792 Byte System accuracy ± 52 ″ Interfaces Type of code for the absolute value Binary Code sequence Rising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Current consumption < 80 mA (without load) Output frequency for sine/cosine signals ≤ 200 kHz MTTF: mean time to dangerous failure 230 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Shaft diameter 1/2″ Shaft material Stainless steel Flange material Zinc diecast Housing material Aluminum die cast Flange type / stator coupling Stator coupling Dimensions See dimensional drawing Weight ≤ 0.25 kg Moment of inertia of the rotor 40 gcm² Operating speed ≤ 9,000 min⁻¹ Angular acceleration ≤ 500,000 rad/s² Operating torque 0.6 Ncm (+20 °C) Start up torque + 0.8 Ncm (+20 °C) Permissible movement static ± 0.3 mm, ± 0.5 mm radial, axial Permissible movement dynamic ± 0.1 mm radial ± 0.2 mm axial Life of ball bearings 3.6 x 109 revolutions Ambient data Operating temperature range –40 °C … +115 °C Storage temperature range –40 °C … +115 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, with mating connector inserted (IEC 60529) Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
