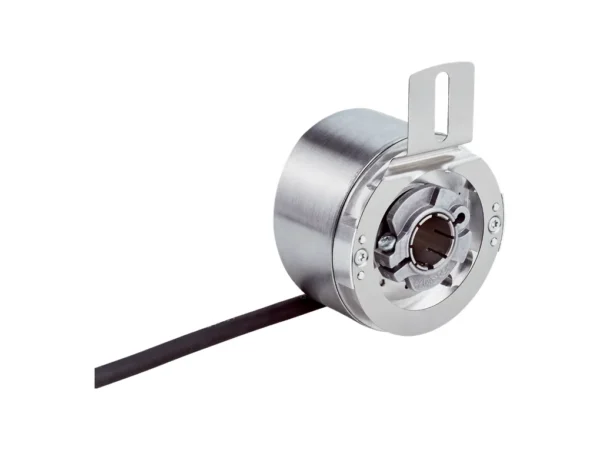

Home Enkoderler SFM60-HMKT1K02 – 1105586 🔍 SFM60-HMKT1K02 – 1105586 ✉ Teklif Al Teklif Al Stok kodu: 1105586 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Sine/cosine periods per revolution 1,024 Number of the absolute ascertainable revolutions 4,096 Total number of steps 134,217,728 Measuring step 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling Differential non-linearity ± 7 ″, Non-linearity within a sine/cosine period Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced Available memory area 1,792 Byte System accuracy ± 52 ″ Interfaces Type of code for the absolute value Binary Code sequence Rising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Current consumption < 80 mA (without load) Output frequency for sine/cosine signals ≤ 200 kHz MTTF: mean time to dangerous failure 230 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Shaft diameter 12 mm Shaft material Stainless steel Flange material Zinc diecast Housing material Aluminum die cast Flange type / stator coupling Stator coupling Dimensions See dimensional drawing Weight ≤ 0.25 kg Moment of inertia of the rotor 40 gcm² Operating speed ≤ 9,000 min⁻¹ Angular acceleration ≤ 500,000 rad/s² Operating torque 0.6 Ncm (+20 °C) Start up torque + 0.8 Ncm (+20 °C) Permissible movement static ± 0.3 mm, ± 0.5 mm radial, axial Permissible movement dynamic ± 0.1 mm radial ± 0.2 mm axial Life of ball bearings 3.6 x 109 revolutions Ambient data Operating temperature range –40 °C … +115 °C Storage temperature range –40 °C … +115 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, with mating connector inserted (IEC 60529) Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP12BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1746-HSCEALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-IKALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Sine/cosine periods per revolution 1,024 Number of the absolute ascertainable revolutions 4,096 Total number of steps 134,217,728 Measuring step 0.3 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity Typ. ± 45 ″, Error limits for evaluating sine/cosine period, without mechanical tension of the stator coupling Differential non-linearity ± 7 ″, Non-linearity within a sine/cosine period Operating speed ≤ 6,000 min⁻¹, up to which the absolute position can be reliably produced Available memory area 1,792 Byte System accuracy ± 52 ″ Interfaces Type of code for the absolute value Binary Code sequence Rising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Cable, 8-wire (4 x 2 x 0.15 mm²), radial, 1.5 m Supply voltage 7 V DC … 12 V DC Recommended supply voltage 8 V DC Current consumption < 80 mA (without load) Output frequency for sine/cosine signals ≤ 200 kHz MTTF: mean time to dangerous failure 230 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Shaft diameter 12 mm Shaft material Stainless steel Flange material Zinc diecast Housing material Aluminum die cast Flange type / stator coupling Stator coupling Dimensions See dimensional drawing Weight ≤ 0.25 kg Moment of inertia of the rotor 40 gcm² Operating speed ≤ 9,000 min⁻¹ Angular acceleration ≤ 500,000 rad/s² Operating torque 0.6 Ncm (+20 °C) Start up torque + 0.8 Ncm (+20 °C) Permissible movement static ± 0.3 mm, ± 0.5 mm radial, axial Permissible movement dynamic ± 0.1 mm radial ± 0.2 mm axial Life of ball bearings 3.6 x 109 revolutions Ambient data Operating temperature range –40 °C … +115 °C Storage temperature range –40 °C … +115 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65, with mating connector inserted (IEC 60529) Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
