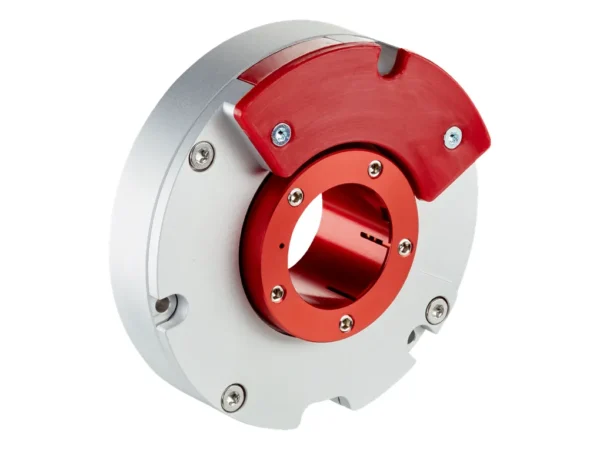

Home Akış (Flow) Sensörleri SEM70-HN025AK22 – 1074669 🔍 SEM70-HN025AK22 – 1074669 ✉ Teklif Al Teklif Al Stok kodu: 1074669 Kategoriler: Akış (Flow) Sensörleri Marka: SICK Açıklama Tecnichal data Performance Sine/cosine periods per revolution 32 Number of the absolute ascertainable revolutions 4,096 Total number of steps 4,194,304 Measuring step 10 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity ± 100 ″ Differential non-linearity ± 55 ″ Latency 25 µs Available memory area 2,048 Byte System accuracy ± 155 ″ Interfaces Type of code for the absolute value Binary Code sequence Rising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Male connector, 8-pin Supply voltage 7 V DC … 12 V DC Warm-up time voltage ramp Max. 180 ms Recommended supply voltage 11 V DC Current consumption ≤ 150 mA MTTF: mean time to dangerous failure 155 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Shaft diameter 25 mm Dimensions See dimensional drawing Weight ≤ 0.13 kg Moment of inertia of the rotor 60 gcm² Operating speed 8,500 min⁻¹, up to which the absolute position can be reliably produced Angular acceleration ≤ 50,000 rad/s² Permissible radial shaft movement ± 0.15 mm Permissible axial shaft movement ± 0.4 mm Permissible movement static ± 0.3 mm Permissible movement dynamic ± 0.1 mm Ambient data Operating temperature range –30 °C … +115 °C Storage temperature range –40 °C … +125 °C, without package Relative humidity/condensation 85 %, Condensation not permitted Resistance to shocks 100 g, 10 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 50 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-4 (Class A) Enclosure rating IP40, with mating connector inserted and closed cover (IEC 60529) Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler FUM-H025F1MD80000 – 1082034SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FTMG-ISD25AXX – 1100213SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1GE50000 – 1082028SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1NE50000 – 1082030SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Performance Sine/cosine periods per revolution 32 Number of the absolute ascertainable revolutions 4,096 Total number of steps 4,194,304 Measuring step 10 ″ For interpolation of the sine/cosine signals with, e. g., 12 bits Integral non-linearity ± 100 ″ Differential non-linearity ± 55 ″ Latency 25 µs Available memory area 2,048 Byte System accuracy ± 155 ″ Interfaces Type of code for the absolute value Binary Code sequence Rising, For clockwise shaft rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE® Electrical data Connection type Male connector, 8-pin Supply voltage 7 V DC … 12 V DC Warm-up time voltage ramp Max. 180 ms Recommended supply voltage 11 V DC Current consumption ≤ 150 mA MTTF: mean time to dangerous failure 155 years (EN ISO 13849) Mechanical data Shaft version Through hollow shaft Shaft diameter 25 mm Dimensions See dimensional drawing Weight ≤ 0.13 kg Moment of inertia of the rotor 60 gcm² Operating speed 8,500 min⁻¹, up to which the absolute position can be reliably produced Angular acceleration ≤ 50,000 rad/s² Permissible radial shaft movement ± 0.15 mm Permissible axial shaft movement ± 0.4 mm Permissible movement static ± 0.3 mm Permissible movement dynamic ± 0.1 mm Ambient data Operating temperature range –30 °C … +115 °C Storage temperature range –40 °C … +125 °C, without package Relative humidity/condensation 85 %, Condensation not permitted Resistance to shocks 100 g, 10 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 50 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2 and EN 61000-6-4 (Class A) Enclosure rating IP40, with mating connector inserted and closed cover (IEC 60529) Classifications eCl@ss 5.0 27270590 eCl@ss 5.1.4 27270590 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270590 eCl@ss 8.0 27270590 eCl@ss 8.1 27270590 eCl@ss 9.0 27270590 eCl@ss 10.0 27273805 eCl@ss 11.0 27273901 eCl@ss 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
