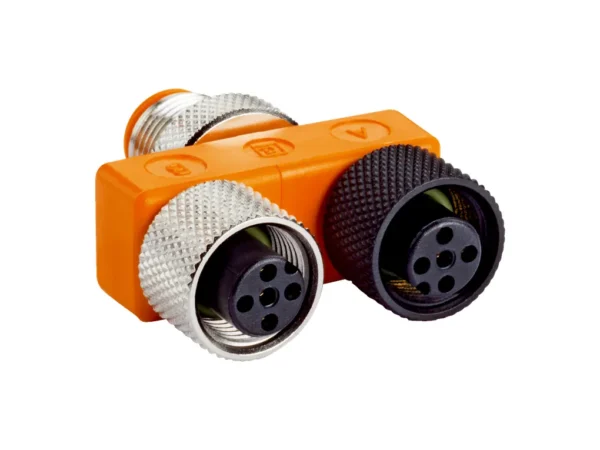

Home Diğer (Montaj / Aksesuar) SBO-02C12-SF – 6041320 🔍 SBO-02C12-SF – 6041320 ✉ Teklif Al Teklif Al Stok kodu: 6041320 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Technical specifications Accessory family T-junctions Connection type head A Male connector, M12, 5-pin, A-coded Connection type head B Female connector, M12, 5-pin, A-coded Connection type head C Female connector, M12, 5-pin, A-coded Conductor cross section 0.14 mm² Housing material TPU Connector material head A TPU Connector material head C TPU Housing color Orange Locking nut material CuZn, nickel-plated brass Material knurled screw head A Nickel-plated brass Material knurled screw head C Nickel-plated brass Shielding, head Unshielded Reference voltage ≤ 36 V DC Current loading 4 A Ambient operating temperature –25 °C … +90 °C Enclosure rating IP67 Ambient operating temperature Head –25 °C … +90 °C Classifications ECLASS 5.0 27279201 ECLASS 5.1.4 27279201 ECLASS 6.0 27279201 ECLASS 6.2 27279201 ECLASS 7.0 27279201 ECLASS 8.0 27279201 ECLASS 8.1 27279201 ECLASS 9.0 27440108 ECLASS 10.0 27440108 ECLASS 11.0 27440108 ECLASS 12.0 27440108 ETIM 5.0 EC002585 ETIM 6.0 EC002585 ETIM 7.0 EC002585 ETIM 8.0 EC002585 UNSPSC 16.0901 31163032 İlgili ürünler IE-SFP/1250-ED SSLX-SM1310-SC – 808-38221AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP+-10G-ELR-IT, 1310nm, SM, 20km – 40 8 – SFP-XSM-LCI-20KAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 100Base-T RJ45 SFP Module w/Wide Temp – SFP-FTX-RJ45I-AEAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 1000Base-EZX Singlemode SFP (110km) – 20 – SFP-GZX/LCI-110EAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Technical specifications Accessory family T-junctions Connection type head A Male connector, M12, 5-pin, A-coded Connection type head B Female connector, M12, 5-pin, A-coded Connection type head C Female connector, M12, 5-pin, A-coded Conductor cross section 0.14 mm² Housing material TPU Connector material head A TPU Connector material head C TPU Housing color Orange Locking nut material CuZn, nickel-plated brass Material knurled screw head A Nickel-plated brass Material knurled screw head C Nickel-plated brass Shielding, head Unshielded Reference voltage ≤ 36 V DC Current loading 4 A Ambient operating temperature –25 °C … +90 °C Enclosure rating IP67 Ambient operating temperature Head –25 °C … +90 °C Classifications ECLASS 5.0 27279201 ECLASS 5.1.4 27279201 ECLASS 6.0 27279201 ECLASS 6.2 27279201 ECLASS 7.0 27279201 ECLASS 8.0 27279201 ECLASS 8.1 27279201 ECLASS 9.0 27440108 ECLASS 10.0 27440108 ECLASS 11.0 27440108 ECLASS 12.0 27440108 ETIM 5.0 EC002585 ETIM 6.0 EC002585 ETIM 7.0 EC002585 ETIM 8.0 EC002585 UNSPSC 16.0901 31163032
