Name: Allen Bradley 100S-C60KF14BC | Kontaktör | Royal Endüstriyel
Brand: ALLEN BRADLEY
SKU: 100S-C60KF14BC
Price: 2200.00 TRY
Availability: InStock

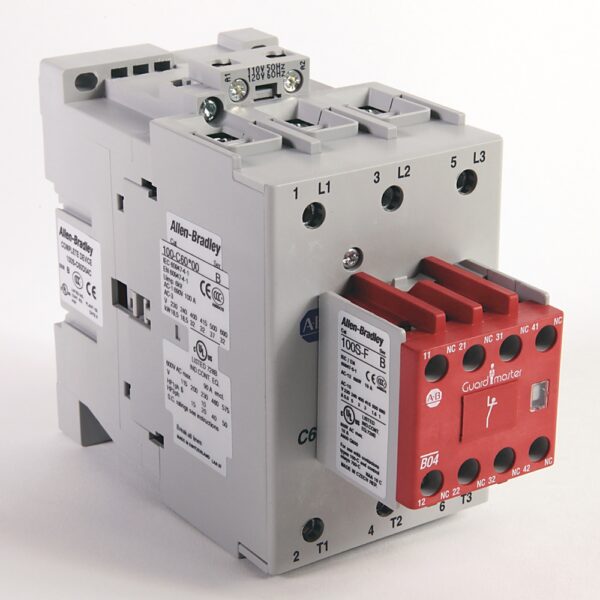

Safety Contactor, 60 A, 230V 50/60 Hz, 230V AC 50/60 Hz, 3 Normally Open Power Poles, 1 NOC & 4 NCC, Line Side Coil Termination, Bifuracated Contact – 100S-C60KF14BC

✉ Teklif Al

Teklif Al

Stok kodu: 100S-C60KF14BC Kategoriler: Kontaktörler Marka: ALLEN BRADLEY

Technical Specs

Specifications
Contact Configuration:1 N.O. 4 N.C.
Special Features:Bifurcated Contact
3-Phase kW (50 Hz) 230V Rating:18.5
3-Phase kW (50 Hz) 400V/415V Rating:32
3-Phase kW (50 Hz) 500V Rating:37
3-Phase kW (50 Hz) 690V Rating:32
1-Phase HP (60 Hz) 230V Rating:10
3-Phase HP (60 Hz) 200V Rating:15
3-Phase HP (60 Hz) 230V Rating:20
3-Phase HP (60 Hz) 460V Rating:40
3-Phase HP (60 Hz) 575V Rating:50
Contactor Data
Rated Operating Current, AC-3:60A
Coil Voltage:230V 50/60Hz
No. of Power Poles:3 N.O.
Coil Termination:Line Side
Auxiliary Contact Configuration:1 N.O. 4 N.C.
Auxiliary Contact Type:Bifurcated Contact

Safety Contactor, 60 A, 230V 50/60 Hz, 230V AC 50/60 Hz, 3 Normally Open Power Poles, 1 NOC & 4 NCC, Line Side Coil Termination, Bifuracated Contact – 100S-C60KF14BC
