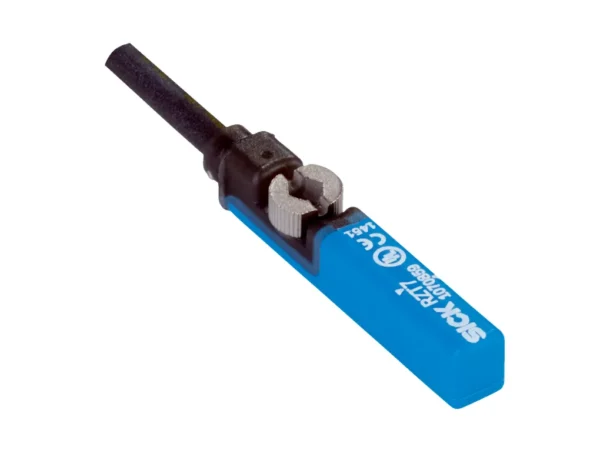

Home Manyetik Sensörler RZT7-03ZUO-KP0S13 – 1103085 🔍 RZT7-03ZUO-KP0S13 – 1103085 ✉ Teklif Al Teklif Al Stok kodu: 1103085 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Cylinder type T-slot Cylinder types with adapter Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 Housing length 32.5 mm Switching output Reed Switching frequency 400 Hz Output function NC Electrical wiring AC/DC 2-wire Enclosure rating IP65 IP67 Mechanics/electronics Supply voltage 10 V AC/DC … 48 V AC/DC Voltage drop ≤ 3.5 V Continuous current Ia ≤ 100 mA Switching capacity ≤ 6 W Protection class III Response sensitivity, typ. 3 mT Overrun distance, typ. 10 mm Reproducibility ≤ 0.1 mT Status indicator LED No Ambient operating temperature –30 °C … +80 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with connector M8, 3-pin, drag chain use, 0.3 m Connection type Detail Conductor cross section 0.14 mm² Cable diameter Ø 2.9 mm Bending radius With fixed installation > 3 x cable diameter For flexible use > 10 x cable diameter Torsion force ± 270° / 10 cm Torsion cycles > 2,000,000 Drag chain cycles > 2,000,000 Drag chain parameters Traversing speed max. 3.3 m/s at 5 m horizontal traversing length Acceleration max. 5 m/s² Cable outlet Axial Material Housing Plastic Cable PUR Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler RZC1-04ZUS-KUBS03 – 1073286SICKManyetik Sensörler ₺850,00 Ürüne Git RZC1-04ZUS-KU0S01 – 1065397SICKManyetik Sensörler ₺850,00 Ürüne Git MZT8-2V6PSTKP0 – 1073268SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZC1-4V3PO-KU0 – 1063549SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Cylinder type T-slot Cylinder types with adapter Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 Housing length 32.5 mm Switching output Reed Switching frequency 400 Hz Output function NC Electrical wiring AC/DC 2-wire Enclosure rating IP65 IP67 Mechanics/electronics Supply voltage 10 V AC/DC … 48 V AC/DC Voltage drop ≤ 3.5 V Continuous current Ia ≤ 100 mA Switching capacity ≤ 6 W Protection class III Response sensitivity, typ. 3 mT Overrun distance, typ. 10 mm Reproducibility ≤ 0.1 mT Status indicator LED No Ambient operating temperature –30 °C … +80 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with connector M8, 3-pin, drag chain use, 0.3 m Connection type Detail Conductor cross section 0.14 mm² Cable diameter Ø 2.9 mm Bending radius With fixed installation > 3 x cable diameter For flexible use > 10 x cable diameter Torsion force ± 270° / 10 cm Torsion cycles > 2,000,000 Drag chain cycles > 2,000,000 Drag chain parameters Traversing speed max. 3.3 m/s at 5 m horizontal traversing length Acceleration max. 5 m/s² Cable outlet Axial Material Housing Plastic Cable PUR Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
