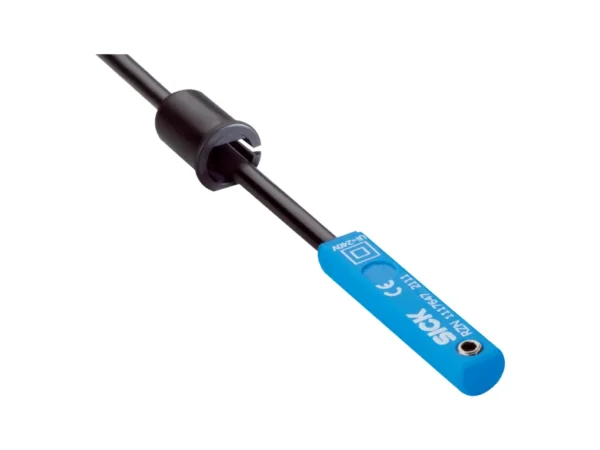

Home Manyetik Sensörler RZN-03ZWS-KUB MAGN.CYLINDER SENSOR SICK – 1117648 🔍 RZN-03ZWS-KUB MAGN.CYLINDER SENSOR SICK – 1117648 ✉ Teklif Al Teklif Al Stok kodu: 1117648 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Cylinder type IMI Norgren slot Cylinder types with adapter Round body cylinder Housing length 29.5 mm Switching output Reed Switching frequency 400 Hz Output function NO Electrical wiring AC/DC 2-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 5 V AC/DC … 240 V AC/DC Rated insulation voltage Ui 240 V Rated impulse withstand voltage Uimp 4 kV Voltage drop ≤ 3.5 V Continuous current Ia ≤ 100 mA Switching capacity ≤ 10 W Protection class II Response sensitivity, typ. 3 mT Overrun distance, typ. 10 mm Reproducibility ≤ 0.1 mT Status indicator LED Yes Ambient operating temperature –40 °C … +80 °C Shock and vibration resistance 50 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable, 2-wire, drag chain use, 5 m Connection type Detail Conductor cross section 0.14 mm² Cable diameter Ø 2.9 mm Bending radius With fixed installation > 4 x cable diameter For flexible use > 8 x cable diameter Torsion force ± 270° / 10 cm Torsion cycles > 300,000 Cable outlet Axial Material Housing Plastic Cable PUR Items supplied 1 x mounting clip plugged in Safety-related parameters MTTFD 23,876 years DCavg 0 % TM (mission time) 20 years B10d 790,000 Switching cycles Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler MZT8-2V6PSAKUB – 1073266SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-2V6PSAKU0 – 1073265SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-2V6PSAKP0 – 1073264SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZ2Q-TFSPSKQD – 1062172SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Cylinder type IMI Norgren slot Cylinder types with adapter Round body cylinder Housing length 29.5 mm Switching output Reed Switching frequency 400 Hz Output function NO Electrical wiring AC/DC 2-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 5 V AC/DC … 240 V AC/DC Rated insulation voltage Ui 240 V Rated impulse withstand voltage Uimp 4 kV Voltage drop ≤ 3.5 V Continuous current Ia ≤ 100 mA Switching capacity ≤ 10 W Protection class II Response sensitivity, typ. 3 mT Overrun distance, typ. 10 mm Reproducibility ≤ 0.1 mT Status indicator LED Yes Ambient operating temperature –40 °C … +80 °C Shock and vibration resistance 50 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable, 2-wire, drag chain use, 5 m Connection type Detail Conductor cross section 0.14 mm² Cable diameter Ø 2.9 mm Bending radius With fixed installation > 4 x cable diameter For flexible use > 8 x cable diameter Torsion force ± 270° / 10 cm Torsion cycles > 300,000 Cable outlet Axial Material Housing Plastic Cable PUR Items supplied 1 x mounting clip plugged in Safety-related parameters MTTFD 23,876 years DCavg 0 % TM (mission time) 20 years B10d 790,000 Switching cycles Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
