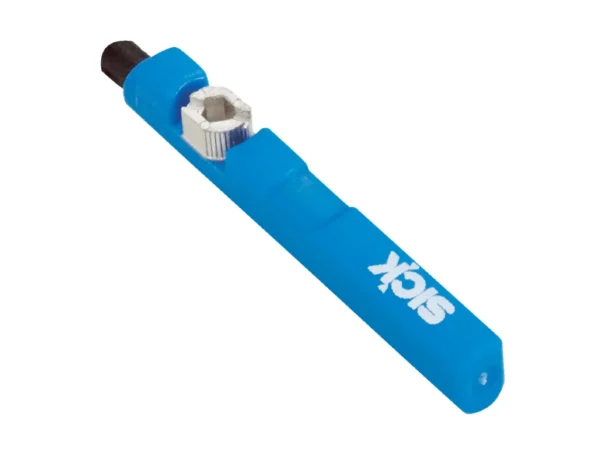

Home Manyetik Sensörler RZC1-04ZUS-KUBS03 – 1073286 🔍 RZC1-04ZUS-KUBS03 – 1073286 ✉ Teklif Al Teklif Al Stok kodu: 1073286 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Cylinder type C-slot Cylinder types with adapter SMC rail CDQ2 SMC rail ECDQ2 Housing length 26.3 mm Switching output Reed Switching frequency 500 Hz Output function NO Electrical wiring AC/DC 2-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 5 V AC/DC … 30 V AC/DC Power consumption 5 mA, without load Voltage drop < 3.2 V Continuous current Ia ≤ 50 mA Switching capacity ≤ 6 W Protection class II Overrun distance, typ. 7 mm Reproducibility ≤ 0.1 mT Status indicator LED Yes Ambient operating temperature –30 °C … +80 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable, 2-wire, 5 m Connection type Detail Conductor cross section 0.09 mm² Cable diameter Ø 2.2 mm Bending radius With fixed installation > 2 x cable diameter For flexible use > 5 x cable diameter Cable outlet Axial Material Housing Plastic, PA, strengthened Cable PUR Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler MZT8-2V6PSTKP0 – 1073268SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-096TLTQ0 – 1062508SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZC1-4V3PO-KU0 – 1063549SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-2V6PSTKWB – 1073270SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Cylinder type C-slot Cylinder types with adapter SMC rail CDQ2 SMC rail ECDQ2 Housing length 26.3 mm Switching output Reed Switching frequency 500 Hz Output function NO Electrical wiring AC/DC 2-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 5 V AC/DC … 30 V AC/DC Power consumption 5 mA, without load Voltage drop < 3.2 V Continuous current Ia ≤ 50 mA Switching capacity ≤ 6 W Protection class II Overrun distance, typ. 7 mm Reproducibility ≤ 0.1 mT Status indicator LED Yes Ambient operating temperature –30 °C … +80 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable, 2-wire, 5 m Connection type Detail Conductor cross section 0.09 mm² Cable diameter Ø 2.2 mm Bending radius With fixed installation > 2 x cable diameter For flexible use > 5 x cable diameter Cable outlet Axial Material Housing Plastic, PA, strengthened Cable PUR Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
