Name: SICK 1129439 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1129439
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle

Photoelectric proximity sensor

Functional principle detail

Energetic

Sensing range
Sensing range min.	2 mm
Sensing range max.	300 mm
Reference object	Object with 90% remission factor (complies with standard white according to DIN 5033)
Recommended sensing range for the best performance	2 mm … 45 mm

Emitted beam
Light source	LED
Type of light	Infrared light
Shape of light spot	Point-shaped
Light spot size (distance)	27 mm x 29 mm (45 mm)
Maximum dispersion of the emitted beam around the standardized transmission axis (squint angle)	< +/- 4° (at Ta = +23 °C)

Key LED figures
LED risk group marking	Free group
Wave length	850 nm
Average service life	100,000 h at T_a = +25 °C

Number of beams

Beam separation

99 mm

Distance from 1st beam to leading edge of housing (including end cap)

99 mm

Smallest detectable object (MDO) typ.
	99 mm (Dependent on distance between beams)

Adjustment
None	–

Indication
LED green	Operating indicator Static on: power on
LED yellow	Status of received light beam Static on: object present Static off: object not present

Special applications

Detecting flat objects, Detecting perforated objects, Detecting objects with position tolerances, Detecting uneven, shiny objects

Electrical data

Supply voltage U_B

10 V DC … 30 V DC

Ripple

≤ 5 V_pp

Usage category

DC-12 (According to EN 60947-5-2)

DC-13 (According to EN 60947-5-2)

Current consumption

38 mA, without load. At U_B = 24 V

Protection class

III

Digital output
Number	1
Type	PNP
Signal voltage PNP HIGH/LOW	Approx. U_B-2.5 V / 0 V
Output current I_max.	≤ 100 mA
Circuit protection outputs	Reverse polarity protected
	Overcurrent protected
	Short-circuit protected
Response time	≤ 1 ms
Repeatability (response time)	1 ms
Switching frequency	500 Hz

Pin/Wire assignment
BN	+ (L+)
WH	Q₂
BU	– (M)
BK	Q₁
Function of pin 4/black (BK)	Digital output, light switching, object present → output HIGH
Function of pin 2/white (WH)	Digital output, light switching, object present → output HIGH

Mechanical data

Dimensions (W x H x D)

891 mm x 20.3 mm x 17 mm

Connection

Cable, 4-wire

Connection detail
Deep-freeze property	Do not bend below 0 °C
Conductor size	0.13 mm²
Cable diameter	Ø 3.6 mm
Length of cable (L)	2,000 mm

Material
Housing	Metal, Aluminum (anodised)
Front screen	Plastic, PMMA
Cable	Plastic PVC
Male connector	Nylon

Weight

Approx. 323.3 g

Mounting system type

BEF-AP-RSBADHA, 8 mm round adapter bracket with adhesive back

Ambient data

Enclosure rating	IP67 (EN 60529)
Ambient operating temperature	–40 °C … +60 °C
Ambient temperature, storage	–40 °C … +75 °C
Shock resistance	30 g, 11 ms (3 positive and 3 negative shocks along X, Y, Z axes, 18 total shocks (EN60068-2-27))
Vibration resistance	10 Hz … 55 Hz (Amplitude 1 mm, 3 x 30 min (EN60068-2-6))
Air humidity	15 % … 95 %, Relative humidity (no condensation), as per IEC 60947-5-2
Electromagnetic compatibility (EMC)	EN 60947-5-2
UL File No.	NRKH.E189383 & NRKH7.E189383

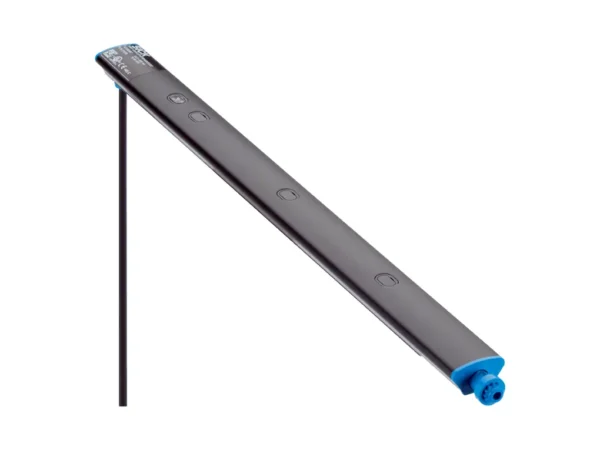

RSB1-0891H099099PP1GZZZP0A – 1129439
