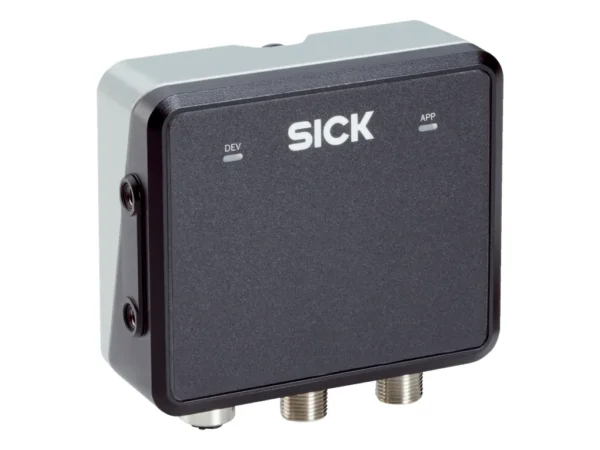

Home Manyetik Sensörler RMS1731C-636111 – 1107598 🔍 RMS1731C-636111 – 1107598 ✉ Teklif Al Teklif Al Stok kodu: 1107598 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Variant Model RMS-A Measurement principle FMCW Radio approval European Union United Kingdom China Australia Turkey India South Africa The Philippines United Arab Emirates Korea Egypt Saudi Arabia Singapore Malaysia Vietnam Frequency band 61 GHz … 61.5 GHz Transmitting power < 20 dBm (e.i.r.p.) Aperture angle Horizontal ± 60° Vertical ± 4° Working range 0.4 m … 100 m Scanning range For 1 m² RCS 50 m At 10 m² RCS 100 m Distance accuracy 1 m² RCS to 20 m 0.04 m 1 m² RCS to 50 m 0.1 m Distance resolution 0.4 m Speed range ± 30 m/s Speed resolution 0.625 m/s Speed accuracy 1 m² RCS to 20 m 0.0625 m/s 1 m² RCS to 50 m 0.15 m/s Mechanics/electronics Connection type 1 x M12 male connector, 8-pin, A-coded 1 x male connector M12, 5-pin, A-coded 1 x M12 female connector, 4-pin, D-coded Supply voltage 9 V DC … 32 V DC Power consumption Typ. 4 W, For digital outputs without load, max. 36 W Housing color Gray (RAL 7042) Enclosure rating IP67 IP69 Protection class III Weight 300 g Dimensions (L x W x H) 34 mm x 97 mm x 96 mm MTBF 81 years Safety-related parameters MTTFD > 100 years Performance Initialization time Typ. 20 s Processing latency 1 measurement cycle Measurement cycle duration 100 ms Integrated application Zone evaluation Number of field sets Up to 4 zones Interfaces Ethernet ✔ Function Parameterization, Data output Data transmission rate 10/100 MBit/s Digital inputs 2 (digital) Digital outputs 4 (digital) Ambient data Electromagnetic compatibility (EMC) ETSI EN 301 489-1 / EN 61000-6-2 / EN 61000-6-4 Radio standard ETSI EN 305 550 Vibration resistance EN 60068-2-6:2008-02 Shock resistance EN 60068-2-27:2009-05 Ambient operating temperature –40 °C … +65 °C Storage temperature –40 °C … +85 °C Classifications ECLASS 5.0 27270890 ECLASS 5.1.4 27270890 ECLASS 6.0 27270890 ECLASS 6.2 27270890 ECLASS 7.0 27270890 ECLASS 8.0 27270890 ECLASS 8.1 27270890 ECLASS 9.0 27270890 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 39121528 İlgili ürünler MPS-032TLTQ0 – 1062506SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-256TLTQ0 – 1062520SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-2V6PSAKP0 – 1073264SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-064TLTQ0 – 1062507SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Variant Model RMS-A Measurement principle FMCW Radio approval European Union United Kingdom China Australia Turkey India South Africa The Philippines United Arab Emirates Korea Egypt Saudi Arabia Singapore Malaysia Vietnam Frequency band 61 GHz … 61.5 GHz Transmitting power < 20 dBm (e.i.r.p.) Aperture angle Horizontal ± 60° Vertical ± 4° Working range 0.4 m … 100 m Scanning range For 1 m² RCS 50 m At 10 m² RCS 100 m Distance accuracy 1 m² RCS to 20 m 0.04 m 1 m² RCS to 50 m 0.1 m Distance resolution 0.4 m Speed range ± 30 m/s Speed resolution 0.625 m/s Speed accuracy 1 m² RCS to 20 m 0.0625 m/s 1 m² RCS to 50 m 0.15 m/s Mechanics/electronics Connection type 1 x M12 male connector, 8-pin, A-coded 1 x male connector M12, 5-pin, A-coded 1 x M12 female connector, 4-pin, D-coded Supply voltage 9 V DC … 32 V DC Power consumption Typ. 4 W, For digital outputs without load, max. 36 W Housing color Gray (RAL 7042) Enclosure rating IP67 IP69 Protection class III Weight 300 g Dimensions (L x W x H) 34 mm x 97 mm x 96 mm MTBF 81 years Safety-related parameters MTTFD > 100 years Performance Initialization time Typ. 20 s Processing latency 1 measurement cycle Measurement cycle duration 100 ms Integrated application Zone evaluation Number of field sets Up to 4 zones Interfaces Ethernet ✔ Function Parameterization, Data output Data transmission rate 10/100 MBit/s Digital inputs 2 (digital) Digital outputs 4 (digital) Ambient data Electromagnetic compatibility (EMC) ETSI EN 301 489-1 / EN 61000-6-2 / EN 61000-6-4 Radio standard ETSI EN 305 550 Vibration resistance EN 60068-2-6:2008-02 Shock resistance EN 60068-2-27:2009-05 Ambient operating temperature –40 °C … +65 °C Storage temperature –40 °C … +85 °C Classifications ECLASS 5.0 27270890 ECLASS 5.1.4 27270890 ECLASS 6.0 27270890 ECLASS 6.2 27270890 ECLASS 7.0 27270890 ECLASS 8.0 27270890 ECLASS 8.1 27270890 ECLASS 9.0 27270890 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 39121528
