| Features |
| Applications |

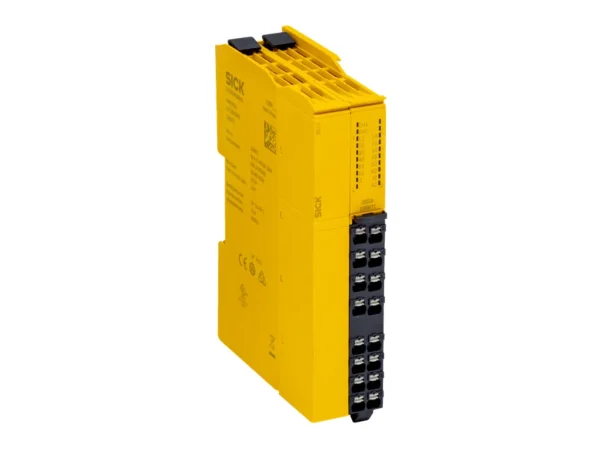

Output expansion module for OSSDs |
| Compatible sensor types |
Safety sensors with OSSDs |
|
| Safety-related parameters |
| Safety integrity level |
SIL 3 (IEC 61508) |
| Category |
Category 4 (ISO 13849-1) |
| Performance level |
PL e (ISO 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) |
1.0 x 10-9 |
| TM (mission time) |
20 years (ISO 13849-1) |
| Stop category |
0 (IEC 60204-1) |
|
| Functions |
| Path for external device monitoring (EDM) |
✔ |
|
| Interfaces |
| Connection type |
Front connector with spring terminals |
| Inputs |
2 safety inputs |
| Outputs |
4 enabling current paths (safe)
1 feedback current path (for use as external device monitoring, not safe)
1 signaling current path (not safe)
|
| Display elements |
LEDs |
|
| Electrical data – Operating data |
| Voltage supply |
Passive (no active voltage supply) |
| Power consumption (input circuits) |
≤ 2.5 W (DC) |
|
| Electrical data – Safety inputs |
| Number |
2 |
| Input voltage |
|
| HIGH |
24 V DC (15 V … 30 V) |
| LOW |
0 V DC (–3 V … 5 V) |
|
| Input current |
≤ 60 mA |
| Test pulse width |
≤ 1 ms |
| Test pulse rate |
≤ 10 Hz |
|
| Electrical data – Enabling current paths |
| Response time |
12 ms |
| Number |
4 |
| Type of output |
N/O contacts, positively guided |
| Contact material |
Silver alloy, gold flashed |
| Switching voltage |
10 V AC … 230 V AC
10 V DC … 230 V DC
|
| Switching current |
10 mA … 6 A |
| Total current |
12 A |
| Mechanical life |
1 x 107 switching cycles |
| Overvoltage category |
III (EN 60664-1) |
| Rated impulse withstand voltage Uimp |
6 kV (EN 60664-1) |
|
| Electrical data – Check-back current paths |
| Number |
1 |
| Type of output |
N/C contact, positively guided |
| Contact material |
Silver alloy, gold flashed |
| Switching voltage |
10 V AC … 30 V AC
10 V DC … 30 V DC
|
| Switching current |
3 mA … 100 mA |
| Mechanical life |
1 x 107 switching cycles |
|
| Electrical data – Signaling current paths |
| Number |
1 |
| Type of output |
N/C contact, positively guided |
| Contact material |
Silver alloy, gold flashed |
| Switching voltage |
10 V AC … 30 V AC
10 V DC … 30 V DC
|
| Switching current |
10 mA … 100 mA |
| Mechanical life |
1 x 107 switching cycles |
|
| Mechanical data |
| Dimensions (W x H x D) |
28 mm x 124.6 mm x 85.5 mm |
| Weight |
180 g |
|
| Ambient data |
| Enclosure rating |
IP20 (IEC 60529) |
| Ambient operating temperature |
–25 °C … +55 °C |
| Storage temperature |
–25 °C … +70 °C |
| Air humidity |
≤ 95 %, Non-condensing |
| Interference emission |
According to IEC 61000-6-4 |
| Interference resistance |
According to IEC 61326-3-1
According to IEC 61000-6-2
According to IEC 60947-5-1
|
|
| Classifications |
| eCl@ss 5.0 |
27371990 |
| eCl@ss 5.1.4 |
27371990 |
| eCl@ss 6.0 |
27371819 |
| eCl@ss 6.2 |
27371819 |
| eCl@ss 7.0 |
27371819 |
| eCl@ss 8.0 |
27371819 |
| eCl@ss 8.1 |
27371819 |
| eCl@ss 9.0 |
27371819 |
| eCl@ss 10.0 |
27371819 |
| eCl@ss 11.0 |
27371819 |
| eCl@ss 12.0 |
27371819 |
| ETIM 5.0 |
EC001449 |
| ETIM 6.0 |
EC001449 |
| ETIM 7.0 |
EC001449 |
| ETIM 8.0 |
EC001449 |
| UNSPSC 16.0901 |
41113704 |
|
