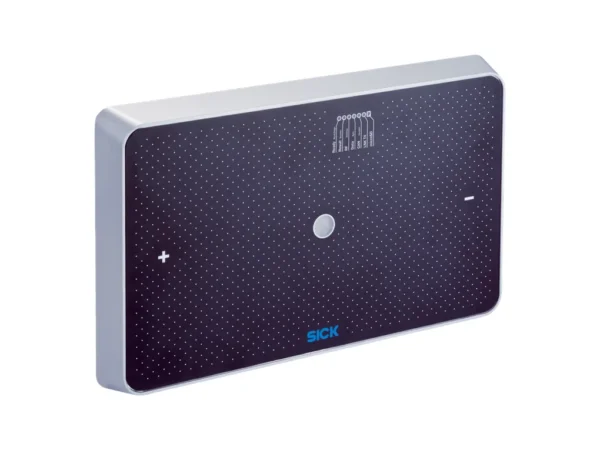

EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C
Modulation
PR-ASK, DSB-ASK
Read range
≤ 10 m
Antenna
Integrated
Transmitting power
Adjustable
Polarization
Circular
Axial ratio
Typ. 2 dB
Aperture angle
80°, vertical
55°, horizontal
Front-to-back ratio
> 15 dB
Direction monitoring
✔
Bulk reading
✔
Further functions
Transponder entry detection with direction information at horizontal antenna level, Horizontal transponder angle output, diagnosis, updatable firmware, freely programmable data output format, Heartbeat, triggering, SICK AppSpace functionalities can be enabled with the SD card accessory SDK6U-P00100 (for firmware ≥ 2.0.0)
Mechanics/electronics
Connection type
1 x M12, 17-pin male connector, A-coded
1 x M12, 4-pin female connector, D-coded
1 x USB, 5-pin micro-B socket
Supply voltage
12 V DC … 30 V DC
Power consumption
Typ. 26 W
Housing
Aluminum
Housing color
Blue, black, silver
Enclosure rating
IP67
Protection class
III
Weight
3.9 kg
Dimensions (L x W x H)
400 mm x 252 mm x 70 mm
MTBF
25 years
Interfaces
Ethernet
✔ , TCP/IP, OPC UA
Remark
Companion Spec V1.0 from firmware 2.20
Function
Data interface (read result output), Service interface
Data transmission rate
10/100 MBit/s
PROFINET
✔
Function
PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2), Data interface (read result output)
Data transmission rate
10/100 MBit/s
EtherNet/IP™
✔
Function
Data interface (read result output)
Data transmission rate
10/100 MBit/s
EtherCAT®
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600
Function
Data interface (read result output)
Serial
✔ , RS-232, RS-422
Remark
RS-422 only via 4-wire
Function
Data interface (read result output), AUX (only RS-232)
Data transmission rate
0.3 kBaud … 115.2 kBaud, AUX: 57.6 kBaud
CAN
✔
Remark
CSN (SICK CAN Sensor Network)
Function
Data interface (read result output)
PROFIBUS DP
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600-2
Function
Data interface (read result output)
USB
✔
Remark
USB 2.0
Function
Service interface
CANopen
✔
Function
Data interface (read result output)
Digital inputs
2 (physical, 2 additional logical inputs via optional CMC600 parameter memory in CDB620 / CDM420)
Digital outputs
2 (physical, 2 additional logical outputs via optional CMC600 parameter memory in CDB620 / CDM420)
Optical indicators
7 LEDs, multi-color (device status)
1 RGB LED (Process feedback)
Acoustic indicators
1 beeper (Feedback)
Control elements
2 buttons (choose and start/stop functions)
Operator interfaces
Web server
Configuration software
SOPAS ET
Programming interface
Application-specific programming using the SICK AppStudio development environment
Memory card
microSD memory card (parameter cloning, data storage)
