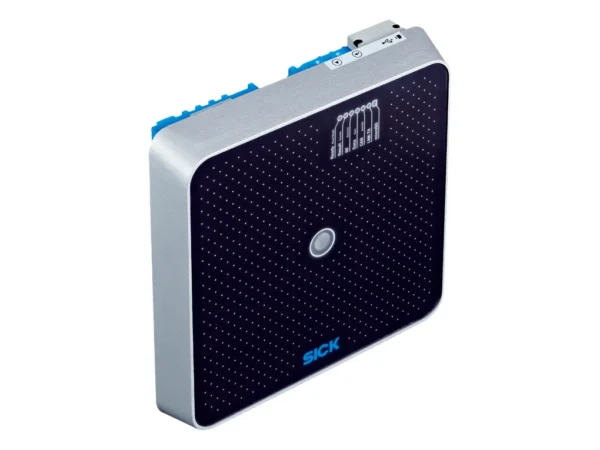

Max. 2 W (EIRP indoor, with integrated antenna, alternatively 30 dBm at the external antenna port, output power adjustable)
Max. 1 W (EIRP outdoor, with integrated antenna, alternatively 27 dBm at the external antenna port, output power adjustable)
RFID standard
EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C
Modulation
PR-ASK, DSB-ASK
Read range
≤ 10 m
Antenna
Integrated
Transmitting power
Adjustable
Polarization
Circular
Axial ratio
Typ. 2 dB
Aperture angle
72°
Front-to-back ratio
> 17 dB
Connection of external antennas
3 (Up to + 30 dBm, can be adjusted separately)
Bulk reading
✔
Further functions
Diagnosis, updatable firmware, freely programmable data output format, Heartbeat, triggering, SICK AppSpace functionalities can be enabled with the SD card accessory SDK6U-P00100 (for firmware ≥ 2.0.0)
Mechanics/electronics
Connection type
1 x M12, 17-pin male connector, A-coded
1 x M12, 4-pin female connector, D-coded
1 x USB, 5-pin micro-B socket
Supply voltage
18 V DC … 30 V DC
Power consumption
Typ. 20 W
Housing
Aluminum die cast
Housing color
Blue, black, silver
Enclosure rating
IP67
Protection class
III
Weight
2.6 kg
Dimensions (L x W x H)
239 mm x 239 mm x 64 mm
MTBF
> 100 years
Interfaces
Ethernet
✔ , TCP/IP, OPC UA
Remark
Companion Spec V1.0 from firmware 2.20
Function
Data interface (read result output), Service interface
Data transmission rate
10/100 MBit/s
PROFINET
✔
Function
PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2), Data interface (read result output)
Data transmission rate
10/100 MBit/s
EtherNet/IP™
✔
Function
Data interface (read result output)
Data transmission rate
10/100 MBit/s
EtherCAT®
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600
Function
Data interface (read result output)
Serial
✔ , RS-232, RS-422
Remark
RS-422 only via 4-wire
Function
Data interface (read result output), Service interface
Data transmission rate
0.3 kBaud … 115.2 kBaud, AUX: 57.6 kBaud
CAN
✔
Remark
CSN (SICK CAN Sensor Network)
Function
Data interface (read result output)
PROFIBUS DP
✔
Type of fieldbus integration
Optional over external fieldbus module CDF600-2
Function
Data interface (read result output)
USB
✔
Remark
USB 2.0
Function
Service interface
CANopen
✔
Function
Data interface (read result output)
Digital inputs
2 (physical, 2 additional logical inputs via optional CMC600 parameter memory in CDB620 / CDM420)
Digital outputs
2 (physical, 2 additional logical outputs via optional CMC600 parameter memory in CDB620 / CDM420)
Optical indicators
7 LEDs, multi-color (device status)
1 RGB LED (Process feedback)
Acoustic indicators
1 beeper (Feedback)
Control elements
2 buttons (choose and start/stop functions)
Operator interfaces
Web server
Configuration software
SOPAS ET
Programming interface
Application-specific programming using the SICK AppStudio development environment
Memory card
microSD memory card (parameter cloning, data storage)
