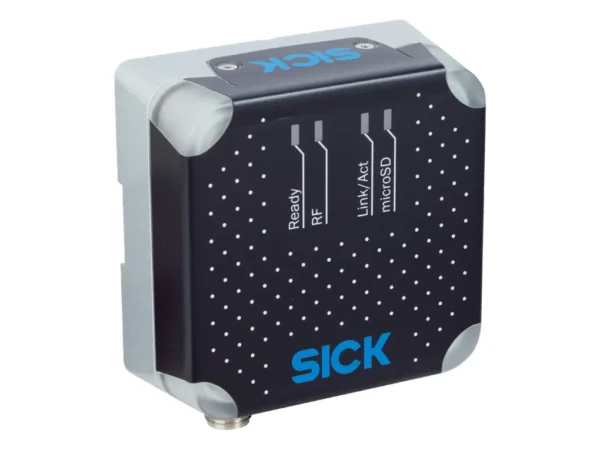

Home Optik Barkod & ID Okuyucular RFU610-10601 – 1099890 🔍 RFU610-10601 – 1099890 ✉ Teklif Al Teklif Al Stok kodu: 1099890 Kategoriler: Optik Barkod & ID Okuyucular Marka: SICK Açıklama Tecnichal data Features Version Short Range Product category RFID read/write device with integrated antenna Radio approval USA Canada México Frequency band UHF (860 MHz … 960 MHz) Carrier frequency 902.75 MHz … 927.25 MHz Output power 40 mW (EIRP, 16 dBm) RFID standard EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C Modulation PR-ASK Connection type PoE, Power and Ethernet Read range ≤ 0.5 m Antenna Integrated Transmitting power Adjustable Polarization Circular Axial ratio Typ. 3 dB Aperture angle 110° Front-to-back ratio > 5 dB Mechanics/electronics Connection type 1 x M12, 4-pin male connector, A-coded 1 x M12, 8-pin female connector, X-coded 1 x M8, 4-pin female connector, A-coded 1 x USB, 5-pin micro-B socket Supply voltage 18 V DC … 30 V DC Power consumption 6 W, standby 3 W Housing Aluminum die cast Plastic (PPS) Enclosure rating IP67 Protection class III Weight 313 g Dimensions (L x W x H) 92 mm x 80 mm x 38 mm MTBF 22 years Interfaces Ethernet ✔ , TCP/IP, PoE, OPC UA Remark Companion Spec V1.0 from firmware 2.20 Function Data interface (read result output), Service interface Data transmission rate 10/100 MBit/s PROFINET ✔ Function PROFINET Single Port, Data interface (read result output) Data transmission rate 10/100 MBit/s EtherNet/IP™ ✔ Function Data interface (read result output) Data transmission rate 10/100 MBit/s USB ✔ Remark USB 2.0 Function Service interface Digital inputs 1 (physical, switching, trigger sensor can be connected directly to the device (port 3) – max. 40 mA) Optical indicators 4 LEDs, multi-color (device status) 4 RGB LED (Process feedback) Operator interfaces Web server Configuration software SOPAS ET Programming interface Application-specific programming using the SICK AppStudio development environment Memory card microSD memory card (parameter cloning, data storage) Ambient data Electromagnetic compatibility (EMC) EN 301489-3 Vibration resistance EN 60068-2-6:2007 Shock resistance EN 60068-2-27:2008 Ambient operating temperature –25 °C … +50 °C Storage temperature –40 °C … +70 °C Permissible relative humidity 90 %, Non-condensing Classifications ECLASS 5.0 27280401 ECLASS 5.1.4 27280401 ECLASS 6.0 27280401 ECLASS 6.2 27280401 ECLASS 7.0 27280401 ECLASS 8.0 27280401 ECLASS 8.1 27280401 ECLASS 9.0 27280401 ECLASS 10.0 27280401 ECLASS 11.0 27280401 ECLASS 12.0 27280401 ETIM 6.0 EC002998 ETIM 7.0 EC002998 ETIM 8.0 EC002998 UNSPSC 16.0901 52161523 İlgili ürünler RFU620-10103 – 1091355SICKOptik Barkod & ID Okuyucular ₺15.000,00 Ürüne Git RFU610-10600 – 1091102SICKOptik Barkod & ID Okuyucular ₺15.000,00 Ürüne Git RFU650-10100 – 1073556SICKOptik Barkod & ID Okuyucular ₺15.000,00 Ürüne Git RFU620-10505 – 1077860SICKOptik Barkod & ID Okuyucular ₺15.000,00 Ürüne Git
Tecnichal data Features Version Short Range Product category RFID read/write device with integrated antenna Radio approval USA Canada México Frequency band UHF (860 MHz … 960 MHz) Carrier frequency 902.75 MHz … 927.25 MHz Output power 40 mW (EIRP, 16 dBm) RFID standard EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C Modulation PR-ASK Connection type PoE, Power and Ethernet Read range ≤ 0.5 m Antenna Integrated Transmitting power Adjustable Polarization Circular Axial ratio Typ. 3 dB Aperture angle 110° Front-to-back ratio > 5 dB Mechanics/electronics Connection type 1 x M12, 4-pin male connector, A-coded 1 x M12, 8-pin female connector, X-coded 1 x M8, 4-pin female connector, A-coded 1 x USB, 5-pin micro-B socket Supply voltage 18 V DC … 30 V DC Power consumption 6 W, standby 3 W Housing Aluminum die cast Plastic (PPS) Enclosure rating IP67 Protection class III Weight 313 g Dimensions (L x W x H) 92 mm x 80 mm x 38 mm MTBF 22 years Interfaces Ethernet ✔ , TCP/IP, PoE, OPC UA Remark Companion Spec V1.0 from firmware 2.20 Function Data interface (read result output), Service interface Data transmission rate 10/100 MBit/s PROFINET ✔ Function PROFINET Single Port, Data interface (read result output) Data transmission rate 10/100 MBit/s EtherNet/IP™ ✔ Function Data interface (read result output) Data transmission rate 10/100 MBit/s USB ✔ Remark USB 2.0 Function Service interface Digital inputs 1 (physical, switching, trigger sensor can be connected directly to the device (port 3) – max. 40 mA) Optical indicators 4 LEDs, multi-color (device status) 4 RGB LED (Process feedback) Operator interfaces Web server Configuration software SOPAS ET Programming interface Application-specific programming using the SICK AppStudio development environment Memory card microSD memory card (parameter cloning, data storage) Ambient data Electromagnetic compatibility (EMC) EN 301489-3 Vibration resistance EN 60068-2-6:2007 Shock resistance EN 60068-2-27:2008 Ambient operating temperature –25 °C … +50 °C Storage temperature –40 °C … +70 °C Permissible relative humidity 90 %, Non-condensing Classifications ECLASS 5.0 27280401 ECLASS 5.1.4 27280401 ECLASS 6.0 27280401 ECLASS 6.2 27280401 ECLASS 7.0 27280401 ECLASS 8.0 27280401 ECLASS 8.1 27280401 ECLASS 9.0 27280401 ECLASS 10.0 27280401 ECLASS 11.0 27280401 ECLASS 12.0 27280401 ETIM 6.0 EC002998 ETIM 7.0 EC002998 ETIM 8.0 EC002998 UNSPSC 16.0901 52161523
