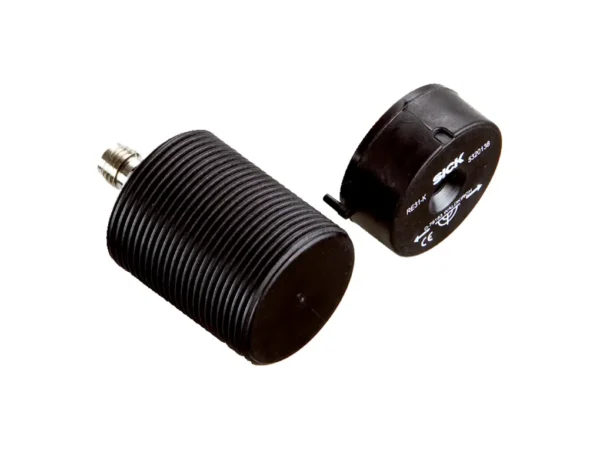

Home Emniyet Switchleri RE31-DAC SAFETY SENSOR – 6036768 🔍 RE31-DAC SAFETY SENSOR – 6036768 ✉ Teklif Al Teklif Al Stok kodu: 6036768 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Features System part Sensor with actuator Sensor principle Magnetic Number of N/O contacts 1 Number of N/C contacts 1 Safe switch on distance Sao 6 mm Safe switch off distance Sar 17 mm Active sensor surfaces 1 Actuation directions 5 Safety-related parameters B10d parameter 2 x 107 switching cycles (with small load) Type Type 4 (EN ISO 14119) Actuator coding level Low coding level (EN ISO 14119) Safe state in the event of a fault The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. Functions Safe series connection With Flexi Loop (with diagnostics) Interfaces Connection type Plug connector, M8, 4-pin Electrical data Type of output Reed contacts Switching voltage ≤ 30 V DC Switching current ≤ 400 mA Mechanical data Design Cylindrical Housing diameter M30 Weight + 0.051 kg Housing material Glass-fiber reinforced PPS Ambient data Enclosure rating IP67 Ambient operating temperature –20 °C … +60 °C Storage temperature –20 °C … +60 °C Vibration resistance 10 Hz … 55 Hz, 1 mm (EN 60947-5-3) Shock resistance 30 g, 11 ms (EN 60947-5-3) Classifications ECLASS 5.0 27272402 ECLASS 5.1.4 27272402 ECLASS 6.0 27272402 ECLASS 6.2 27272402 ECLASS 7.0 27272402 ECLASS 8.0 27272402 ECLASS 8.1 27272402 ECLASS 9.0 27272402 ECLASS 10.0 27272402 ECLASS 11.0 27272402 ECLASS 12.0 27274401 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122205 İlgili ürünler STR1-SAFM10P5 – 1069568SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE11-SK – 1062121SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SASM0AC8 – 1069561SICKEmniyet Switchleri ₺3.200,00 Ürüne Git RE23-SA05 – 1061726SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Features System part Sensor with actuator Sensor principle Magnetic Number of N/O contacts 1 Number of N/C contacts 1 Safe switch on distance Sao 6 mm Safe switch off distance Sar 17 mm Active sensor surfaces 1 Actuation directions 5 Safety-related parameters B10d parameter 2 x 107 switching cycles (with small load) Type Type 4 (EN ISO 14119) Actuator coding level Low coding level (EN ISO 14119) Safe state in the event of a fault The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. Functions Safe series connection With Flexi Loop (with diagnostics) Interfaces Connection type Plug connector, M8, 4-pin Electrical data Type of output Reed contacts Switching voltage ≤ 30 V DC Switching current ≤ 400 mA Mechanical data Design Cylindrical Housing diameter M30 Weight + 0.051 kg Housing material Glass-fiber reinforced PPS Ambient data Enclosure rating IP67 Ambient operating temperature –20 °C … +60 °C Storage temperature –20 °C … +60 °C Vibration resistance 10 Hz … 55 Hz, 1 mm (EN 60947-5-3) Shock resistance 30 g, 11 ms (EN 60947-5-3) Classifications ECLASS 5.0 27272402 ECLASS 5.1.4 27272402 ECLASS 6.0 27272402 ECLASS 6.2 27272402 ECLASS 7.0 27272402 ECLASS 8.0 27272402 ECLASS 8.1 27272402 ECLASS 9.0 27272402 ECLASS 10.0 27272402 ECLASS 11.0 27272402 ECLASS 12.0 27274401 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122205
