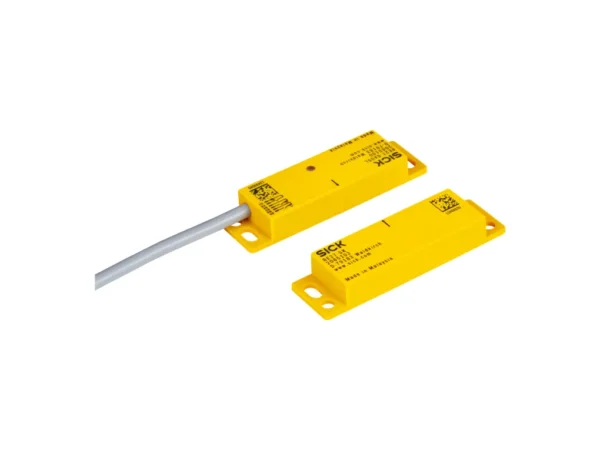

Home Emniyet Switchleri RE27-SA68LS04 – 1065233 🔍 RE27-SA68LS04 – 1065233 ✉ Teklif Al Teklif Al Stok kodu: 1065233 Kategoriler: Emniyet Switchleri Marka: SICK Açıklama Tecnichal data Features System part Sensor with actuator Sensor principle Magnetic Number of N/O contacts 2 Number of N/C contacts 0 Number of signaling contacts 1 Safe switch on distance Sao 9 mm Safe switch off distance Sar 20 mm Active sensor surfaces 1 Actuation directions 3 Safety-related parameters B10d parameter 2 x 107 switching cycles (with small load) Type Type 4 (EN ISO 14119) Actuator coding level Low coding level (EN ISO 14119) Safe state in the event of a fault The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. Functions Safe series connection With Flexi Loop (with diagnostics) Interfaces Connection type Cable with plug M12, 8-pin Length of cable 0.2 m Cable diameter 5.8 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 12 x cable diameter Bend radius (with moving cable) > 15 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Zinc die-cast, nickel-plated Display elements LEDs Status display ✔ Electrical data Type of output Reed contacts Switching voltage ≤ 30 V DC Switching current ≤ 100 mA ≤ 10 mA Mechanical data Design Rectangular Dimensions (W x H x D) 25 mm x 88 mm x 13 mm Weight + 0.1 kg Housing material VISTAL® Ambient data Enclosure rating IP67 (IEC 60529) Ambient operating temperature –30 °C … +60 °C Storage temperature –30 °C … +60 °C Vibration resistance 10 Hz … 55 Hz, 1 mm (EN 60947-5-3) Shock resistance 30 g, 11 ms (EN 60947-5-3) Classifications ECLASS 5.0 27272402 ECLASS 5.1.4 27272402 ECLASS 6.0 27272402 ECLASS 6.2 27272402 ECLASS 7.0 27272402 ECLASS 8.0 27272402 ECLASS 8.1 27272402 ECLASS 9.0 27272402 ECLASS 10.0 27272402 ECLASS 11.0 27272402 ECLASS 12.0 27274401 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122205 İlgili ürünler RE13-SA64 – 1062540SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SAMM0AC8 – 1069571SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SASM10P8 – 1069569SICKEmniyet Switchleri ₺3.200,00 Ürüne Git STR1-SASM10P5 – 1069563SICKEmniyet Switchleri ₺3.200,00 Ürüne Git
Tecnichal data Features System part Sensor with actuator Sensor principle Magnetic Number of N/O contacts 2 Number of N/C contacts 0 Number of signaling contacts 1 Safe switch on distance Sao 9 mm Safe switch off distance Sar 20 mm Active sensor surfaces 1 Actuation directions 3 Safety-related parameters B10d parameter 2 x 107 switching cycles (with small load) Type Type 4 (EN ISO 14119) Actuator coding level Low coding level (EN ISO 14119) Safe state in the event of a fault The switch has no internal fault detection and is unable to assume a safe state in the event of a fault. Fault detection is performed by the connected safety-related logic unit. Functions Safe series connection With Flexi Loop (with diagnostics) Interfaces Connection type Cable with plug M12, 8-pin Length of cable 0.2 m Cable diameter 5.8 mm Conductor cross section 0.25 mm² Bend radius (with fixed installation) > 12 x cable diameter Bend radius (with moving cable) > 15 x cable diameter Cable material PVC Conductor material Copper Coupling nut material Zinc die-cast, nickel-plated Display elements LEDs Status display ✔ Electrical data Type of output Reed contacts Switching voltage ≤ 30 V DC Switching current ≤ 100 mA ≤ 10 mA Mechanical data Design Rectangular Dimensions (W x H x D) 25 mm x 88 mm x 13 mm Weight + 0.1 kg Housing material VISTAL® Ambient data Enclosure rating IP67 (IEC 60529) Ambient operating temperature –30 °C … +60 °C Storage temperature –30 °C … +60 °C Vibration resistance 10 Hz … 55 Hz, 1 mm (EN 60947-5-3) Shock resistance 30 g, 11 ms (EN 60947-5-3) Classifications ECLASS 5.0 27272402 ECLASS 5.1.4 27272402 ECLASS 6.0 27272402 ECLASS 6.2 27272402 ECLASS 7.0 27272402 ECLASS 8.0 27272402 ECLASS 8.1 27272402 ECLASS 9.0 27272402 ECLASS 10.0 27272402 ECLASS 11.0 27272402 ECLASS 12.0 27274401 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122205
