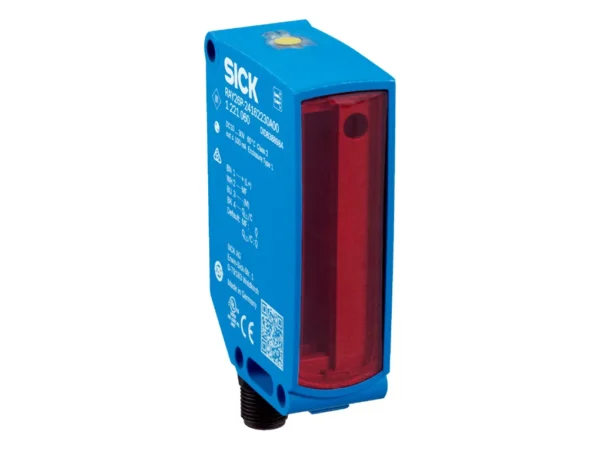

Home Fotoelektrik Sensörler RAY26P-34112C30ZZZZ2ZZZZZZZZZ1 – 1121282 🔍 RAY26P-34112C30ZZZZ2ZZZZZZZZZ1 – 1121282 ✉ Teklif Al Teklif Al Stok kodu: 1121282 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Autocollimation, Reflex Array Dimensions (W x H x D) 24.6 mm x 82.5 mm x 53.3 mm Housing design (light emission) Rectangular Minimum object size 2 mm, position-independent detection within the light array Detection height 10 mm Sensing range max. 0 m … 1.5 m Distance of the sensor to reflector ≥ 0 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) 10 mm x 9 mm (1 m) Wave length 635 nm Adjustment BluePilot: Teach-in AutoAdapt ✔ Special applications Detecting objects with position tolerances, Detecting perforated objects, Detecting uneven, shiny objects, Detecting transparent objects, Detecting flat objects Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 25 mA, 40 mA Switching output Push-pull: PNP/NPN Output function Factory setting: Pin 2 / white: NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black: NPN normally open (dark switching), PNP normally closed (light switching) Switching mode Light/dark switching Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V Signal voltage NPN HIGH/LOW Approx. VS / < 2.5 V Output current Imax. ≤ 100 mA Response time ≤ 500 µs Switching frequency 1,000 Hz Connection type Cable with M12 male connector, 4-pin, 270 mm Cable material PVC Circuit protection A B C 10) D 11) Protection class III Weight 100 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 Ambient operating temperature –40 °C … +60 °C 12) 13) Ambient temperature, storage –40 °C … +75 °C UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters MTTFD 709 years DCavg 0 % Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528 İlgili ürünler Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 120 mm Gap, Plastic, 3 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA4-P3ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 50 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA2-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Distance Measurement Sensor – 45DMS-B8LAT1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git 45LSP Optical Fork Sensor, 50 mm Sensing Gap, 10–30V DC Operating Voltage, Light or Dark Operate Selectable, 3-pin Pico QD, NPN Output Type – 45LSP-2LNA2-P3ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git
Tecnichal data Features Functional principle Photoelectric retro-reflective sensor Functional principle detail Autocollimation, Reflex Array Dimensions (W x H x D) 24.6 mm x 82.5 mm x 53.3 mm Housing design (light emission) Rectangular Minimum object size 2 mm, position-independent detection within the light array Detection height 10 mm Sensing range max. 0 m … 1.5 m Distance of the sensor to reflector ≥ 0 m Type of light Visible red light Light source PinPoint LED Light spot size (distance) 10 mm x 9 mm (1 m) Wave length 635 nm Adjustment BluePilot: Teach-in AutoAdapt ✔ Special applications Detecting objects with position tolerances, Detecting perforated objects, Detecting uneven, shiny objects, Detecting transparent objects, Detecting flat objects Mechanics/electronics Supply voltage UB 10 V DC … 30 V DC Ripple < 5 Vpp Current consumption 25 mA, 40 mA Switching output Push-pull: PNP/NPN Output function Factory setting: Pin 2 / white: NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black: NPN normally open (dark switching), PNP normally closed (light switching) Switching mode Light/dark switching Signal voltage PNP HIGH/LOW Approx. VS – 2.5 V / 0 V Signal voltage NPN HIGH/LOW Approx. VS / < 2.5 V Output current Imax. ≤ 100 mA Response time ≤ 500 µs Switching frequency 1,000 Hz Connection type Cable with M12 male connector, 4-pin, 270 mm Cable material PVC Circuit protection A B C 10) D 11) Protection class III Weight 100 g Housing material Plastic, VISTAL® Optics material Plastic, PMMA Enclosure rating IP66 IP67 Ambient operating temperature –40 °C … +60 °C 12) 13) Ambient temperature, storage –40 °C … +75 °C UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters MTTFD 709 years DCavg 0 % Classifications ECLASS 5.0 27270902 ECLASS 5.1.4 27270902 ECLASS 6.0 27270902 ECLASS 6.2 27270902 ECLASS 7.0 27270902 ECLASS 8.0 27270902 ECLASS 8.1 27270902 ECLASS 9.0 27270902 ECLASS 10.0 27270902 ECLASS 11.0 27270902 ECLASS 12.0 27270902 ETIM 5.0 EC002717 ETIM 6.0 EC002717 ETIM 7.0 EC002717 ETIM 8.0 EC002717 UNSPSC 16.0901 39121528
