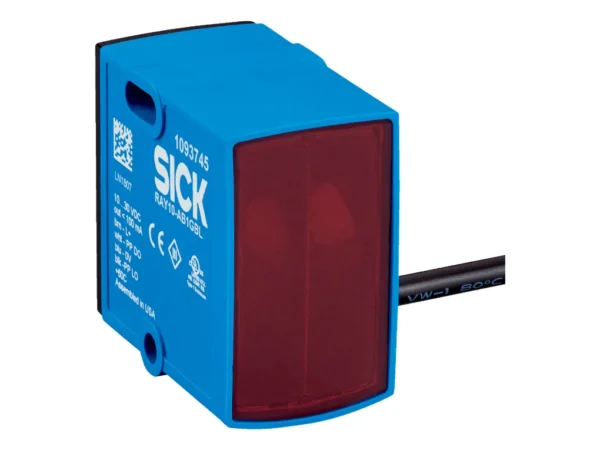

Name: SICK 1096103 | Fotoelektrik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 1096103
Price: 3200.00 TRY
Availability: InStock

Tecnichal data

Features

Functional principle	Photoelectric retro-reflective sensor
Functional principle detail	Dual lens, Reflex Array
Dimensions (W x H x D)	21.5 mm x 36 mm x 37.7 mm
Housing design (light emission)	Rectangular
Minimum object size	5 mm, position-independent detection within the light array
Detection height	25 mm
Sensing range max.	0 m … 1.5 m
Distance of the sensor to reflector	0.3 m … 1.5 m
Type of light	Visible red light
Light source	PinPoint LED
Light spot size (distance)	37 mm x 12 mm (1 m)
Wave length	635 nm
Adjustment	Potentiometer IO-Link
Pin 2 configuration	External Input (test), Teach-in, switching signal
Special applications	Detecting transparent objects, Detecting perforated objects, Detecting uneven, shiny objects, Detecting objects with position tolerances, Detecting flat objects

Mechanics/electronics

Supply voltage U_B	10 V DC … 30 V DC
Ripple	< 5 V_pp
Current consumption	30 mA
Switching output	Push-pull: PNP/NPN
Output: Q_L1 / C	Switching output or IO-Link mode
Output function	Factory setting: Pin 2 / white (MF): NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black (QL1 / C): NPN normally open (dark switching), PNP normally closed (light switching), IO-Link
Switching mode	Light/dark switching
Switching mode selector	Via IO-Link
Signal voltage PNP HIGH/LOW	Approx. V_S – 2.5 V / 0 V
Signal voltage NPN HIGH/LOW	Approx. VS / < 2.5 V
Output current I_max.	≤ 100 mA
Response time	≤ 0.5 ms
Switching frequency	1,000 Hz
Connection type	Cable with M12 male connector, 4-pin, 1 m
Cable material	PVC
Conductor cross section	0.13 mm²
Cable diameter	Ø 3.6 mm
Circuit protection	A B C D ¹⁰⁾
Protection class	III
Weight	130 g
Housing material	Plastic, ABS
Optics material	Plastic, PMMA
Enclosure rating	IP67
Ambient operating temperature	–40 °C … +60 °C ¹¹⁾
Ambient temperature, storage	–40 °C … +70 °C
UL File No.	NRKH.E189383 & NRKH7.E189383

Safety-related parameters

Communication interface

Communication interface	IO-Link V1.1
Communication Interface detail	COM2 (38,4 kBaud)
Cycle time	2.3 ms
Process data length	16 Bit
Process data structure	Bit 0 = switching signal Q_L1 Bit 1 = switching signal Q_L2 Bit 2 … 15 = empty
VendorID	26
DeviceID HEX	0x8001DD
DeviceID DEC	8389085

Smart Task

Smart Task name

Base logics

Logic function

Direct

AND

Window

Hysteresis

Timer function

Deactivated

On delay

Off delay

ON and OFF delay

Impulse (one shot)

Inverter

Yes

Switching frequency

SIO Direct: 500 Hz

SIO Logic: 500 Hz

IOL: 217 Hz

Response time

SIO Direct: 1 ms

SIO Logic: 1 ms

IOL: 2,3 ms

Repeatability

SIO Direct: 1 ms

SIO Logic: 1 ms

IOL: 2,3 ms

Diagnosis
