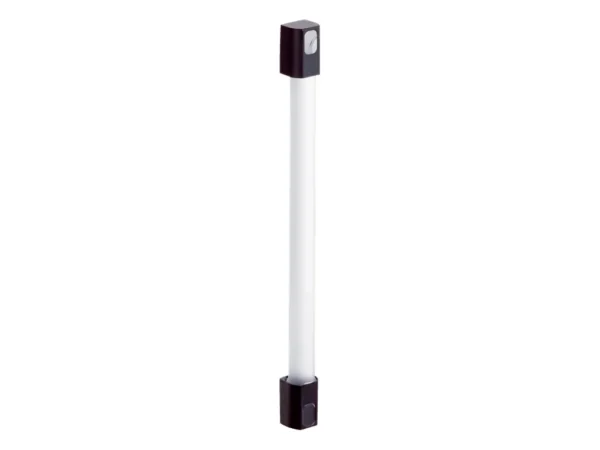

Home Diğer (Montaj / Aksesuar) PSN01-3501 – 1103066 🔍 PSN01-3501 – 1103066 ✉ Teklif Al Teklif Al Stok kodu: 1103066 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Application Normal industrial environment Functional principle Active/passive System part Passive unit Type of diversion Prism deflection Scanning range category Great scanning range Scanning range 8 m Dimension of the light path Typical 0.5 m … 8 m Number of beams 2 Beam separation 500 mm Items supplied Passive unit Mechanical data Dimensions See dimensional drawing Housing cross-section 38.9 mm x 43.7 mm Material Housing PMMA Weight + 575 g (± 50 g) Ambient data Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications eCl@ss 5.0 27272703 eCl@ss 5.1.4 27272703 eCl@ss 6.0 27272703 eCl@ss 6.2 27272703 eCl@ss 7.0 27272703 eCl@ss 8.0 27272703 eCl@ss 8.1 27272703 eCl@ss 9.0 27272703 eCl@ss 10.0 27272703 eCl@ss 11.0 27272703 eCl@ss 12.0 27272703 ETIM 5.0 EC001832 ETIM 6.0 EC001832 ETIM 7.0 EC001832 ETIM 8.0 EC001832 UNSPSC 16.0901 46171620 İlgili ürünler IE-SFP/1250-ED SSLX-SM1310/PLUS-SC – 808-38223AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED MM850-LC – SFP-GMM-550AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-SX, MM 550M – SFP-1000SX-M-550M-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1310-SC – 808-38221AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Application Normal industrial environment Functional principle Active/passive System part Passive unit Type of diversion Prism deflection Scanning range category Great scanning range Scanning range 8 m Dimension of the light path Typical 0.5 m … 8 m Number of beams 2 Beam separation 500 mm Items supplied Passive unit Mechanical data Dimensions See dimensional drawing Housing cross-section 38.9 mm x 43.7 mm Material Housing PMMA Weight + 575 g (± 50 g) Ambient data Ambient operating temperature –30 °C … +55 °C Storage temperature –30 °C … +70 °C Air humidity 15 % … 95 %, Non-condensing Vibration resistance 5 g, 10 Hz … 55 Hz (IEC 60068-2-6) Shock resistance 10 g, 16 ms (IEC 60068-2-27) Classifications eCl@ss 5.0 27272703 eCl@ss 5.1.4 27272703 eCl@ss 6.0 27272703 eCl@ss 6.2 27272703 eCl@ss 7.0 27272703 eCl@ss 8.0 27272703 eCl@ss 8.1 27272703 eCl@ss 9.0 27272703 eCl@ss 10.0 27272703 eCl@ss 11.0 27272703 eCl@ss 12.0 27272703 ETIM 5.0 EC001832 ETIM 6.0 EC001832 ETIM 7.0 EC001832 ETIM 8.0 EC001832 UNSPSC 16.0901 46171620
