Tecnichal data
| Number of indicator lights | 1 |
| Illumination lamp type | LED |
| Operator construction/material | Plastic |
| Illumination module type | Full voltage |
| Illumination module input voltage | 12…130V AC/DC |
| Operator illuminated | Yes |
| Hole diameter | 30.5 mm |
| Type of electric connection | Screw connection |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |

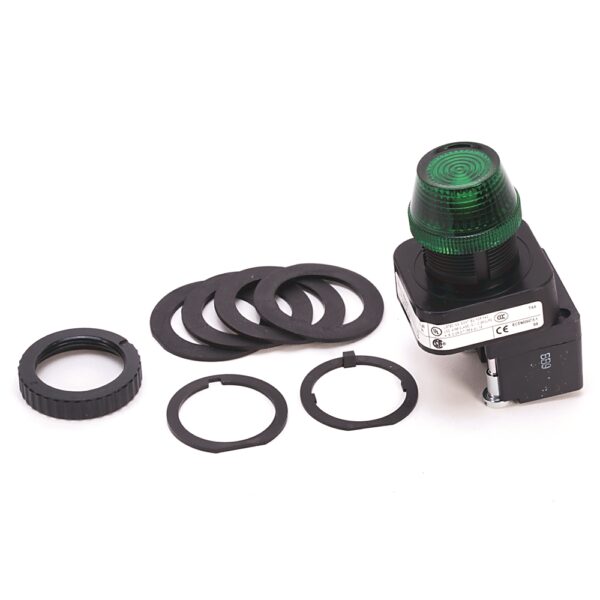

| Operator type | Pilot light |
| Vibration | 10 G maximum |
| Shock | 100 G (no damage) |
| Illumination module termination wire range | 14 – 18 AWG (x2) |
| Illumination module termination tightening torque | 6 – 8 lb – in / 0.7 – 0.9 N-m |
| Terminations with finger safe covers | No |
| Operator cap/button shape | Round |
| Operator cap type | Fresnal |
| Operator cap color | Green |
| Operator cap/button material | Plastic |
| Operating temperature | -25 ðC |
| Hazardous location rating | Class I, div. 2 |
| Humidity | 50 % |
| Storage temperature | -40 ðC |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
