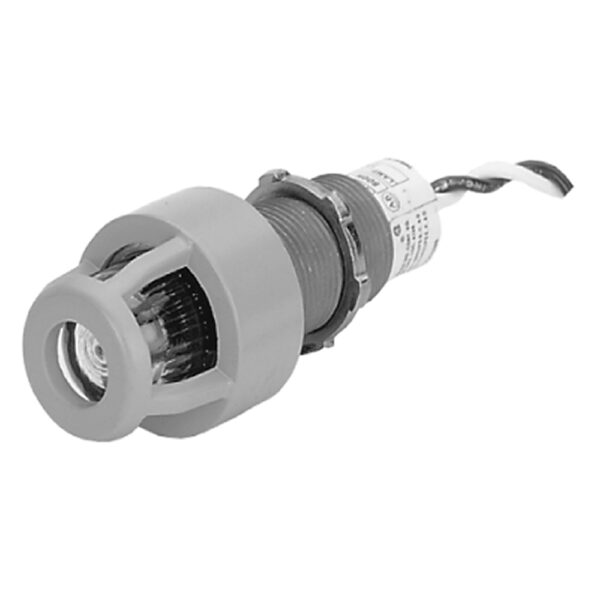

Tecnichal data
| Number of indicator lights | 1 |
| With light source | Yes |
| Type of lamp socket | LED |
| Rated supply voltage | 120V AC/DC |
| Power module type | Pigtail full voltage |
| Lamp test type | Pilot light with LED lamp |
| Dielectric strength | 2200V for 1 minute, 1300V for 1 minute (Logic Reed) |
| With front ring | No |
| Construction type lens | Round |
| Lens color | Multi-color insert packet (amber, blue, green, red, white) |
| Type of lens | High |
| Finger-safe guards | No guards on terminals |
| Type of electric connection | Screw connection |
| Vibration | 10…2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum |
| Shock | 1/2 cycle sine wave for 11 ms ââ°¥25 G (contact fragility) and no damage at 100 G |
| Terminal screw torque | 6 lb.in |
| Wire gauge | 18 AWG |
| Mechanical life operations | 250000 minimum |
| Degree of protection | Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories) |
| Operating temperature | -20 ðC |
| Humidity | 50% at 104 ðF (40 ðC) |
| Storage temperature | -40 ðC |
