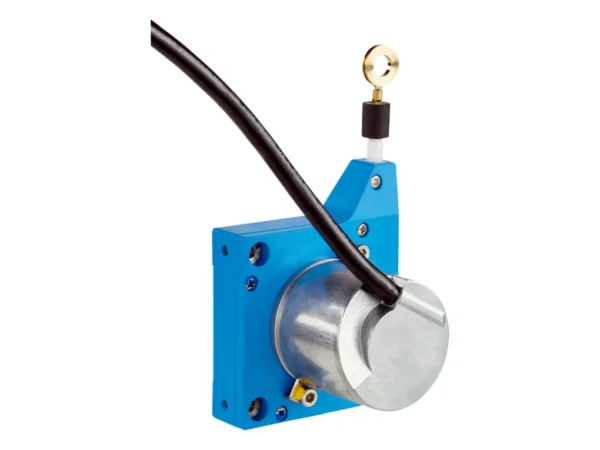

Home Enkoderler PFG05-A1PM0160 – 1102769 🔍 PFG05-A1PM0160 – 1102769 ✉ Teklif Al Teklif Al Stok kodu: 1102769 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Measurement range 0 m … 1.25 m Encoder Incremental encoders Resolution (wire draw + encoder) 0.06 mm Repeatability ≤ 0.2 mm Linearity ≤ ± 2 mm Hysteresis ≤ 0.4 mm Interfaces Communication interface Incremental / TTL / RS-422 Electrical data Connection type Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m Supply voltage 4.5 V … 5.5 V Operating current ≤ 50 mA (without load) MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Weight 0.23 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A/PA 12-sheathed Measuring wire diameter 0.45 mm Weight (measuring wire) 0.58 g/m Housing material, wire draw mechanism Plastic, Noryl Spring return force 1 N … 1.4 N Length of wire pulled out per revolution 150 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 1.45 m Wire acceleration 10 m/s² Operating speed 6 m/s Mounted encoder DBS36 Core, DBS36E-SDAP02500, 1095510 Mounted mechanic MRA-G055-101D4, 5324019 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP50, mounted mechanic IP65, Encoder Operating temperature range –20 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP12BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP3BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Measurement range 0 m … 1.25 m Encoder Incremental encoders Resolution (wire draw + encoder) 0.06 mm Repeatability ≤ 0.2 mm Linearity ≤ ± 2 mm Hysteresis ≤ 0.4 mm Interfaces Communication interface Incremental / TTL / RS-422 Electrical data Connection type Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m Supply voltage 4.5 V … 5.5 V Operating current ≤ 50 mA (without load) MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Weight 0.23 kg Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A/PA 12-sheathed Measuring wire diameter 0.45 mm Weight (measuring wire) 0.58 g/m Housing material, wire draw mechanism Plastic, Noryl Spring return force 1 N … 1.4 N Length of wire pulled out per revolution 150 mm Life of wire draw mechanism Typ. 1,000,000 cycles Actual wire draw length 1.45 m Wire acceleration 10 m/s² Operating speed 6 m/s Mounted encoder DBS36 Core, DBS36E-SDAP02500, 1095510 Mounted mechanic MRA-G055-101D4, 5324019 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP50, mounted mechanic IP65, Encoder Operating temperature range –20 °C … +70 °C Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27270613 ECLASS 11.0 27270503 ECLASS 12.0 27270503 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
