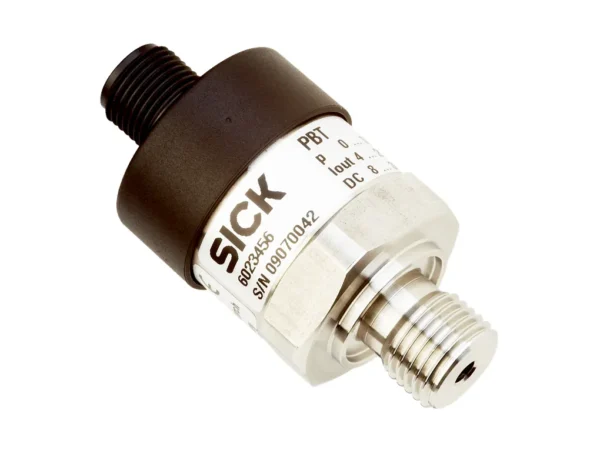

Home Basınç Sensörleri PBT-RB010SN1SS0AMA0Z – 6039256 🔍 PBT-RB010SN1SS0AMA0Z – 6039256 ✉ Teklif Al Teklif Al Stok kodu: 6039256 Kategoriler: Basınç Sensörleri Marka: SICK Açıklama Tecnichal data Features Medium Liquid, gaseous Pressure type Gauge pressure Pressure unit bar Measuring range 0 bar … 10 bar Process temperature 0 °C … +80 °C Maximum ohmic load RA 4 mA … 20 mA, 2-wire (RA ≤ (L+ – 8 V) / 0.02 A [Ohm]) 0 V … 10 V, 3-wire (RA > 10 kOhm) 0 V … 5 V, 3-wire (RA > 5 kOhm) Output signal 4 mA … 20 mA, 2-wire Specialty Without Mechanics/electronics Process connection ¼” NPT Wetted parts Pressure Connection: stainless steel 316L Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar … 10 bar rel stainless steel 13-8 PH) Internal transmission fluid Silicone oil (only with pressure ranges < 0 bar … 10 bar and ≤ 0 bar abs … 25 bar abs) Pressure port Standard Housing material Stainless steel Connection type M12 round connector x 1, 4-pin Supply voltage 8 V DC … 30 V DC Power consumption Signal current (max. 25 mA) for current output Max. 8 mA for voltage output signal Electrical safety Overvoltage protection: 32 V DC, 36 V DC with 4 mA … 20 mA Short-circuit protection: QA towards M Reverse polarity protection: L+ to M Protection class: III Isolation voltage 500 V DC CE-conformity Pressure equipment directive: 2014/68/EU EMC directive: 2014/30/EU, EN 61 326-2-3 Weight sensor Approx. 80 g Seal Without seal Enclosure rating IP67 Protection class III ✔ Reference conditions Reference conditions: According to IEC 61298-1 MTTF 815 years Performance Non-linearity ≤ ± 0.5 %, (Best Fit Straight Line, BFSL) according to IEC 61298-2 Accuracy ≤ ± 1 % of the span Adjustment accuracy of zero signal ≤ 0.5 % of span typ., ≤ 0.8 % of span max. (with non-linerarity 0.5 %) Hysteresis ≤ 0.16 % of the span Non-repeatability ≤ 0.1 % of the span Response time < 4 ms Signal noise ≤ 0.3 % of the span Long-term drift/one-year stability ≤ 0.1 % of span to IEC 61298-2 Rated temperature range 0 °C … +80 °C Service life Minimum 100 Mio. load cycles Ambient data Ambient temperature 0 °C … +80 °C Storage temperature –40 °C … +70 °C Relative humidity 45 % … 75 % Shock load 500 g according to IEC 60068-2-27 (mechanical shock) Vibration load 10 g according to IEC 60068-2-6 (vibration under resonance) 20 g optional Classifications eCl@ss 5.0 27200614 eCl@ss 5.1.4 27200614 eCl@ss 6.0 27200614 eCl@ss 6.2 27200614 eCl@ss 7.0 27200614 eCl@ss 8.0 27200614 eCl@ss 8.1 27200614 eCl@ss 9.0 27200614 eCl@ss 10.0 27200614 eCl@ss 11.0 27200614 eCl@ss 12.0 27200614 ETIM 5.0 EC011478 ETIM 6.0 EC011478 ETIM 7.0 EC011478 ETIM 8.0 EC011478 UNSPSC 16.0901 41112410 İlgili ürünler PAC50-BCD – 1062967SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-BGF – 1062963SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-BGB – 1062959SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-AGB – 1062946SICKBasınç Sensörleri ₺3.800,00 Ürüne Git
Tecnichal data Features Medium Liquid, gaseous Pressure type Gauge pressure Pressure unit bar Measuring range 0 bar … 10 bar Process temperature 0 °C … +80 °C Maximum ohmic load RA 4 mA … 20 mA, 2-wire (RA ≤ (L+ – 8 V) / 0.02 A [Ohm]) 0 V … 10 V, 3-wire (RA > 10 kOhm) 0 V … 5 V, 3-wire (RA > 5 kOhm) Output signal 4 mA … 20 mA, 2-wire Specialty Without Mechanics/electronics Process connection ¼” NPT Wetted parts Pressure Connection: stainless steel 316L Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar … 10 bar rel stainless steel 13-8 PH) Internal transmission fluid Silicone oil (only with pressure ranges < 0 bar … 10 bar and ≤ 0 bar abs … 25 bar abs) Pressure port Standard Housing material Stainless steel Connection type M12 round connector x 1, 4-pin Supply voltage 8 V DC … 30 V DC Power consumption Signal current (max. 25 mA) for current output Max. 8 mA for voltage output signal Electrical safety Overvoltage protection: 32 V DC, 36 V DC with 4 mA … 20 mA Short-circuit protection: QA towards M Reverse polarity protection: L+ to M Protection class: III Isolation voltage 500 V DC CE-conformity Pressure equipment directive: 2014/68/EU EMC directive: 2014/30/EU, EN 61 326-2-3 Weight sensor Approx. 80 g Seal Without seal Enclosure rating IP67 Protection class III ✔ Reference conditions Reference conditions: According to IEC 61298-1 MTTF 815 years Performance Non-linearity ≤ ± 0.5 %, (Best Fit Straight Line, BFSL) according to IEC 61298-2 Accuracy ≤ ± 1 % of the span Adjustment accuracy of zero signal ≤ 0.5 % of span typ., ≤ 0.8 % of span max. (with non-linerarity 0.5 %) Hysteresis ≤ 0.16 % of the span Non-repeatability ≤ 0.1 % of the span Response time < 4 ms Signal noise ≤ 0.3 % of the span Long-term drift/one-year stability ≤ 0.1 % of span to IEC 61298-2 Rated temperature range 0 °C … +80 °C Service life Minimum 100 Mio. load cycles Ambient data Ambient temperature 0 °C … +80 °C Storage temperature –40 °C … +70 °C Relative humidity 45 % … 75 % Shock load 500 g according to IEC 60068-2-27 (mechanical shock) Vibration load 10 g according to IEC 60068-2-6 (vibration under resonance) 20 g optional Classifications eCl@ss 5.0 27200614 eCl@ss 5.1.4 27200614 eCl@ss 6.0 27200614 eCl@ss 6.2 27200614 eCl@ss 7.0 27200614 eCl@ss 8.0 27200614 eCl@ss 8.1 27200614 eCl@ss 9.0 27200614 eCl@ss 10.0 27200614 eCl@ss 11.0 27200614 eCl@ss 12.0 27200614 ETIM 5.0 EC011478 ETIM 6.0 EC011478 ETIM 7.0 EC011478 ETIM 8.0 EC011478 UNSPSC 16.0901 41112410
