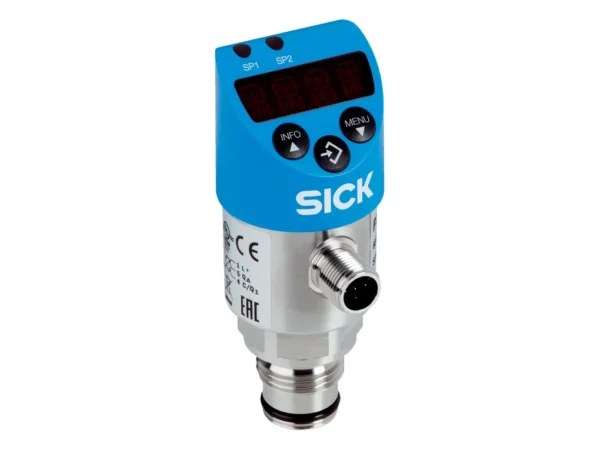

IO-Link/PNP/NPN + PNP/NPN + 4 mA … 20 mA / 0 V … 10 V
Rotatable housing
Display against housing with electrical connection: 330 °
Housing against process connection: 320 °
Display
14-Segment LED, red, 4-digit, character height 9 mm, can be rotated electronically by 180°
Update: 1,000, 500, 200, 100 ms (adjustable)
Mechanics/electronics
Process connection
G ½ B flush mounted
Wetted parts
Pressure connection: stainless steel 316L
Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar … 10 bar rel stainless steel 13-8 PH)
Internal transmission fluid
Silicone oil (only with pressure ranges < 0 bar … 10 bar and ≤ 0 bar abs … 25 bar abs)
Pressure port
Front-flush membrane
Housing material
Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC
Connection type
Round connector M12 x 1, 5-pin
Supply voltage
15 V DC … 35 V DC
Power consumption
45 mA (for configurations without analog output signal)
70 mA (for configurations with analog output signal)
Total current consumption
Max. 600 mA (including switching current)
Electrical safety
Protection class: III
Overvoltage protection: 40 V DC
Short-circuit protection: QA, Q1, Q2 towards M
Reverse polarity protection: L+ to M
Isolation voltage
500 V DC
CE-conformity
EMC Directive: 2014/30 / EU (EN 61326-1:2013; EN 61326-2-3:2013), Pressure equipment directive: 2014/68 / EU, Hazardous materials (RoHS): 2011/65 / EU (EN 50581:2012)
Weight sensor
Approx. 220 g
Seal
NBR seal installed, FPM/FKM seal included
Enclosure rating
IP67
Protection class III
✔
MTTF
104 years
Performance
Non-linearity
≤ ± 0.25 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2
Accuracy
≤ ± 0.5 % of the span
Setting accuracy of switching outputs
≤ ± 0.5 % of span
Response time
≤ 5 ms
Long-term drift/one-year stability
≤ ± 0.1 % of the span according to IEC 61298-2
≤ 0.2 % of the span According to IEC 61298-2 for measuring range ≤ 0.6 bar or flush-mounted membrane (0 psi … 10 psi)
Temperature coefficient in rated temperature range
Average TC of the zero point: ≤± 0.16% of the span / 10 K
Average TC of the span ≤± 0.16% of the span / 10 K
Rated temperature range
0 °C … +80 °C
Service life
Minimum 100 Mio. load cycles
Ambient data
Ambient temperature
–20 °C … +80 °C
Storage temperature
–20 °C … +70 °C
Relative humidity
≤ 75 %
Shock load
50 g, 6 ms according to IEC 60068-2-27 (mechanical shock)
