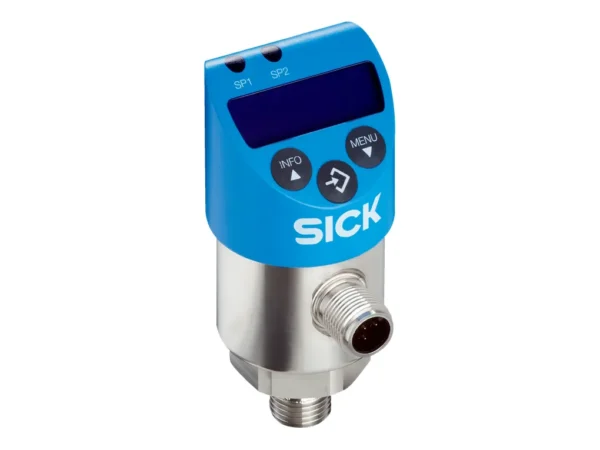

Home Basınç Sensörleri PBS-RP1K5SN1SS0GMA0Z – 6049747 🔍 PBS-RP1K5SN1SS0GMA0Z – 6049747 ✉ Teklif Al Teklif Al Stok kodu: 6049747 Kategoriler: Basınç Sensörleri Marka: SICK Açıklama Tecnichal data Features Medium Liquid, gaseous Pressure type Gauge pressure Pressure unit psi Measuring range 0 psi … 1,500 psi Process temperature –20 °C … +85 °C Maximum ohmic load RA 4 mA … 20 mA (RA ≤ 0.5 kOhm) 0 V … 10 V, 3-wire (RA > 10 kOhm) Zero point adjustment Max. + 3 % of span Output signal 1 x NPN + 4 mA … 20 mA Rotatable housing Display against housing with electrical connection: 330 ° Housing against process connection: 320 ° Display 14-segment-LED, blue, 4-digits, height 9 mm, electronically turnable by 180° Accuracy: ≤ 1 % of span ± 1 digit Update: 1,000, 500, 200, 100 ms (adjustable) Mechanics/electronics Process connection ¼” NPT Wetted parts Pressure connection: stainless steel 316L Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar … 10 bar rel stainless steel 13-8 PH) Internal transmission fluid Silicone oil (only with pressure ranges < 0 bar … 10 bar and ≤ 0 bar abs … 25 bar abs) Pressure port 3.5 mm Standard Housing material Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC Connection type M12 round connector x 1, 4-pin Supply voltage 15 V DC … 35 V DC Power consumption 45 mA (for configurations without analog output signal) 70 mA (for configurations with analog output signal) Total current consumption Max. 350 mA / 570 mA (incl. switching current) Electrical safety Protection class: III Overvoltage protection: 40 V DC Short-circuit protection: QA, Q1, Q2 towards M Reverse polarity protection: L+ to M Isolation voltage 500 V DC CE-conformity Pressure equipment directive: This instrument is a pressure accessory as defined by the directive 97/23/EC, EMC directive: 2004/108/EC, EN 61326-2-3 Weight sensor Approx. 200 g Seal Without seal Enclosure rating IP67 Protection class III ✔ MTTF 202 years Performance Non-linearity ≤ ± 0.5 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 Accuracy ≤ ± 1 % of the span Setting accuracy of switching outputs ≤ ± 0.5 % of span Response time 3 ms Long-term drift/one-year stability ≤ 0.2 % of the span according to IEC 61298-2 Temperature coefficient in rated temperature range Mean TC of zero point: ≤ 0.2% of span / 10 K Mean TC of span ≤ 0.2 % of span / 10 K Rated temperature range 0 °C … +80 °C Service life Minimum 100 Mio. load cycles Ambient data Ambient temperature –20 °C … +80 °C Storage temperature –20 °C … +80 °C Relative humidity ≤ 90 % Shock load 50 g according to IEC 60068-2-27 (mechanical shock) Vibration load 10 g according to IEC 60068-2-6 (vibration under resonance) Classifications eCl@ss 5.0 27200620 eCl@ss 5.1.4 27200620 eCl@ss 6.0 27200620 eCl@ss 6.2 27200620 eCl@ss 7.0 27200620 eCl@ss 8.0 27200620 eCl@ss 8.1 27200620 eCl@ss 9.0 27200620 eCl@ss 10.0 27200620 eCl@ss 11.0 27200620 eCl@ss 12.0 27200620 ETIM 5.0 EC000243 ETIM 6.0 EC000243 ETIM 7.0 EC000243 ETIM 8.0 EC000243 UNSPSC 16.0901 41112409 İlgili ürünler PAC50-BCF – 1062969SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-AGA – 1062945SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-BCD – 1062967SICKBasınç Sensörleri ₺3.800,00 Ürüne Git PAC50-CGB – 1062971SICKBasınç Sensörleri ₺3.800,00 Ürüne Git
Tecnichal data Features Medium Liquid, gaseous Pressure type Gauge pressure Pressure unit psi Measuring range 0 psi … 1,500 psi Process temperature –20 °C … +85 °C Maximum ohmic load RA 4 mA … 20 mA (RA ≤ 0.5 kOhm) 0 V … 10 V, 3-wire (RA > 10 kOhm) Zero point adjustment Max. + 3 % of span Output signal 1 x NPN + 4 mA … 20 mA Rotatable housing Display against housing with electrical connection: 330 ° Housing against process connection: 320 ° Display 14-segment-LED, blue, 4-digits, height 9 mm, electronically turnable by 180° Accuracy: ≤ 1 % of span ± 1 digit Update: 1,000, 500, 200, 100 ms (adjustable) Mechanics/electronics Process connection ¼” NPT Wetted parts Pressure connection: stainless steel 316L Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar … 10 bar rel stainless steel 13-8 PH) Internal transmission fluid Silicone oil (only with pressure ranges < 0 bar … 10 bar and ≤ 0 bar abs … 25 bar abs) Pressure port 3.5 mm Standard Housing material Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC Connection type M12 round connector x 1, 4-pin Supply voltage 15 V DC … 35 V DC Power consumption 45 mA (for configurations without analog output signal) 70 mA (for configurations with analog output signal) Total current consumption Max. 350 mA / 570 mA (incl. switching current) Electrical safety Protection class: III Overvoltage protection: 40 V DC Short-circuit protection: QA, Q1, Q2 towards M Reverse polarity protection: L+ to M Isolation voltage 500 V DC CE-conformity Pressure equipment directive: This instrument is a pressure accessory as defined by the directive 97/23/EC, EMC directive: 2004/108/EC, EN 61326-2-3 Weight sensor Approx. 200 g Seal Without seal Enclosure rating IP67 Protection class III ✔ MTTF 202 years Performance Non-linearity ≤ ± 0.5 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 Accuracy ≤ ± 1 % of the span Setting accuracy of switching outputs ≤ ± 0.5 % of span Response time 3 ms Long-term drift/one-year stability ≤ 0.2 % of the span according to IEC 61298-2 Temperature coefficient in rated temperature range Mean TC of zero point: ≤ 0.2% of span / 10 K Mean TC of span ≤ 0.2 % of span / 10 K Rated temperature range 0 °C … +80 °C Service life Minimum 100 Mio. load cycles Ambient data Ambient temperature –20 °C … +80 °C Storage temperature –20 °C … +80 °C Relative humidity ≤ 90 % Shock load 50 g according to IEC 60068-2-27 (mechanical shock) Vibration load 10 g according to IEC 60068-2-6 (vibration under resonance) Classifications eCl@ss 5.0 27200620 eCl@ss 5.1.4 27200620 eCl@ss 6.0 27200620 eCl@ss 6.2 27200620 eCl@ss 7.0 27200620 eCl@ss 8.0 27200620 eCl@ss 8.1 27200620 eCl@ss 9.0 27200620 eCl@ss 10.0 27200620 eCl@ss 11.0 27200620 eCl@ss 12.0 27200620 ETIM 5.0 EC000243 ETIM 6.0 EC000243 ETIM 7.0 EC000243 ETIM 8.0 EC000243 UNSPSC 16.0901 41112409
