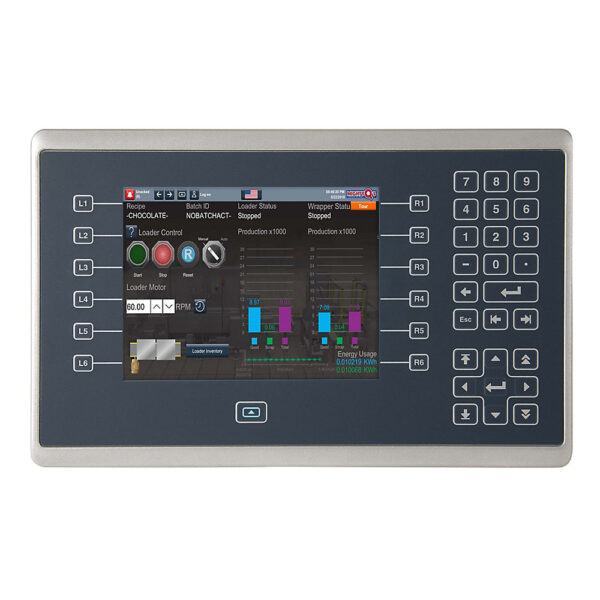

Tecnichal data
| Number of HW-interfaces industrial Ethernet | 2 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Number of system buttons | 1 |
| Voltage type of supply voltage | DC |
| Number of function buttons, programmable | 0 |
| Suitable for safety functions | No |
| Supporting protocol for TCP/IP | Yes |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| With colour display | Yes |
| With numeric keyboard | Yes |
| With alpha numeric keyboard | No |
| With message indication | Yes |
| With message system (incl. buffer and confirmation) | No |
| Process value representation (output) possible | Yes |
| Process default value (input) possible | No |
| With recipes | No |
| With printer output | No |
| Supporting protocol for EtherNet/IP | Yes |
| Screen diagonal | 6.5 inch |
| Supply voltage DC | 18 V |
| Touch technology | Resistive touch |
| Power consumption, max | 22 W |
| Power consumption, typical | 12 W |
| With Allen-Bradley brand marking | No |
| Backlight power consumption, typical | 3 W |
| Aspect ratio | 4:3 |
| Display resolution | 640 x 480 VGA |
| USB host port | 0.5 A at 5V DC (Type A) |
| Status indicator | STS (status, green), ERR (error, red) |
| Operator input | Touch with keypad plus menu navigation button |
| Input voltage, nom | 24V DC (18…30V DC) |
| Memory | RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects |
| Power supply | Supports SELV and PELV 24V DC supplies |
| Touch screen | Analog resistive, Actuation rating: 1 million presses, Operating force: <100 grams |
| Backlight | Type: light-emitting diode, non-replaceable, Life: 50000 hour minimum at 40 ðC (104 ðF) to half-brightness |
| Ethernet ports | Two 10/100Base-T, Auto MDI/MDI-X Ethernet ports that support (Device Level Ring) DLR, linear, or star network topologies. |
| Keypad | 12 function keys: L1…L6, R1…R6, Numeric keypad and navigation keys, Actuating rating: 1 million presses, Operating force: 300 grams |
| Software | Studio 5000 environment provides single portal to View Designer and Logix Designer applications |
| Secure Digital (SD) card slot | One SD card slot for external storage, Supports cat. no. 1784-SDx cards |
| USB ports | Host: two USB 2.0 high-speed (type A) host port to support removable USB drives for external storage, Device: one USB 2.0 high-speed (type B) device port to connect to a host computer that is software-feature dependent. |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces Wireless | 0 |
| Number of buttons with LED | 0 |
| Supporting protocol for LON | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Radio standard Bluetooth | No |
| Radio standard Wi-Fi 802.11 | No |
| IO link master | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Radio standard UMTS | No |
| With SW interfaces | Yes |
| Type of display | TFT |
| Inrush current, typical | 7 A |
| Brightness, typical | 300 cd/mò |
| Color depth | 24-bit color graphics (16.7 million colors) |
| Battery (real-time clock backup) | Accuracy: ñ2 minutes per month, Battery life: 4 years minimum at 25 ðC (77 ðF), Replacement: CR2032 lithium coin cell (Allen-Bradley part number 2711P-RY2032) |
| Degree of protection (NEMA), front side | 4X |
| Degree of protection (IP), front side | IP66 |
| Operating temperature | 0 ðC |
| Conformal coated | Yes |
| Power dissipation | 41 BTU/hr |
| List of degrees of protection (NEMA) | 4X, 12, 13 |
| Shock | Operating: 15 G @ 11 ms, Nonoperating: 30 G @ 11 ms |
| Vibration | 0.012 peak-peak, 10…57 Hz, 2 G peak at 57…500 Hz |
| Relative humidity | 5…95% noncondensing |
| Altitude, operating | 2000 m |
| Nonoperating temperature | -25 ðC |
| Width of the front | 285 mm |
| Height of the front | 178 mm |
| Wall mounting/direct mounting | Yes |
| Mounted depth | 64 mm |
| Cutout dimensions, approx | Height: 142 mm (5.59 inch), Width: 237 mm (9.33) inch) |
| Rail mounting possible | No |
| Overall depth | 69.5 mm |
| Weight, approx | 2.27 g |
| View area | Width: 132 mm (5.2 inch), Height: 99 mm (3.9 inch) |
