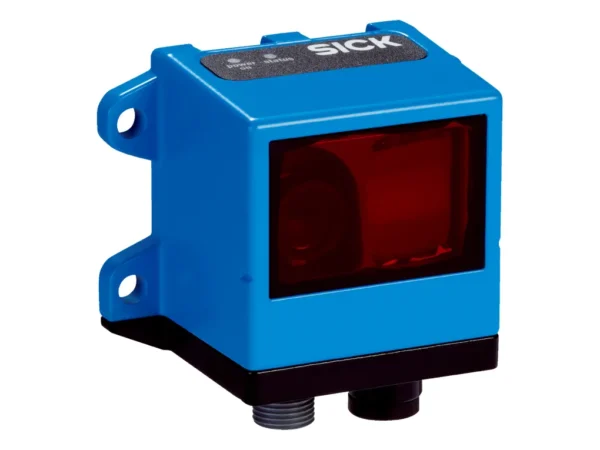

Home Diğer (Montaj / Aksesuar) OLM100-1201S03 – 1071962 🔍 OLM100-1201S03 – 1071962 ✉ Teklif Al Teklif Al Stok kodu: 1071962 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Ripple ≤ 5 Vpp Power consumption < 5.5 W Initialization time < 3 s Enclosure rating IP65 Protection class III Performance Measuring range 0 m … 10,000 m Resolution 0.1 mm, 1 mm Repeatability 0.15 mm Response time 10 ms Light source LED, red Max. movement speed 7 m/s Reading distance 100 mm, ± 20 mm Barcode width 30 mm Interfaces SSI ✔ Digital input Multifunctional input MF1 Digital output Number 1 Type Push-pull: PNP/NPN Function Position, speed, control mark Q00 (off), Q01 (on), illumination on/off, service [failure (dirt/LED service life), no barcode tape, over/under temperature, out of measuring range 0 km > position > 10 km, internal error] Maximum output current IA ≤ 100 mA Ambient data Electromagnetic compatibility (EMC) EN 61000-6-2 EN 61000-6-4 Ambient temperature, operation –30 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Typ. Ambient light immunity ≤ 5,000 lx Vibration resistance DIN/EN 60068-2-6, DIN/EN 60068-2-64 Shock resistance DIN/EN 60068-2-27 Classifications eCl@ss 5.0 27270890 eCl@ss 5.1.4 27270890 eCl@ss 6.0 27270890 eCl@ss 6.2 27270890 eCl@ss 7.0 27270890 eCl@ss 8.0 27270890 eCl@ss 8.1 27270890 eCl@ss 9.0 27270890 eCl@ss 10.0 27270890 eCl@ss 11.0 27270890 eCl@ss 12.0 27280106 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 39121528 İlgili ürünler IE-SFP/1250-ED SSLX-SM1310/PLUS-LC – 808-38723AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1490-LC – 808-38728AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1310/PLUS-SC – 808-38223AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP+-10G-SR-IT, 850nm, MM, 400m – 40 85? – SFP-XMM-LCI-400AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Mechanics/electronics Supply voltage Vs DC 10 V … 30 V Ripple ≤ 5 Vpp Power consumption < 5.5 W Initialization time < 3 s Enclosure rating IP65 Protection class III Performance Measuring range 0 m … 10,000 m Resolution 0.1 mm, 1 mm Repeatability 0.15 mm Response time 10 ms Light source LED, red Max. movement speed 7 m/s Reading distance 100 mm, ± 20 mm Barcode width 30 mm Interfaces SSI ✔ Digital input Multifunctional input MF1 Digital output Number 1 Type Push-pull: PNP/NPN Function Position, speed, control mark Q00 (off), Q01 (on), illumination on/off, service [failure (dirt/LED service life), no barcode tape, over/under temperature, out of measuring range 0 km > position > 10 km, internal error] Maximum output current IA ≤ 100 mA Ambient data Electromagnetic compatibility (EMC) EN 61000-6-2 EN 61000-6-4 Ambient temperature, operation –30 °C … +60 °C Ambient temperature, storage –40 °C … +75 °C Typ. Ambient light immunity ≤ 5,000 lx Vibration resistance DIN/EN 60068-2-6, DIN/EN 60068-2-64 Shock resistance DIN/EN 60068-2-27 Classifications eCl@ss 5.0 27270890 eCl@ss 5.1.4 27270890 eCl@ss 6.0 27270890 eCl@ss 6.2 27270890 eCl@ss 7.0 27270890 eCl@ss 8.0 27270890 eCl@ss 8.1 27270890 eCl@ss 9.0 27270890 eCl@ss 10.0 27270890 eCl@ss 11.0 27270890 eCl@ss 12.0 27280106 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 39121528
