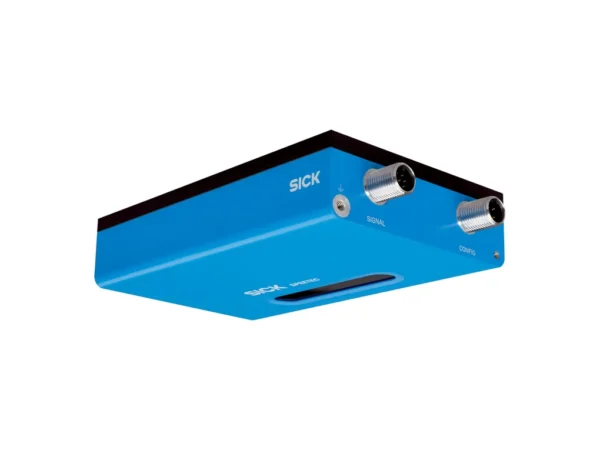

Open up new fields of application in motion monitoring. SPEETEC closes the gap between tactile measuring wheel systems and complex laser Doppler sensors – and is suitable for almost all surfaces and objects thanks to the non-contact measurement.
Non-contact measurement on moving objects without measuring elements.
Class 1 laser
Safety-related parameters
MTTFd: mean time to dangerous failure
33 years
System
Light source
2 continuous beam lasers
Wave length
850 nm
Laser class
1 (IEC 60825-1:2014)
Type of light
Invisible infrared light
Typ. measurement field size (distance)
2 mm x 3 mm (at 50 mm)
8 mm x 3 mm (at 45 mm)
8 mm x 3 mm (at 55 mm)
Laser power (per laser)
0.78 mW
Performance
Nominal measuring distance
50 mm
Static mounting tolerance
Ca. ± 5 mm
Possible static measuring distance
30 … 100 mm
Direction of movement
1D, x-direction
Start/stop
Possible
Movement detection
Bidirectional
Measuring increment (µm/pulse)
500
Speed measuring range
> 0 m/s … 10 m/s
Permissible acceleration
≤ 30 m/s²
Accuracy
Measurement accuracy
0.1 %
Repeatability
0.05 %
Internal sampling rate
330 µs
Latency
2.9 ms
Electrical data
Supply voltage
12 V … 30 V
Communication interface
HTL / Push pull
Output frequency
≤ 625 kHz
Connection type
Male connector, M12, 8-pin, A-coded
Parameterization and diagnostic interface with digital input and output
