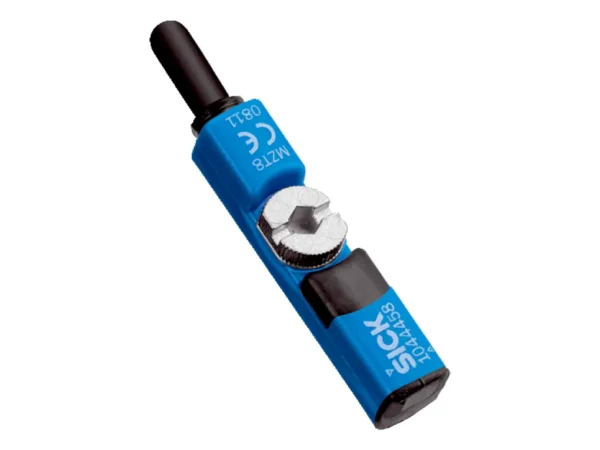

Home Manyetik Sensörler MZT8-2V6PSTKWD – 1073271 🔍 MZT8-2V6PSTKWD – 1073271 ✉ Teklif Al Teklif Al Stok kodu: 1073271 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Cylinder type T-slot Cylinder types with adapter Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 Housing length 24 mm Switching output PNP Switching frequency 1,000 Hz Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 IP69K Special features Extended operating temperature Mechanics/electronics Supply voltage 10 V DC … 24 V DC Power consumption 10 mA, without load Voltage drop ≤ 2.2 V Continuous current Ia ≤ 50 mA Protection class III Time delay before availability 25 ms Response sensitivity, typ. 2.6 mT Overrun distance, typ. 3 mm Hysteresis, typ. 0.7 mT Reproducibility ≤ 0.1 mT Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Power-up pulse protection Yes Ambient operating temperature 0 °C … +100 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable, 3-wire, 10 m Connection type Detail Conductor cross section 0.14 mm² Cable diameter Ø 2.9 mm Bending radius With fixed installation > 4 x cable diameter For flexible use > 8 x cable diameter Cable outlet Axial Material Housing Plastic, PA12 Cable PVC Safety-related parameters MTTFD 2,289 years DCavg 0 % TM (mission time) 20 years Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler MZT8-2V6PSAKP0 – 1073264SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZC1-4V3PO-KU0 – 1063549SICKManyetik Sensörler ₺2.200,00 Ürüne Git RZC1-04ZUS-KU0S01 – 1065397SICKManyetik Sensörler ₺850,00 Ürüne Git MZT8-03VPS-KQX – 1073407SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Cylinder type T-slot Cylinder types with adapter Profile cylinder Tie rod cylinder Round body cylinder Dovetail groove cylinder SMC rail CDQ2 SMC rail ECDQ2 Housing length 24 mm Switching output PNP Switching frequency 1,000 Hz Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 IP69K Special features Extended operating temperature Mechanics/electronics Supply voltage 10 V DC … 24 V DC Power consumption 10 mA, without load Voltage drop ≤ 2.2 V Continuous current Ia ≤ 50 mA Protection class III Time delay before availability 25 ms Response sensitivity, typ. 2.6 mT Overrun distance, typ. 3 mm Hysteresis, typ. 0.7 mT Reproducibility ≤ 0.1 mT Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Power-up pulse protection Yes Ambient operating temperature 0 °C … +100 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable, 3-wire, 10 m Connection type Detail Conductor cross section 0.14 mm² Cable diameter Ø 2.9 mm Bending radius With fixed installation > 4 x cable diameter For flexible use > 8 x cable diameter Cable outlet Axial Material Housing Plastic, PA12 Cable PVC Safety-related parameters MTTFD 2,289 years DCavg 0 % TM (mission time) 20 years Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
