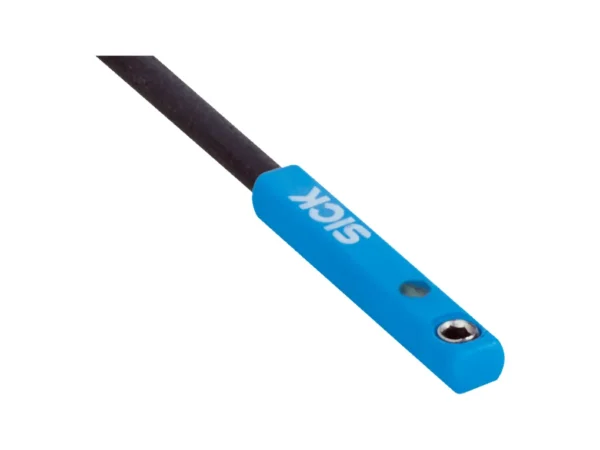

Home Manyetik Sensörler MZC2-1V7PS-FR0 – 1099965 🔍 MZC2-1V7PS-FR0 – 1099965 ✉ Teklif Al Teklif Al Stok kodu: 1099965 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Cylinder type C-slot Preferred manufacturer slot Festo, Zimmer, Gimatic Housing length 19.5 mm Switching output PNP Switching frequency 1,000 Hz Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Completely embedded mounting in the slot, providing protection Mechanics/electronics Supply voltage 10 V DC … 30 V DC Power consumption 8 mA, without load Voltage drop ≤ 2.5 V Continuous current Ia ≤ 100 mA Protection class III Response sensitivity, typ. ≤ 1.7 mT Overrun distance, typ. 2 mm Hysteresis, typ. ≤ 0.4 mT Reproducibility ≤ 0.1 mT Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Power-up pulse protection Yes Ambient operating temperature –25 °C … +75 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with connector M8, 3-pin, with knurled nuts, drag chain use, 0.5 m Connection type Detail Conductor cross section 0.09 mm² Cable diameter Ø 1.9 mm Bending radius With fixed installation = 12 x cable diameter For flexible use = 15 x cable diameter Cable outlet Axial Material Housing Plastic Cable PUR UL File No. E181493 Safety-related parameters MTTFD 1,469 years DCavg 0 % TM (mission time) 20 years Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler MZT8-2V6PSTKWD – 1073271SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-256TLTQ0 – 1062520SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-2V6PSTKP0 – 1073268SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-03VPS-KWX – 1073405SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Cylinder type C-slot Preferred manufacturer slot Festo, Zimmer, Gimatic Housing length 19.5 mm Switching output PNP Switching frequency 1,000 Hz Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Special features Completely embedded mounting in the slot, providing protection Mechanics/electronics Supply voltage 10 V DC … 30 V DC Power consumption 8 mA, without load Voltage drop ≤ 2.5 V Continuous current Ia ≤ 100 mA Protection class III Response sensitivity, typ. ≤ 1.7 mT Overrun distance, typ. 2 mm Hysteresis, typ. ≤ 0.4 mT Reproducibility ≤ 0.1 mT Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Power-up pulse protection Yes Ambient operating temperature –25 °C … +75 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with connector M8, 3-pin, with knurled nuts, drag chain use, 0.5 m Connection type Detail Conductor cross section 0.09 mm² Cable diameter Ø 1.9 mm Bending radius With fixed installation = 12 x cable diameter For flexible use = 15 x cable diameter Cable outlet Axial Material Housing Plastic Cable PUR UL File No. E181493 Safety-related parameters MTTFD 1,469 years DCavg 0 % TM (mission time) 20 years Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
