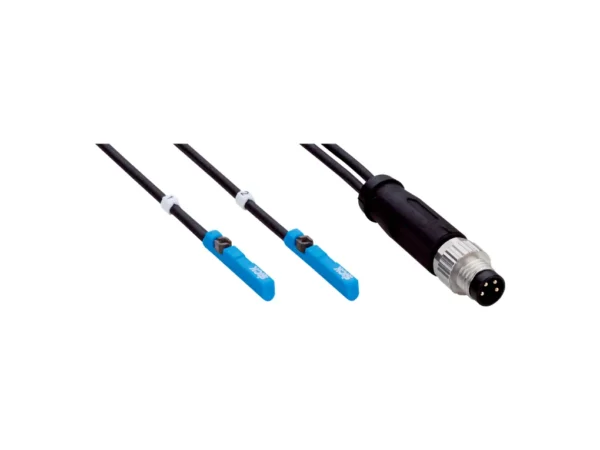

Home Manyetik Sensörler MZC1-2V2PS-KRTS15 – 1095682 🔍 MZC1-2V2PS-KRTS15 – 1095682 ✉ Teklif Al Teklif Al Stok kodu: 1095682 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Cylinder type C-slot Cylinder types with adapter SMC rail CDQ2 SMC rail ECDQ2 Round body cylinder Profile cylinders and tie-rod cylinders Housing length 23.7 mm Switching output PNP Switching frequency 1,000 Hz Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features Two sensor heads on one plug Mechanics/electronics Supply voltage 10 V DC … 30 V DC Power consumption 8 mA, without load Voltage drop ≤ 2.5 V Continuous current Ia ≤ 100 mA Protection class III Response sensitivity, typ. 2.2 mT Overrun distance, typ. 4 mm Hysteresis, typ. ≤ 0.8 mT Reproducibility ≤ 0.1 mT Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Power-up pulse protection Yes Ambient operating temperature –30 °C … +80 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with connector M8, 4-pin, with knurled nuts, 0.3 m Connection type Detail Conductor cross section 0.09 mm² Cable diameter Ø 2.2 mm Bending radius With fixed installation > 2 x cable diameter For flexible use > 5 x cable diameter Cable outlet Axial Material Housing Plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler MZT8-03VPS-KRX – 1073406SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-192TLTQ0 – 1062519SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZC1-4V3PO-KU0 – 1063549SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-2V6PSAKU0 – 1073265SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Cylinder type C-slot Cylinder types with adapter SMC rail CDQ2 SMC rail ECDQ2 Round body cylinder Profile cylinders and tie-rod cylinders Housing length 23.7 mm Switching output PNP Switching frequency 1,000 Hz Output function NO Electrical wiring DC 3-wire Enclosure rating IP68 Special features Two sensor heads on one plug Mechanics/electronics Supply voltage 10 V DC … 30 V DC Power consumption 8 mA, without load Voltage drop ≤ 2.5 V Continuous current Ia ≤ 100 mA Protection class III Response sensitivity, typ. 2.2 mT Overrun distance, typ. 4 mm Hysteresis, typ. ≤ 0.8 mT Reproducibility ≤ 0.1 mT Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Power-up pulse protection Yes Ambient operating temperature –30 °C … +80 °C Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with connector M8, 4-pin, with knurled nuts, 0.3 m Connection type Detail Conductor cross section 0.09 mm² Cable diameter Ø 2.2 mm Bending radius With fixed installation > 2 x cable diameter For flexible use > 5 x cable diameter Cable outlet Axial Material Housing Plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
