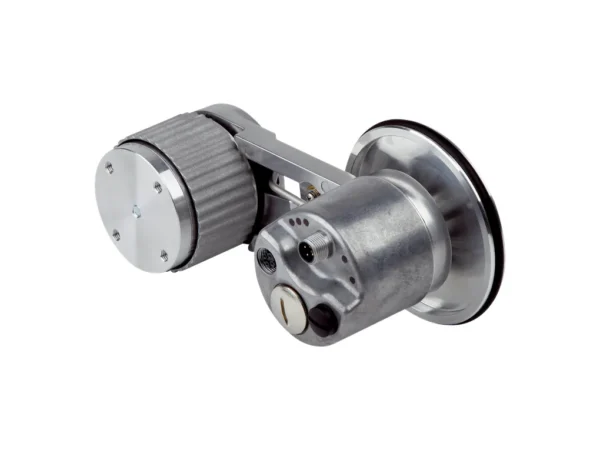

Home Enkoderler MWS120-2AN1IF18X00 – 1121564 🔍 MWS120-2AN1IF18X00 – 1121564 ✉ Teklif Al Teklif Al Stok kodu: 1121564 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Measuring increment (resolution in mm/pulse) 0.0008 Repeatability < 0.1 mm Interfaces Communication interface EtherNet/IP™ Programmable/configurable ✔ Electrical data Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial Power consumption ≤ 3 W Supply voltage 10 V DC … 30 V DC Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 300 mm Measuring wheel surface Cross knurled aluminium Mounting Measuring wheel mounted at the rear Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque 0.5 Ncm Operating torque 0.3 Ncm Bearing lifetime 3.0 x 10^9 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder AFS60 EtherNet/IP, AFS60A-S4IB262144, 1055364 Mounted mechanic BEF-MWS120-ARM, 2118239 Attached measuring wheel BEF-MR10300AK, 2115703 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DL1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1746-HSCEALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 262,144 (18 bit) Measuring increment (resolution in mm/pulse) 0.0008 Repeatability < 0.1 mm Interfaces Communication interface EtherNet/IP™ Programmable/configurable ✔ Electrical data Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial Power consumption ≤ 3 W Supply voltage 10 V DC … 30 V DC Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 300 mm Measuring wheel surface Cross knurled aluminium Mounting Measuring wheel mounted at the rear Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque 0.5 Ncm Operating torque 0.3 Ncm Bearing lifetime 3.0 x 10^9 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder AFS60 EtherNet/IP, AFS60A-S4IB262144, 1055364 Mounted mechanic BEF-MWS120-ARM, 2118239 Attached measuring wheel BEF-MR10300AK, 2115703 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
