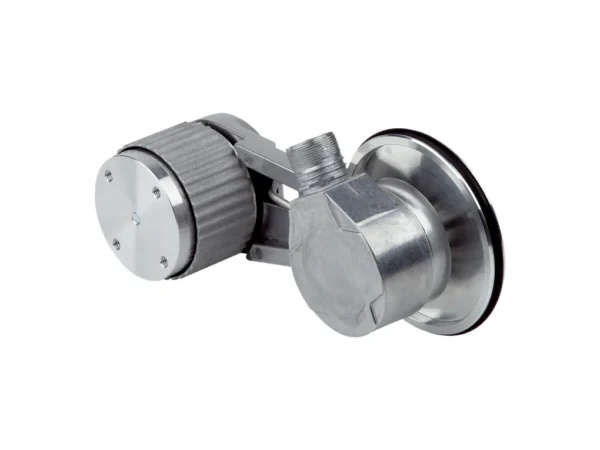

Home Enkoderler MWS120-25A11A00300 – 1117993 🔍 MWS120-25A11A00300 – 1117993 ✉ Teklif Al Teklif Al Stok kodu: 1117993 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 300 Measuring increment (resolution in mm/pulse) 1 Repeatability < 0.1 mm Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 4.5 V … 5.5 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 500 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 300 mm Measuring wheel surface Knurled polyurethane surface Mounting Measuring wheel mounted at the front Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque + 1.2 Ncm (at 20 °C) Operating torque 1.1 Ncm (at 20 °C) Bearing lifetime 3.6 x 109 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder DBS60 Core, DBS60E-S4AA00300 Mounted mechanic BEF-MR10300APG, 2118239 Attached measuring wheel BEF-MR010020R, 2118496 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Operating temperature range –20 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP3BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 300 Measuring increment (resolution in mm/pulse) 1 Repeatability < 0.1 mm Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 4.5 V … 5.5 V Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 500 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 300 mm Measuring wheel surface Knurled polyurethane surface Mounting Measuring wheel mounted at the front Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque + 1.2 Ncm (at 20 °C) Operating torque 1.1 Ncm (at 20 °C) Bearing lifetime 3.6 x 109 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder DBS60 Core, DBS60E-S4AA00300 Mounted mechanic BEF-MR10300APG, 2118239 Attached measuring wheel BEF-MR010020R, 2118496 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Operating temperature range –20 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
