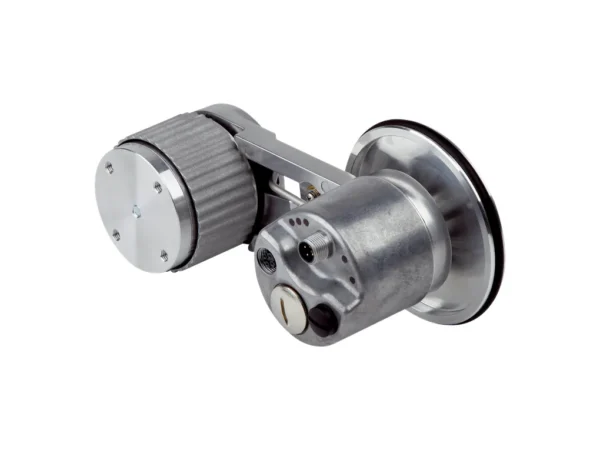

Home Enkoderler MWS120-12N2EF18X12 – 1115089 🔍 MWS120-12N2EF18X12 – 1115089 ✉ Teklif Al Teklif Al Stok kodu: 1115089 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Max. resolution (number of steps per revolution x number of revolutions) 18 bit x 12 bit (262,144 x 4,096) Measuring increment (resolution in mm/pulse) 0.0008 Repeatability < 0.1 mm Interfaces Communication interface EtherCAT® Communication Interface detail CoE (CAN over EtherCAT®) Programmable/configurable ✔ Electrical data Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial Supply voltage 10 V DC … 30 V DC Reverse polarity protection – MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O-ring NBR70 Mounting Measuring wheel mounted at the front Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque 0.5 Ncm Operating torque 0.3 Ncm Bearing lifetime 3.0 x 10^9 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder AFM60 EtherCAT®, AFM60A-S4EB018x12, 1059060 Mounted mechanic BEF-MWS120-ARM, 2118239 Attached measuring wheel BEF-MR010020R, 2055224 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP2BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Max. resolution (number of steps per revolution x number of revolutions) 18 bit x 12 bit (262,144 x 4,096) Measuring increment (resolution in mm/pulse) 0.0008 Repeatability < 0.1 mm Interfaces Communication interface EtherCAT® Communication Interface detail CoE (CAN over EtherCAT®) Programmable/configurable ✔ Electrical data Connection type Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial Supply voltage 10 V DC … 30 V DC Reverse polarity protection – MTTFd: mean time to dangerous failure 80 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O-ring NBR70 Mounting Measuring wheel mounted at the front Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque 0.5 Ncm Operating torque 0.3 Ncm Bearing lifetime 3.0 x 10^9 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder AFM60 EtherCAT®, AFM60A-S4EB018x12, 1059060 Mounted mechanic BEF-MWS120-ARM, 2118239 Attached measuring wheel BEF-MR010020R, 2055224 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
