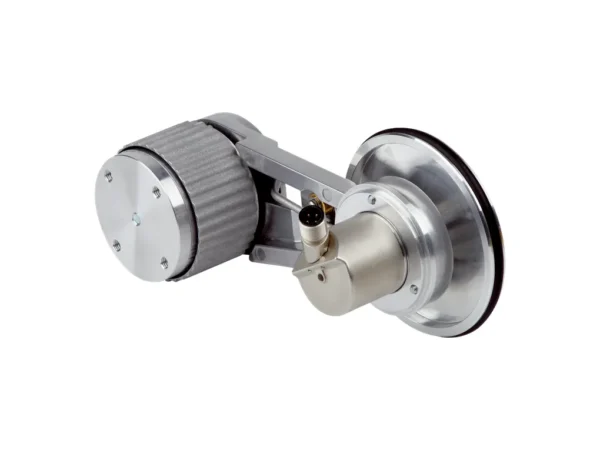

Home Enkoderler MWS120-12M1QC16384 – 1121859 🔍 MWS120-12M1QC16384 – 1121859 ✉ Teklif Al Teklif Al Stok kodu: 1121859 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Measuring increment (resolution in mm/pulse) 0.018 Repeatability < 0.1 mm Interfaces Communication interface IO-Link Communication Interface detail IO-Link V1.1 / COM3 (230,4 kBaud) Electrical data Connection type Male connector, M12, 4-pin, universal Power consumption ≤ 1.5 W Supply voltage 18 V … 30 V Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 240 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O-ring NBR70 Mounting Measuring wheel mounted at the front Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque < 1 Ncm Operating torque < 1 Ncm Bearing lifetime 3.6 x 10^8 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder AHS36 IO-Link Advanced, AHS36A-SCQC016384, 1110131 Flange plates BEF-FA-020-036, 2072298 Mounted mechanic BEF-MWS120-ARM, 2118239 Attached measuring wheel BEF-MR010020R, 2055224 Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9 Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP12BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-IKALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Number of steps per revolution (max. resolution) 16,384 (14 bit) Measuring increment (resolution in mm/pulse) 0.018 Repeatability < 0.1 mm Interfaces Communication interface IO-Link Communication Interface detail IO-Link V1.1 / COM3 (230,4 kBaud) Electrical data Connection type Male connector, M12, 4-pin, universal Power consumption ≤ 1.5 W Supply voltage 18 V … 30 V Reverse polarity protection ✔ MTTFd: mean time to dangerous failure 240 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O-ring NBR70 Mounting Measuring wheel mounted at the front Spring arm mechanism material Spring element Stainless steel Measuring wheel, spring arm Aluminum Start up torque < 1 Ncm Operating torque < 1 Ncm Bearing lifetime 3.6 x 10^8 revolutions Minimum spring tension force 4 N Max. permissible working area for the spring (continuous operation) ± 10 mm Service life of spring element > 1.5 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Mounted encoder AHS36 IO-Link Advanced, AHS36A-SCQC016384, 1110131 Flange plates BEF-FA-020-036, 2072298 Mounted mechanic BEF-MWS120-ARM, 2118239 Attached measuring wheel BEF-MR010020R, 2055224 Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and EN 61131-9 Operating temperature range –30 °C … +80 °C Storage temperature range –40 °C … +100 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
