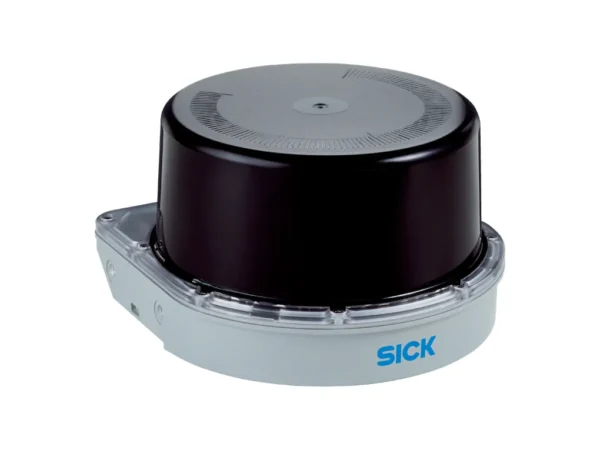

Home Manyetik Sensörler MRS1104C-111011 – 1081208 🔍 MRS1104C-111011 – 1081208 ✉ Teklif Al Teklif Al Stok kodu: 1081208 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Measurement principle HDDM+ Application Outdoor Light source Infrared (850 nm) Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) Aperture angle Horizontal 275° Vertical 7.5° (Over 4 scan layers) Scanning frequency 50 Hz, 4 x 12.5 Hz Angular resolution 0.25° 0.125°, interlaced 0.0625°, interlaced 2.5 , vertical Heating Self-heating Working range 0.2 m … 64 m Scanning range At 10% remission factor 16 m At 90% remission factor 30 m Spot size 10.4 mrad x 8.7 mrad Amount of evaluated echoes 3 Mechanics/electronics Connection type M12 round connectors with swivel connector Supply voltage 10 V DC … 30 V DC Power consumption 37 W, typ. 13 W, Start-up phase max. 30 W for 1 s Housing AlSi12, Optics cover: polycarbonate Housing color Gray (RAL 7042) Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class III (IEC 61140:2016-11) Electrical safety IEC 61010-1:2010-06 Weight 1.2 kg Dimensions (L x W x H) 151.9 mm x 150 mm x 92.5 mm MTBF 50 years Safety-related parameters MTTFD > 100 years Performance Scan/frame rate 55,000 measurement point/s … 165,000 measurement point/s Response time 4 layers, typ. 20 ms 1 layer, typ. 80 ms Systematic error ± 60 mm Statistical error ≤ 30 mm Integrated application Field evaluation with flexible fields on 4 levels Data output Number of field sets Up to 64 fields Simultaneous evaluation cases Up to 16 evaluations Filter Fog filter Particle filter Average filter Median filter Ground reference evaluation Edge filter Echo filter Output data LiDAR-LOC Contamination indication, IMU (secondary sensor data) Interfaces Ethernet ✔ , TCP/IP, UDP/IP Function Data interface (read result output), OPC, NTP, Measured data output (distance, RSSI) Data transmission rate 10/100 MBit/s Digital inputs/outputs I/O (8 (Multiport)) Output data Contamination indication IMU (secondary sensor data) Optical indicators 2 LEDs Configuration software SOPAS ET Web server (display) Ambient data Object remission 2 % … > 1,000 % (Reflector) Electromagnetic compatibility (EMC) EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011 Vibration resistance 10 Hz … 150 Hz, 5 g, 20 frequency cycles Shock resistance 15 g, 11 ms, 6 single shocks/axis 10 g, 16 ms, 1,000 continuous shocks/axis Ambient operating temperature –30 °C … +50 °C Storage temperature –40 °C … +75 °C Ambient light immunity 80 klx General notes Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety. Classifications ECLASS 5.0 27270990 ECLASS 5.1.4 27270990 ECLASS 6.0 27270913 ECLASS 6.2 27270913 ECLASS 7.0 27270913 ECLASS 8.0 27270913 ECLASS 8.1 27270913 ECLASS 9.0 27270913 ECLASS 10.0 27270913 ECLASS 11.0 27270913 ECLASS 12.0 27270913 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 41111615 İlgili ürünler MZT8-2V6PSTKP0 – 1073268SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-224TLTQ0 – 1062522SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-1V9PS-KUB – 1071438SICKManyetik Sensörler ₺2.200,00 Ürüne Git MZT8-2V6PSAKUB – 1073266SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Measurement principle HDDM+ Application Outdoor Light source Infrared (850 nm) Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) Aperture angle Horizontal 275° Vertical 7.5° (Over 4 scan layers) Scanning frequency 50 Hz, 4 x 12.5 Hz Angular resolution 0.25° 0.125°, interlaced 0.0625°, interlaced 2.5 , vertical Heating Self-heating Working range 0.2 m … 64 m Scanning range At 10% remission factor 16 m At 90% remission factor 30 m Spot size 10.4 mrad x 8.7 mrad Amount of evaluated echoes 3 Mechanics/electronics Connection type M12 round connectors with swivel connector Supply voltage 10 V DC … 30 V DC Power consumption 37 W, typ. 13 W, Start-up phase max. 30 W for 1 s Housing AlSi12, Optics cover: polycarbonate Housing color Gray (RAL 7042) Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class III (IEC 61140:2016-11) Electrical safety IEC 61010-1:2010-06 Weight 1.2 kg Dimensions (L x W x H) 151.9 mm x 150 mm x 92.5 mm MTBF 50 years Safety-related parameters MTTFD > 100 years Performance Scan/frame rate 55,000 measurement point/s … 165,000 measurement point/s Response time 4 layers, typ. 20 ms 1 layer, typ. 80 ms Systematic error ± 60 mm Statistical error ≤ 30 mm Integrated application Field evaluation with flexible fields on 4 levels Data output Number of field sets Up to 64 fields Simultaneous evaluation cases Up to 16 evaluations Filter Fog filter Particle filter Average filter Median filter Ground reference evaluation Edge filter Echo filter Output data LiDAR-LOC Contamination indication, IMU (secondary sensor data) Interfaces Ethernet ✔ , TCP/IP, UDP/IP Function Data interface (read result output), OPC, NTP, Measured data output (distance, RSSI) Data transmission rate 10/100 MBit/s Digital inputs/outputs I/O (8 (Multiport)) Output data Contamination indication IMU (secondary sensor data) Optical indicators 2 LEDs Configuration software SOPAS ET Web server (display) Ambient data Object remission 2 % … > 1,000 % (Reflector) Electromagnetic compatibility (EMC) EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011 Vibration resistance 10 Hz … 150 Hz, 5 g, 20 frequency cycles Shock resistance 15 g, 11 ms, 6 single shocks/axis 10 g, 16 ms, 1,000 continuous shocks/axis Ambient operating temperature –30 °C … +50 °C Storage temperature –40 °C … +75 °C Ambient light immunity 80 klx General notes Note on use The sensor does not constitute a safety component as defined by relevant legislation on machine safety. Classifications ECLASS 5.0 27270990 ECLASS 5.1.4 27270990 ECLASS 6.0 27270913 ECLASS 6.2 27270913 ECLASS 7.0 27270913 ECLASS 8.0 27270913 ECLASS 8.1 27270913 ECLASS 9.0 27270913 ECLASS 10.0 27270913 ECLASS 11.0 27270913 ECLASS 12.0 27270913 ETIM 5.0 EC002550 ETIM 6.0 EC002550 ETIM 7.0 EC002550 ETIM 8.0 EC002550 UNSPSC 16.0901 41111615
