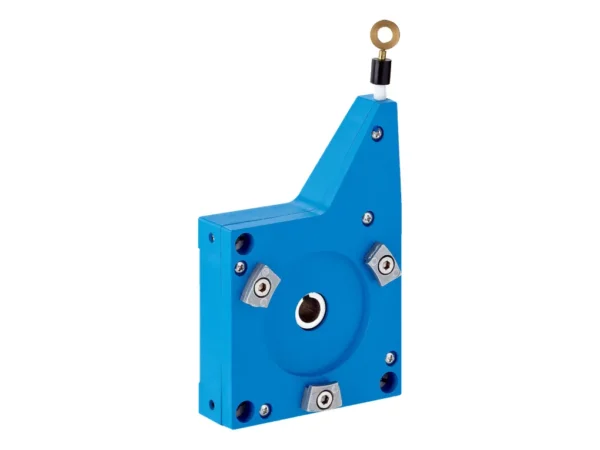

Home Enkoderler MRA-G080-103D3 WIRE DRAW MECHANISM – 5322778 🔍 MRA-G080-103D3 WIRE DRAW MECHANISM – 5322778 ✉ Teklif Al Teklif Al Stok kodu: 5322778 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Wire draw mechanism Description EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m … 3 m Items supplied Without encoder Measurement range 0 m … 3 m Reproducibility ≤ 0.2 mm Linearity ≤ ± 2 mm Hysteresis ≤ 0.4 mm Weight 250 g (Wire draw mechanism) Weight (measuring wire) 1.2 g/m Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Housing material Plastic, Noryl Housing material, wire draw mechanism Plastic, Noryl Length of wire pulled out per revolution 230 mm Actual wire draw length 3.2 m Spring return force 3.3 N … 4.4 N Measuring wire diameter 0.55 mm Wire acceleration 10 m/s² Operating speed 6 m/s Ambient operating temperature –30 °C … +70 °C Enclosure rating mechanic IP50 Life of wire draw mechanism Typ. 1,000,000 cycles Classifications eCl@ss 5.0 27270591 eCl@ss 5.1.4 27270591 eCl@ss 6.0 27279103 eCl@ss 6.2 27279103 eCl@ss 7.0 27279103 eCl@ss 8.0 27279103 eCl@ss 8.1 27279103 eCl@ss 9.0 27270591 eCl@ss 10.0 27270591 eCl@ss 11.0 27270591 eCl@ss 12.0 27270591 ETIM 5.0 EC002026 ETIM 6.0 EC002026 ETIM 7.0 EC002026 ETIM 8.0 EC002026 UNSPSC 16.0901 39122221 İlgili ürünler Enkoder – 842E-CM-MIP5BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Wire draw mechanism Description EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m … 3 m Items supplied Without encoder Measurement range 0 m … 3 m Reproducibility ≤ 0.2 mm Linearity ≤ ± 2 mm Hysteresis ≤ 0.4 mm Weight 250 g (Wire draw mechanism) Weight (measuring wire) 1.2 g/m Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A Housing material Plastic, Noryl Housing material, wire draw mechanism Plastic, Noryl Length of wire pulled out per revolution 230 mm Actual wire draw length 3.2 m Spring return force 3.3 N … 4.4 N Measuring wire diameter 0.55 mm Wire acceleration 10 m/s² Operating speed 6 m/s Ambient operating temperature –30 °C … +70 °C Enclosure rating mechanic IP50 Life of wire draw mechanism Typ. 1,000,000 cycles Classifications eCl@ss 5.0 27270591 eCl@ss 5.1.4 27270591 eCl@ss 6.0 27279103 eCl@ss 6.2 27279103 eCl@ss 7.0 27279103 eCl@ss 8.0 27279103 eCl@ss 8.1 27279103 eCl@ss 9.0 27270591 eCl@ss 10.0 27270591 eCl@ss 11.0 27270591 eCl@ss 12.0 27270591 ETIM 5.0 EC002026 ETIM 6.0 EC002026 ETIM 7.0 EC002026 ETIM 8.0 EC002026 UNSPSC 16.0901 39122221
