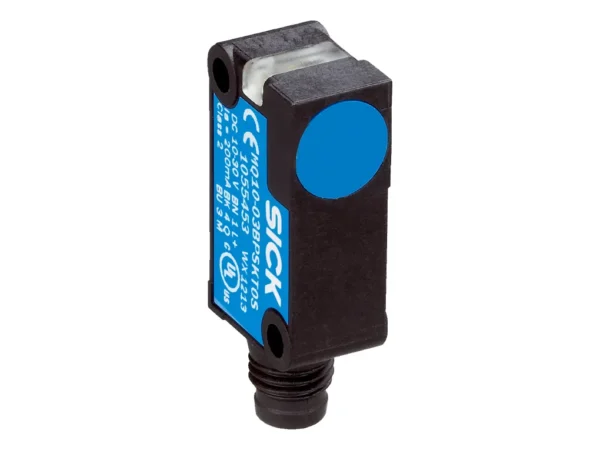

Home Manyetik Sensörler MQ10-60ANSKT0 – 1078009 🔍 MQ10-60ANSKT0 – 1078009 ✉ Teklif Al Teklif Al Stok kodu: 1078009 Kategoriler: Manyetik Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 10 mm x 28 mm x 16 mm Sensing range Sn 0 mm … 60 mm Safe sensing range Sa 48.6 mm Magnetic sensitivity ≤ 1 mT Switching frequency 1,000 Hz Connection type Connector M8, 3-pin Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 1.5 V Current consumption 5 mA Time delay before availability ≤ 26 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Safety-related parameters MTTFD 1,924 years DCavg 0 % TM (mission time) 20 years Classifications eCl@ss 5.0 27270104 eCl@ss 5.1.4 27270104 eCl@ss 6.0 27270104 eCl@ss 6.2 27270104 eCl@ss 7.0 27270104 eCl@ss 8.0 27270104 eCl@ss 8.1 27270104 eCl@ss 9.0 27270104 eCl@ss 10.0 27270104 eCl@ss 11.0 27270104 eCl@ss 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler MZ2Q-TFSPSKQD – 1062172SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-128TLTQ0 – 1062518SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-032THNP0 – 1072897SICKManyetik Sensörler ₺2.200,00 Ürüne Git MPS-256TLTQ0 – 1062520SICKManyetik Sensörler ₺2.200,00 Ürüne Git
Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 10 mm x 28 mm x 16 mm Sensing range Sn 0 mm … 60 mm Safe sensing range Sa 48.6 mm Magnetic sensitivity ≤ 1 mT Switching frequency 1,000 Hz Connection type Connector M8, 3-pin Switching output NPN Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 1.5 V Current consumption 5 mA Time delay before availability ≤ 26 ms Hysteresis 1 % … 10 % Reproducibility ≤ 1 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –25 °C … +75 °C Housing material Plastic, VISTAL® Sensing face material Plastic, VISTAL® Safety-related parameters MTTFD 1,924 years DCavg 0 % TM (mission time) 20 years Classifications eCl@ss 5.0 27270104 eCl@ss 5.1.4 27270104 eCl@ss 6.0 27270104 eCl@ss 6.2 27270104 eCl@ss 7.0 27270104 eCl@ss 8.0 27270104 eCl@ss 8.1 27270104 eCl@ss 9.0 27270104 eCl@ss 10.0 27270104 eCl@ss 11.0 27270104 eCl@ss 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
