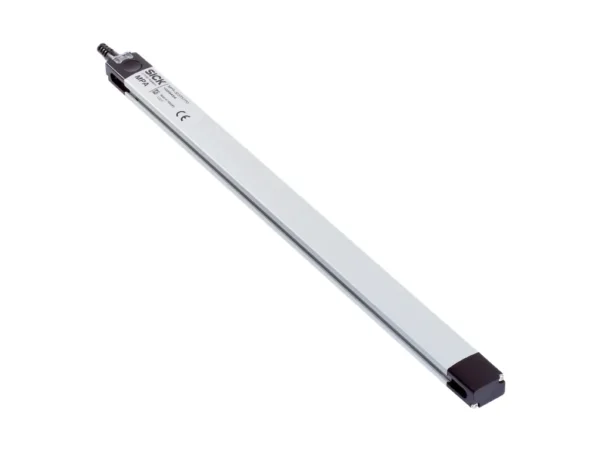

Home Diğer (Montaj / Aksesuar) MPA-107THNP0 – 1122501 🔍 MPA-107THNP0 – 1122501 ✉ Teklif Al Teklif Al Stok kodu: 1122501 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Cylinder type Universal Cylinder types with adapter Round body cylinder Tie rod cylinder T-slot cylinders Festo cylinders DSBC SMC cylinders CP96 Measuring range 107 mm Housing length 109 mm Output function Analog, IO-Link Electrical wiring DC 4-wire Analog output (current) 4 mA … 20 mA Enclosure rating IP65, IP67, IP68 IO-Link functions Standard functions Adjustment IO-Link Teaching in the measuring rangeResetting the measuring range Mechanics/electronics Supply voltage 15 V DC … 30 V DC Power consumption 35 mA, without load Max. load resistance ≤ 500 Ω Power Output, at 24 V Protection class III Required magnetic field sensitivity, typ. 2 mT … 15 mT Resolution, typ. 0.03 % FSR (max. ≥ 0.06 mm) Linearity error, typ. 0.5 mm Repeat accuracy, typ. 0.06 % FSR (≥ 0.1 mm) Sampling rate, typ. 1.15 ms Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Teach-in Yes Ambient operating temperature –20 °C … +70 °C Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with M8 male connector, 4-pin, 0.3 m Connection type Detail Deep-freeze property Do not bend below 0 °C Conductor cross section 0.08 mm² Cable diameter Ø 2.6 mm Bending radius With fixed installation > 5 x cable diameter For flexible use > 10 x cable diameter Cable outlet Axial Material Housing Metal, Aluminum, plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters MTTFD 240 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.0.1 Communication Interface detail COM2 Cycle time 2.3 ms Process data length 16 Bit Process data structure Bit 0 … 3 = reserved Bit 4 … 5 = position (after decimal point) Bit 6 … 15 = position (before decimal point) Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler 1000Base-EZX Singlemode SFP (110km) – 20 – SFP-GZX/LCI-110EAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1310/PLUS-LC – 808-38723AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 100Base-T RJ45 SFP Module w/Wide Temp – SFP-FTX-RJ45I-AEAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 100BASE-FX, MM 2KM – SFP-100FX-M-2KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Cylinder type Universal Cylinder types with adapter Round body cylinder Tie rod cylinder T-slot cylinders Festo cylinders DSBC SMC cylinders CP96 Measuring range 107 mm Housing length 109 mm Output function Analog, IO-Link Electrical wiring DC 4-wire Analog output (current) 4 mA … 20 mA Enclosure rating IP65, IP67, IP68 IO-Link functions Standard functions Adjustment IO-Link Teaching in the measuring rangeResetting the measuring range Mechanics/electronics Supply voltage 15 V DC … 30 V DC Power consumption 35 mA, without load Max. load resistance ≤ 500 Ω Power Output, at 24 V Protection class III Required magnetic field sensitivity, typ. 2 mT … 15 mT Resolution, typ. 0.03 % FSR (max. ≥ 0.06 mm) Linearity error, typ. 0.5 mm Repeat accuracy, typ. 0.06 % FSR (≥ 0.1 mm) Sampling rate, typ. 1.15 ms Reverse polarity protection Yes Short-circuit protection Yes Status indicator LED Yes Teach-in Yes Ambient operating temperature –20 °C … +70 °C Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm EMC According to EN 60947-5-2 Connection type Cable with M8 male connector, 4-pin, 0.3 m Connection type Detail Deep-freeze property Do not bend below 0 °C Conductor cross section 0.08 mm² Cable diameter Ø 2.6 mm Bending radius With fixed installation > 5 x cable diameter For flexible use > 10 x cable diameter Cable outlet Axial Material Housing Metal, Aluminum, plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters MTTFD 240 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface IO-Link V1.0.1 Communication Interface detail COM2 Cycle time 2.3 ms Process data length 16 Bit Process data structure Bit 0 … 3 = reserved Bit 4 … 5 = position (after decimal point) Bit 6 … 15 = position (before decimal point) Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
