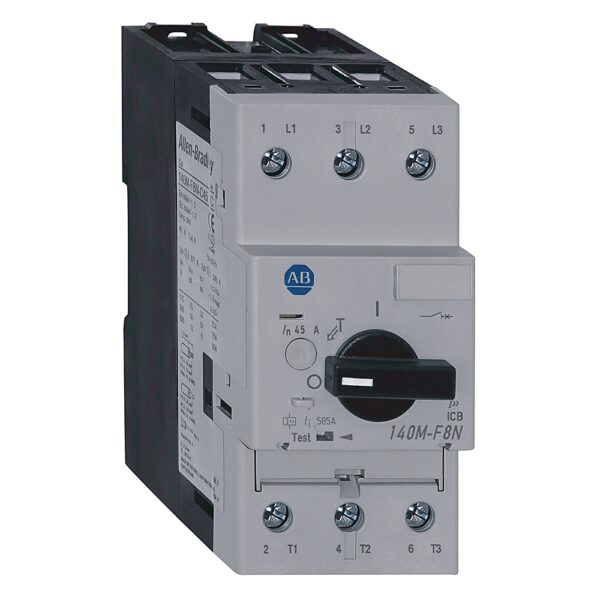

Tecnichal data
| With integrated auxiliary switch | No |
| With integrated under voltage release | No |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 65 kA |
| Rated operation power at AC-3, 400 V | 11 kW |
| Rated permanent current Iu | 25 A |
| Rated operation power at AC-3, 230 V | 5.5 kW |
| Rated operating voltage | 230 A |
| Type of control element | Turn button |
| Overload release current setting | 18 A |
| Type of electrical connection of main circuit | Screw connection |
| Magnetic release current per IEC | 416 A |
| Magnetic trip current, nom | 416 A |
| Rated operational current (Ie) per IEC | 25 A |
| Rated supply current (Ie) | 6.3 A |
| Current range | 18…25 A |
| Short circuit current for UL 60947-4-1 self-protected (Type E) combination motor controller, max | 65 kA @ 480V/277V |
| Ultimate short circuit breaking capacity (Icu) per IEC | 65 kA @ 440/460V AC |
| Rated service short circuit breaking capacity (Ics) per IEC | 6 kA @ 690V AC |
| Insulation voltage (Ui) | Rated 690V per IEC |
| Hp rating, max | 7.5 Hp @ 230V, 3-phase |
| Electrical life cycle | 30000 operations (Ie maximum) |
| Switching of standard motors per IEC | 6.3 kW @ 230/240V (AC-3), 3-phase |
| KW rating, max | 22 kW @ 690V (AC-3), 3-phase |
| Back up fuse (gG, gL) current rating (if Icc ââ°¥ Icu ) per IEC | No back-up fuse required @ 230/240V AC |
| Short circuit current (Type 2 coordination), max | 65 kA @ 480V |
| Total power loss (Pv) for circuit breaker | 7â⬦22 W @ rated load/operating temperature |
| Rated thermal current (Ith) | 6.3…45 A up to 60 ðC (140 ðF) ambient temperature |
| Short circuit current for tap conductor protection, max | 65 kA @ 480Y/277V, UL 60947-4-1ââ¬Ã¢manual motor controller |
| Rated impulse withstand voltage (Uimp) | Main circuits (Uimp)/overvoltage category: 6 kV/III, 8 kV (disconnect) |
| Short circuit current for group motor installation, max | 65 kA @ 480V, UL 60947-4-1ââ¬Ã¢manual motor controller |
| Short circuit current for motor disconnect, max | 65 kA @ 480V, UL 60947-4-1ââ¬Ã¢manual motor controller |
| Number of poles | 3 |
| With thermal protection | Yes |
| Phase failure sensitive | Yes |
| Switch off technique | Thermomagnetic |
| Switching frequency, max | 25 ops/h |
| Trip class | 10 |
| Rated frequency | 45 Hz |
| Phase loss protection | Differential release |
| Fuse or circuit breaker per NEC | 600 A, UL 60947-4-1ââ¬Ã¢manual motor controller |
| Width | 54 mm |
| Depth | 110 mm |
| Height | 111.4 mm |
| Frame size | Frame size F, 45 A |
| Contactor size (Type 2 coordination), min | 100-C30 @ 600V |
| Device construction | Built-in device fixed built-in technique |
| Degree of protection (IP) | IP2X |
| Weight | 782 lb |
| Mechanical life operations | 30000 /h |
| Breaking capacity | High breaking capacity |
| Shock | Transport (60068-2-27): 30 G/11 ms, OFF |
| Protection type | Adjustable thermal/fixed magnetic (fixed at 16…22 x In) |
| Factory option | No circuit-breaker auxiliary or trip contacts |
| Vibration | Operation (60068-2-6): 5 G |
| Ambient storage temperature | -40 ðC |
| Ambient operating temperature | -25 ðC |
| Ambient temperature compensation | -25 ðC |
| Site altitude | to 2000 m N.N. (6561 ft) |
| Dependence on temperature | No reduction @ 60 ðC (140 ðF) |
| Magnetic release current (ñ20 %) | Fixed setting: 18â⬦22 x Ie maximum (Ie maximum = maximum values of setting ranges) for T version |
| Pollution degree | 3 |
| Climatic resistance | Operating humidity/moisture heat (60068-2-3): 5…95% non-condensing |
| Utilization category | Motor starter: AC-3 (IEC60947-4-1) |
| Overload protection characteristics | IEC 60947-4-1 motor protection |
