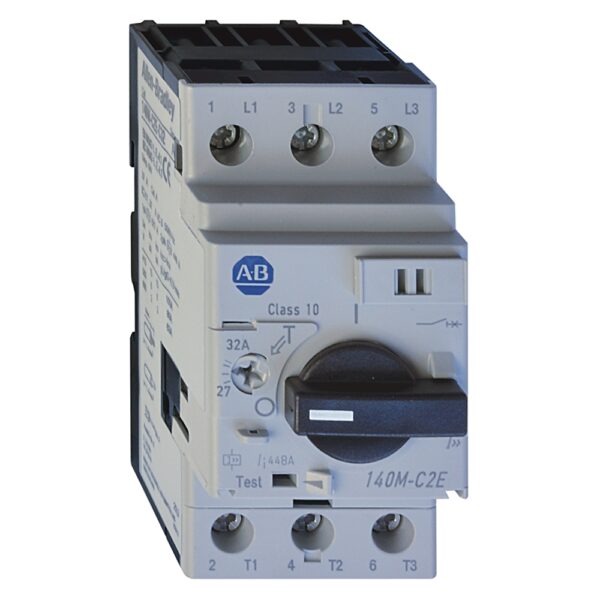

Tecnichal data
| With integrated auxiliary switch | No |
| With integrated under voltage release | No |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 50 kA |
| Rated operation power at AC-3, 400 V | 10 kW |
| Rated operation power at AC-3, 230 V | 5.5 kW |
| Rated operating voltage | 230 A |
| Type of control element | Turn button |
| Overload release current setting | 14.5 A |
| Type of electrical connection of main circuit | Screw connection |
| Magnetic release current per IEC | 260 A |
| Rated operational current (Ie) per IEC | 20 A |
| Magnetic trip current | 260 A |
| Short circuit current (Type 2 coordination), max-inv | 50 kA @ 400V |
| Current range | 14.5…20 A |
| Ultimate short circuit breaking capacity (Icu) per IEC | 65 kA @ 230/240V |
| Rated service short circuit breaking capacity (Ics) per IEC | 6 kA @ 500V |
| Hp rating, max | 7.5 Hp @ 230V, 3-phase |
| Rated operating voltage, max | 690V per IEC, SEV, VDE0660 |
| Electrical life cycle | (Ie max.) 100000 operations |
| Short circuit current for combination motor controller with 100-C contactor, max-inv | 10 kA @ 480Y/277V, UL 508-Type F |
| Short circuit current for self-protected combination motor controller with 100-C contactor, max-inv | 10 kA @ 480Y/277V, UL 508-Type E |
| Switching of standard motors per IEC | 5.5 kW @ 230/240V, 3-phase |
| KW rating, max | 17 kW @ 690V (AC-3), 3-phase |
| Back up fuse (gG, gL) current rating (if Icc ââ°¥ Icu ) per IEC | 80 A @ 500V |
| Short circuit current for group motor installation with 100-C contactor, max-inv | 30 kA @ 600V, UL 508-manual motor controller |
| Short circuit current for motor disconnect with 100-C contactor, max-inv | 30 kA @ 600V, UL 508-manual motor controller |
| Rated thermal current | 0.1…32 A @ 60 ðC ambient temperature (Ith)-inv |
| Short circuit current for tap conductor protection, max | 10 kA @ 480Y/277V per UL 508-manual motor controller |
| Short circuit current for combination motor controller, max | 10 kA @ 480V/277V per UL 508-self-protected (Type E) |
| Fuse or circuit breaker per NEC, max | 450 A, UL 508-manual motor controller |
| Fuse or circuit breaker rating per NEC, max | 450 A, UL 508-manual motor controller with 100-C contactor |
| Short circuit current for group motor installation, max | 30 kA @ 600V, UL 508-manual motor controller |
| Short circuit current for motor disconnect, max | 10 kA @ 600V, UL 508-manual motor controller |
| Magnetic release current | Fixed setting 13…14 x Ie max. Ie max. = maximum values of setting ranges, (ñ20 %) |
| Number of poles | 3 |
| With thermal protection | Yes |
| Phase failure sensitive | Yes |
| Switch off technique | Thermomagnetic |
| Switching frequency, max | 25 ops/h |
| Trip class | 10 |
| Rated frequency | 50/60 Hz |
| Rated supply current | 0.1 A |
| Total power loss (Pv) for circuit breaker at rated load operating temperature-inv | 6 W |
| Phase loss protection | Differential release |
| Main circuits/overvoltage category | 6kV/III @ rated impulse withstand voltage (Uimp) |
| Auxiliary circuits/overvoltage category-inv | 6kV/III @ rated impulse withstand voltage (Uimp) |
| Width | 45 mm |
| Depth | 74.5 mm |
| Height | 90 mm |
| Contactor size (Type 2 coordination), min-inv | 100-C30 @ 600V |
| Frame size | Frame size C, 32 A |
| Contactor size, min-inv | 100-C23, UL-508-Type F combination motor controller (100-C) |
| Device construction | Built-in device fixed built-in technique |
| Degree of protection (IP) | IP2X |
| Weight | 317 lb |
| Mechanical life operations | 100000 /h |
| Breaking capacity | Standard breaking capacity |
| Protection type | Adjustable thermal/fixed magnetic (13 x In) |
| Factory option | No circuit-breaker auxiliary or trip contacts |
| Terminal type | Screw connection |
| Vibration resistance | Operation (60068-2-6): 5 G |
| Shock resistance | Transport (60068-2-27): 30 G, 11 ms, all axes |
| Ambient storage temperature | -40 ðC |
| Ambient operating temperature | -25 ðC |
| Ambient temperature compensation | -20 ðC |
| Site altitude | To 2000 N.N.(m) |
| Moisture heat | 40 ðC, relative humidity 93 %, 56 days (60068-2-3)-inv |
| Dry heat | 100 ðC, relative humidity < 50 %, 7 days (60086-2-2)-inv |
| Dependence on temperature | No current reduction @ 60 ðC-inv |
| Moisture change climate | 23 ðC/83 % relative humidity and 40 ðC/92 % relative humidity, 56 cycles (600068-2-30)-inv |
| Pollution degree | 3 |
| Utilization category | Motor starter: AC-3 (IEC60947-4-1) |
| Overload protection characteristics | IEC 60947-4-1 motor protection |
