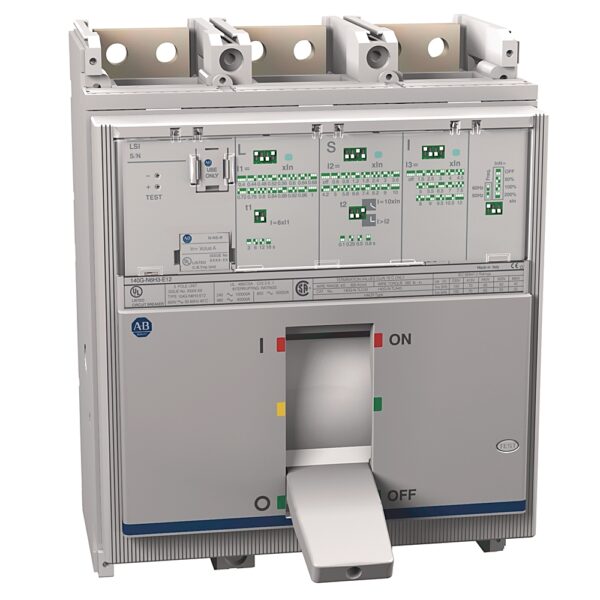

Tecnichal data
| Number of poles | 3 |
| Number of auxiliary contacts as change-over contact | 1 |
| With integrated under voltage release | No |
| Integrated earth fault protection | No |
| Complete device with protection unit | Yes |
| Rated permanent current Iu | 1200 A |
| Type of control element | Toggle |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Frame size | 1200 A |
| Current range | 80% MCCB |
| Voltage for reverse-fed circuit breaker, max | 690V AC per IEC |
| Watt loss | Electronic type: 252 W |
| Insulation voltage (Ui) | Rated 1000V per IEC |
| Protection typeââ¬Ã¢Electronic I (lnstantaneous trip units, 80 % continuous rated) | I3 = 1.5…12 x In (OFF, 1800…14400 A) |
| Protection typeââ¬Ã¢Electronic I (lnstantaneous trip units, 100 % continuous rated) | I3 = 1.5…12 x In (OFF, 1800…14400 A) |
| Electrical life cycle | 60 ops/hr @ 415V AC |
| Operating current (In), max | 980 A @ 70 ðC (158 Ãà ¡F) per IEC (Molded case switch rated current) |
| Interrupting rating | 65 kA @ 600V AC, 50/60 Hz per NEMA, UL, CSA |
| Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 85 kA @ 500V AC, 50/60 Hz |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 75% Icu @ 690V AC, 50/60 Hz |
| Protection typeââ¬Ã¢Electronic S (short time trip units, 100 % continuous rated) | I2 = 0.6…10 x In (OFF, 720…12000 A), t2 = [tsec] @ 10 x In = 0.1, 0.25, 0.5, 0.8 sec |
| Protection typeââ¬Ã¢Electronic L (long time trip units, 80 % continuous rated) | I1 = 0.4…1 x In (480…1200 A), t1 = [tsec] @ 6 x I1 = 3, 6, 12, 18 sec |
| Protection typeââ¬Ã¢Electronic L (long time trip units, 100 % continuous rated) | I1 = 0.4…1 x In (480…1200 A), t1 = [tsec] @ 6 x I1 = 3, 6, 12, 18 sec |
| Protection type | Electronic LSI-long and short time, high instantaneous |
| Motor drive integrated | No |
| With switched-off indicator | No |
| Motor drive optional | Yes |
| Position of connection for main current circuit | Front side |
| Type of electrical connection of main circuit | Screw connection |
| Protection typeââ¬Ã¢Electronic S (short time trip units, 80 % continuous rated) | I2 = 0.6…10 x In (OFF, 720…12000 A), t2 = [tsec] @ 10 x In = 0.1, 0.25, 0.5, 0.8 sec |
| Suitable for DIN rail (top hat rail) mounting | No |
| DIN rail (top hat rail) mounting optional | No |
| Degree of protection (IP) | IP40 |
| Weight | 21.39 lb |
| Mechanical life operations | 60 /h |
| Vibration | 2…13.2 Hz ñ1 mm, 13.2…100 Hz ñ0.7 G |
| Factory option | 1 NO/NC auxiliary + 1 alarm 400V AC |
| Height | 268 mm |
| Device construction | Built-in device fixed built-in technique |
| Width | 210 mm |
| Depth | 154 mm |
| Storage temperature | -40 ðF |
| Wire temperature rating | Al or Cu 75 ðC |
| Operational voltage (Ue) | 90% of voltage rating @ 3000 meter (9840 ft) altitude |
| Rated uninterrupted current (Iu) | 98% of current rating @ 3000 meter (9840 ft) altitude |
| Ambient temperature without derating | 104 ðF |
