Technical Specs
Specifications

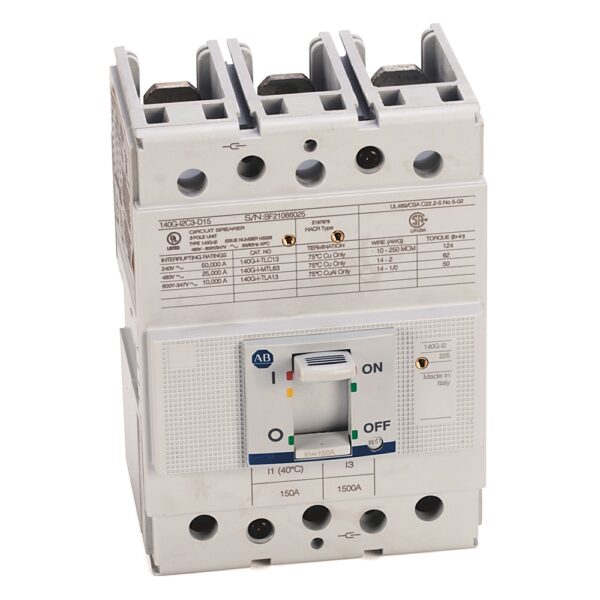

Bulletin Number:140G – Molded Case Circuit Breaker
Frame/Rating:I Frame (225 A)
Interrupting Rating, 50/60 Hz, 240V (kA):50
Interrupting Rating, 50/60 Hz, 480V (kA):25
Interrupting Rating, 50/60 Hz, 600V (kA):10
Breaking Capacity, 50/60 Hz, 220V (kA):50
Breaking Capacity, 50/60 Hz, 415V (kA):36
Breaking Capacity, 50/60 Hz, 440V (kA):25
Circuit Breaker Data
Device Type:140G – Molded Case Circuit Breaker
Number of Poles:4 Poles
Frame Size:I frame
Rated Current(A):125 A
Protection:T/M – Thermal Magnetic
Manufacturing
Assembly:Factory Assembled
