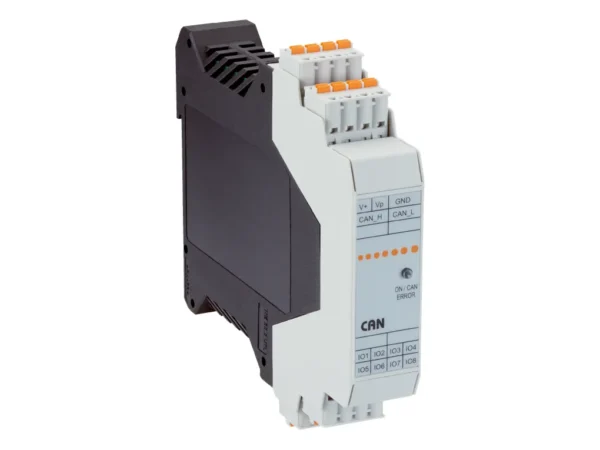

Home Diğer (Montaj / Aksesuar) MODUL, DR DIGITAL 8 CH.I/O IP20 – 6038825 🔍 MODUL, DR DIGITAL 8 CH.I/O IP20 – 6038825 ✉ Teklif Al Teklif Al Stok kodu: 6038825 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Technical specifications Accessory family Fieldbus modules Communication interface CAN, Data transmission rate: 50 kBit/s … 1 MBit/s, protocol: CANopen/CANopen FD according to CiA 301 V4.02, CiA 1301 and CiA 401 Housing material Polyamid Operating voltage 9 V DC … 36 V DC Power consumption 1.5 W (60 mA at 24 V DC without output load) Enclosure rating IP20 EMC EN 50082-2 Weight 150 g Output current 1 A per channel:/ 6 A sum current Dimensions (W x H x L) 22.5 mm x 102 mm x 128.8 mm Description External CAN expansion module for up to 8 additional digital outputs, IP 20 Ambient temperature, operation –40 °C … +105 °C Classifications ECLASS 5.0 27242202 ECLASS 5.1.4 27242602 ECLASS 6.0 27242602 ECLASS 6.2 27242602 ECLASS 7.0 27242602 ECLASS 8.0 27242602 ECLASS 8.1 27242602 ECLASS 9.0 27242602 ECLASS 10.0 27242602 ECLASS 11.0 27242602 ECLASS 12.0 27242602 ETIM 5.0 EC001597 ETIM 6.0 EC001597 ETIM 7.0 EC001597 ETIM 8.0 EC001597 UNSPSC 16.0901 32151705 İlgili ürünler SFP MODULE 1000BASE-SX, MM 550M – SFP-1000SX-M-550M-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1550/PLUS-SC – 808-38224AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 100Base-T RJ45 SFP Module w/Wide Temp – SFP-FTX-RJ45I-AEAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSBX-SM1310/PLUS-SC – 808-38229AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Technical specifications Accessory family Fieldbus modules Communication interface CAN, Data transmission rate: 50 kBit/s … 1 MBit/s, protocol: CANopen/CANopen FD according to CiA 301 V4.02, CiA 1301 and CiA 401 Housing material Polyamid Operating voltage 9 V DC … 36 V DC Power consumption 1.5 W (60 mA at 24 V DC without output load) Enclosure rating IP20 EMC EN 50082-2 Weight 150 g Output current 1 A per channel:/ 6 A sum current Dimensions (W x H x L) 22.5 mm x 102 mm x 128.8 mm Description External CAN expansion module for up to 8 additional digital outputs, IP 20 Ambient temperature, operation –40 °C … +105 °C Classifications ECLASS 5.0 27242202 ECLASS 5.1.4 27242602 ECLASS 6.0 27242602 ECLASS 6.2 27242602 ECLASS 7.0 27242602 ECLASS 8.0 27242602 ECLASS 8.1 27242602 ECLASS 9.0 27242602 ECLASS 10.0 27242602 ECLASS 11.0 27242602 ECLASS 12.0 27242602 ETIM 5.0 EC001597 ETIM 6.0 EC001597 ETIM 7.0 EC001597 ETIM 8.0 EC001597 UNSPSC 16.0901 32151705
