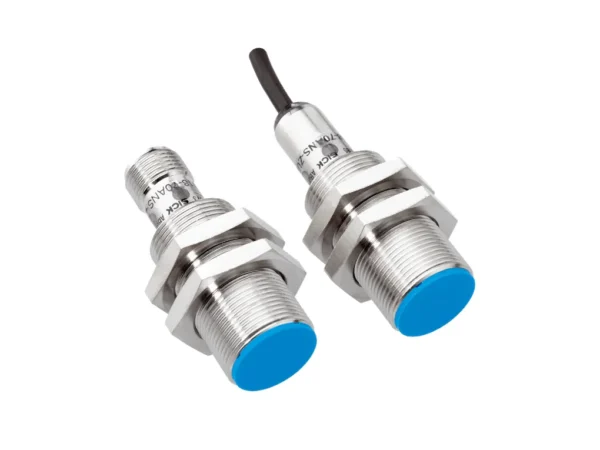

Home Endüktif Sensörler MM18-00APS-ZCK – 1076085 🔍 MM18-00APS-ZCK – 1076085 ✉ Teklif Al Teklif Al Stok kodu: 1076085 Kategoriler: Endüktif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 5 mm … 120 mm Safe sensing range Sa 97.2 mm Magnetic sensitivity 0.4 mT Switching frequency 5,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Current consumption 10 mA Time delay before availability ≤ 100 ms Hysteresis 10 % … 20 % Reproducibility ≤ 1 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –40 °C … +75 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic Housing length 58 mm Thread length 42 mm Tightening torque, max. ≤ 40 Nm Protection class III Safety-related parameters MTTFD 2,238 years DCavg 0% TM (mission time) 20 years Classifications eCl@ss 5.0 27270104 eCl@ss 5.1.4 27270104 eCl@ss 6.0 27270104 eCl@ss 6.2 27270104 eCl@ss 7.0 27270104 eCl@ss 8.0 27270104 eCl@ss 8.1 27270104 eCl@ss 9.0 27270104 eCl@ss 10.0 27270104 eCl@ss 11.0 27270104 eCl@ss 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Top Sensing, 2 Wire, Conduit Coupler, Shielded – 802PR-LACJ2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Endüstriyel bağlantı kablosu – 872C-D3NP12-E2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Sensor, Inductive, Limit Switch Style, High – Selectable Output, 60-132V AC, AC, 13 mm Sensing Range, Side Sensing, 2 Wire, 1/2 in.-14 NPT Conduit, Shielded – 802PR-LABB2ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git Inductive Sensor, PTFE Coated, WFI, 12 mm Barrel Diameter, DC, 2 mm Sensing Distance, Normally Open Sourcing, Micro Quick Disconnect – 871Z-DW2NP12-D4ALLEN BRADLEYEndüktif Sensörler ₺1.800,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Housing Short-body Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 5 mm … 120 mm Safe sensing range Sa 97.2 mm Magnetic sensitivity 0.4 mT Switching frequency 5,000 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function NO Electrical wiring DC 3-wire Enclosure rating IP67 Items supplied Mounting nut, brass, nickel-plated (2x) Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V Current consumption 10 mA Time delay before availability ≤ 100 ms Hysteresis 10 % … 20 % Reproducibility ≤ 1 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm Ambient operating temperature –40 °C … +75 °C Housing material Metal, Nickel-plated brass Sensing face material Plastic Housing length 58 mm Thread length 42 mm Tightening torque, max. ≤ 40 Nm Protection class III Safety-related parameters MTTFD 2,238 years DCavg 0% TM (mission time) 20 years Classifications eCl@ss 5.0 27270104 eCl@ss 5.1.4 27270104 eCl@ss 6.0 27270104 eCl@ss 6.2 27270104 eCl@ss 7.0 27270104 eCl@ss 8.0 27270104 eCl@ss 8.1 27270104 eCl@ss 9.0 27270104 eCl@ss 10.0 27270104 eCl@ss 11.0 27270104 eCl@ss 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
