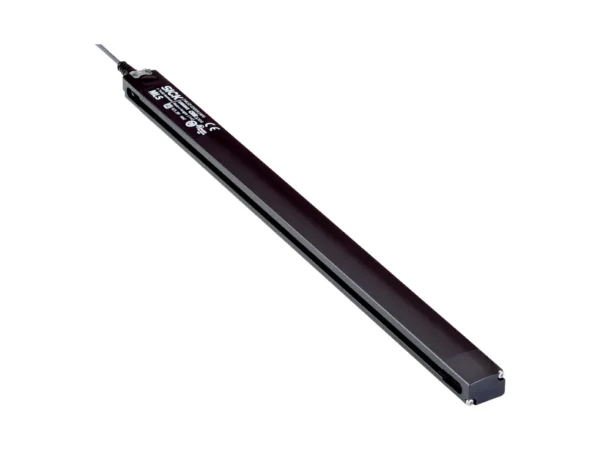

Home Diğer (Montaj / Aksesuar) MLSE-0400C2NUA – 1128847 🔍 MLSE-0400C2NUA – 1128847 ✉ Teklif Al Teklif Al Stok kodu: 1128847 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Detection range typ. 400 mm Operating height 10 mm … 70 mm Electrical wiring DC 4-wire Enclosure rating IP65, IP67, IP68 Mechanics/electronics Supply voltage 9 V DC … 30 V DC Terminal resistor No internal terminator Protection class III Power consumption 600 mW Resolution, typ. 1 mm Repeat accuracy, typ. 1 mm Update rate 100 Hz Teach-in ✔ Reverse polarity protection ✔ Short-circuit protection ✔ Ambient operating temperature –20 °C … +70 °C Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm EMC EN 61000-6-2, EN 61000-6-4 Connection type Cable, 4-wire, 3 m Connection type Detail Conductor cross section 0.08 mm² Cable diameter Ø 2.6 mm Bending radius With fixed installation > 5 x cable diameter Cable outlet Axial Material Housing Metal, Aluminum, plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters TM (mission time) 20 years Communication interface Communication interface Modbus Communication Interface detail RTU RS-485 Diagnosis Orientation Number of axis 3 Roll Euler angle measuring range ± 180° Pitch Euler angle measuring range ± 90° Yaw Euler angle measuring range ± 180° Resolution 0.02° Roll repeatability ± 1° Pitch repeatability ± 1° Yaw repeatability ± 1° Maximum rotation rate 2,000 °/s Quaternion w measuring range 0 … + 1 Quaternion x measuring range –1 … 1 Quaternion y measuring range –1 … 1 Quaternion z measuring range –1 … 1 Update rate 100 Hz Limit frequency 100 Hz Initialization time 640 ms Sampling rate 200 Hz Acceleration measuring range ± 16 g Rotation rate measuring range ± 2,000 °/s Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler IE-SFP/1250-ED SSBX-SM1310/PLUS-SC – 808-38229AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP+-10G-ELR-IT, 1310nm, SM, 20km – 40 8 – SFP-XSM-LCI-20KAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 1000BASE-LX, SM 10KM – SFP-1000LX-S-10KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git Ağ Modülleri IE-SFP/1250-ED, MM1310-LC – SFP-GMM-2KAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Detection range typ. 400 mm Operating height 10 mm … 70 mm Electrical wiring DC 4-wire Enclosure rating IP65, IP67, IP68 Mechanics/electronics Supply voltage 9 V DC … 30 V DC Terminal resistor No internal terminator Protection class III Power consumption 600 mW Resolution, typ. 1 mm Repeat accuracy, typ. 1 mm Update rate 100 Hz Teach-in ✔ Reverse polarity protection ✔ Short-circuit protection ✔ Ambient operating temperature –20 °C … +70 °C Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm EMC EN 61000-6-2, EN 61000-6-4 Connection type Cable, 4-wire, 3 m Connection type Detail Conductor cross section 0.08 mm² Cable diameter Ø 2.6 mm Bending radius With fixed installation > 5 x cable diameter Cable outlet Axial Material Housing Metal, Aluminum, plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters TM (mission time) 20 years Communication interface Communication interface Modbus Communication Interface detail RTU RS-485 Diagnosis Orientation Number of axis 3 Roll Euler angle measuring range ± 180° Pitch Euler angle measuring range ± 90° Yaw Euler angle measuring range ± 180° Resolution 0.02° Roll repeatability ± 1° Pitch repeatability ± 1° Yaw repeatability ± 1° Maximum rotation rate 2,000 °/s Quaternion w measuring range 0 … + 1 Quaternion x measuring range –1 … 1 Quaternion y measuring range –1 … 1 Quaternion z measuring range –1 … 1 Update rate 100 Hz Limit frequency 100 Hz Initialization time 640 ms Sampling rate 200 Hz Acceleration measuring range ± 16 g Rotation rate measuring range ± 2,000 °/s Classifications ECLASS 5.0 27270104 ECLASS 5.1.4 27270104 ECLASS 6.0 27270104 ECLASS 6.2 27270104 ECLASS 7.0 27270104 ECLASS 8.0 27270104 ECLASS 8.1 27270104 ECLASS 9.0 27270104 ECLASS 10.0 27270104 ECLASS 11.0 27270104 ECLASS 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
