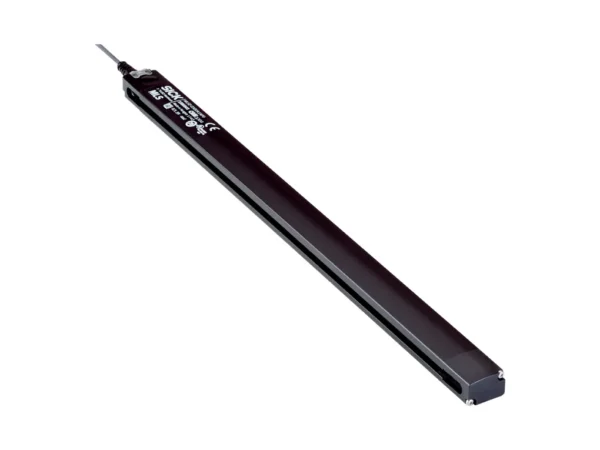

Home Diğer (Montaj / Aksesuar) MLSE-0200A2NQ0 – 1104468 🔍 MLSE-0200A2NQ0 – 1104468 ✉ Teklif Al Teklif Al Stok kodu: 1104468 Kategoriler: Diğer (Montaj / Aksesuar) Marka: SICK Açıklama Tecnichal data Features Detection range typ. 200 mm Operating height 10 mm … 70 mm Electrical wiring DC 4-wire Enclosure rating IP65 IP67 IP68 Mechanics/electronics Supply voltage 9 V DC … 30 V DC Terminal resistor No internal terminator Protection class III Power consumption 600 mW Resolution, typ. 1 mm Repeat accuracy, typ. 1 mm Update rate 100 Hz Teach-in ✔ Reverse polarity protection ✔ Short-circuit protection ✔ Ambient operating temperature –20 °C … +70 °C Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm EMC EN 61000-6-2 EN 61000-6-4 Connection type Cable with M12 male connector, 4-pin, 0.3 m Connection type Detail Conductor cross section 0.08 mm² Material Housing Metal Aluminum Plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters MTTFD 143 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface CANopen Diagnosis Orientation Number of axis 3 Roll Euler angle measuring range ± 180° Pitch Euler angle measuring range ± 90° Yaw Euler angle measuring range ± 180° Resolution 0.02° Roll repeatability ± 1° Pitch repeatability ± 1° Yaw repeatability ± 1° Maximum rotation rate 2,000 °/s Quaternion w measuring range 0 … + 1 Quaternion x measuring range –1 … 1 Quaternion y measuring range –1 … 1 Quaternion z measuring range –1 … 1 Update rate 100 Hz Limit frequency 100 Hz Initialization time 640 ms Sampling rate 200 Hz Acceleration measuring range ± 16 g Rotation rate measuring range ± 2,000 °/s Classifications eCl@ss 5.0 27270104 eCl@ss 5.1.4 27270104 eCl@ss 6.0 27270104 eCl@ss 6.2 27270104 eCl@ss 7.0 27270104 eCl@ss 8.0 27270104 eCl@ss 8.1 27270104 eCl@ss 9.0 27270104 eCl@ss 10.0 27270104 eCl@ss 11.0 27270104 eCl@ss 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230 İlgili ürünler IE-SFP/1250-ED SSBX-SM1310-LC – 808-38727AdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git SFP MODULE 100BASE-FX, SM 30KM – SFP-100FX-S-30KM-TAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git IE-SFP/1250-ED SSLX-SM1550/PLUS-SC – SFP-GSS-40KRXAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git 100Base-T RJ45 SFP Module w/Wide Temp – SFP-FTX-RJ45I-AEAdvantechDiğer (Montaj / Aksesuar) ₺850,00 Ürüne Git
Tecnichal data Features Detection range typ. 200 mm Operating height 10 mm … 70 mm Electrical wiring DC 4-wire Enclosure rating IP65 IP67 IP68 Mechanics/electronics Supply voltage 9 V DC … 30 V DC Terminal resistor No internal terminator Protection class III Power consumption 600 mW Resolution, typ. 1 mm Repeat accuracy, typ. 1 mm Update rate 100 Hz Teach-in ✔ Reverse polarity protection ✔ Short-circuit protection ✔ Ambient operating temperature –20 °C … +70 °C Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm EMC EN 61000-6-2 EN 61000-6-4 Connection type Cable with M12 male connector, 4-pin, 0.3 m Connection type Detail Conductor cross section 0.08 mm² Material Housing Metal Aluminum Plastic Cable PUR UL File No. NRKH.E181493 & NRKH7.E181493 Safety-related parameters MTTFD 143 years DCavg 0 % TM (mission time) 20 years Communication interface Communication interface CANopen Diagnosis Orientation Number of axis 3 Roll Euler angle measuring range ± 180° Pitch Euler angle measuring range ± 90° Yaw Euler angle measuring range ± 180° Resolution 0.02° Roll repeatability ± 1° Pitch repeatability ± 1° Yaw repeatability ± 1° Maximum rotation rate 2,000 °/s Quaternion w measuring range 0 … + 1 Quaternion x measuring range –1 … 1 Quaternion y measuring range –1 … 1 Quaternion z measuring range –1 … 1 Update rate 100 Hz Limit frequency 100 Hz Initialization time 640 ms Sampling rate 200 Hz Acceleration measuring range ± 16 g Rotation rate measuring range ± 2,000 °/s Classifications eCl@ss 5.0 27270104 eCl@ss 5.1.4 27270104 eCl@ss 6.0 27270104 eCl@ss 6.2 27270104 eCl@ss 7.0 27270104 eCl@ss 8.0 27270104 eCl@ss 8.1 27270104 eCl@ss 9.0 27270104 eCl@ss 10.0 27270104 eCl@ss 11.0 27270104 eCl@ss 12.0 27274301 ETIM 5.0 EC002544 ETIM 6.0 EC002544 ETIM 7.0 EC002544 ETIM 8.0 EC002544 UNSPSC 16.0901 39122230
